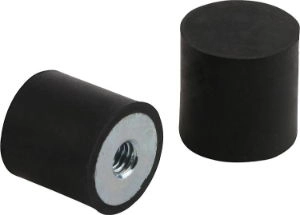

K0573 - Rubber-Metal Buffer Medium Hardness Size M3-M12

K0573 - Rubber-Metal Buffer Medium Hardness Size M3-M12

List view Grid view

Material:
Metal parts steel, grade 5.6.
Elastomer natural rubber, medium hardness, Shore 55A.
Version:
Steel galvanised.
Note:
Rubber buffers are widely-used construction elements for elastic mounting. They are used, among other things, as mountings for aggregates, motors, compressors, pumps and testing machinery.
Temperature range:
-30°C to +80°C.

Rubber Metal Buffer. Anti Vibration Mount. 50mm Diameter. 40mm High. M10 Thread. Steel.

Select your sizes

Choose Vertical Base Type

Choose Horizontal Base Type

Choose Stroke Length

Choose Type

Style

Item

Style

Clamp Type

Line drawing placeholder

Move drawing here

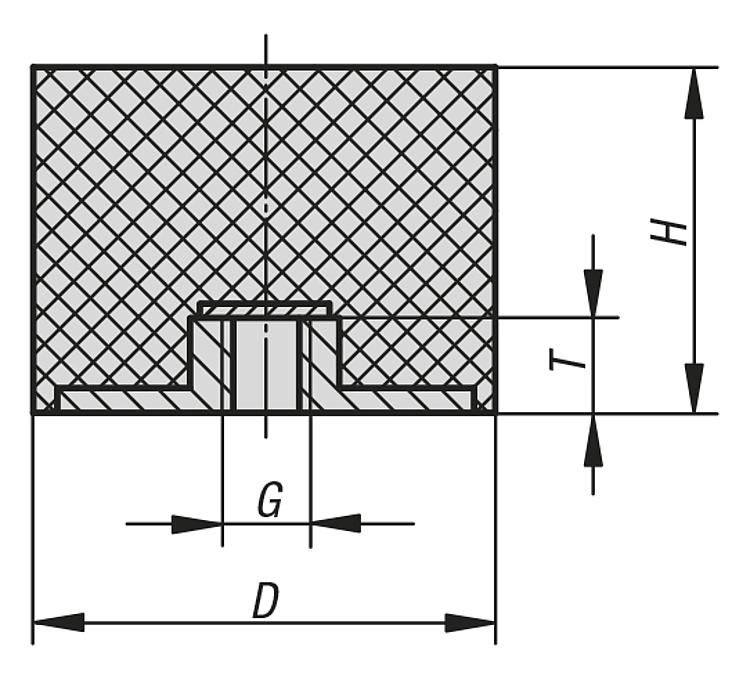

	D	G	H	Load , N	Shore grade	Spring stiffness N/mm	T	Price (Exc. Tax)	Stock
Filters
K0573.00800855 View product	8	M3	8	44	55A	88	3	£1.09	30
K0573.01501255 View product	15	M4	12	182	55A	165	4	£1.11	0
K0573.01501555 View product	15	M4	15	130	55A	100	4	£1.11	0
K0573.01502055 View product	15	M4	20	113	55A	75	4	£1.22	0
K0573.02001555 View product	20	M6	15	246	55A	145	6	£1.29	0
K0573.02002055 View product	20	M6	20	216	55A	94	6	£1.38	0
K0573.02002555 View product	20	M6	25	169	55A	65	6	£1.47	0
K0573.02501555 View product	25	M6	15	540	55A	270	6	£1.41	0
K0573.02502555 View product	25	M6	25	315	55A	105	6	£1.47	0
K0573.02503055 View product	25	M6	30	281	55A	85	6	£1.56	0
K0573.02504055 View product	25	M6	40	300	55A	75	6	£1.76	100
K0573.03001555 View product	30	M8	15	491	55A	545	8	£1.60	0
K0573.03002555 View product	30	M8	25	416	55A	160	8	£1.67	24
K0573.03003055 View product	30	M8	30	425	55A	125	8	£1.72	0
K0573.03004055 View product	30	M8	40	315	55A	85	8	£2.13	0
K0573.04002055 View product	40	M8	20	660	55A	550	8	£2.74	0
K0573.04002555 View product	40	M8	25	1000	55A	500	8	£2.82	0
K0573.04003055 View product	40	M8	30	870	55A	300	8	£2.89	0
K0573.04004055 View product	40	M8	40	1040	55A	260	8	£3.03	0
K0573.05002055 View product	50	M10	20	860	55A	860	10	£2.84	26
K0573.05002555 View product	50	M10	25	1400	55A	700	10	£2.89	0
K0573.05003055 View product	50	M10	30	1575	55A	450	10	£3.03	0
K0573.05004055 View product	50	M10	40	1400	55A	350	10	£3.32	0
K0573.05005055 View product	50	M10	50	850	55A	170	10	£3.79	46
K0573.06003055 View product	60	M10	30	1400	55A	700	10	£5.45	0
K0573.06004055 View product	60	M10	40	1600	55A	400	10	£5.71	0
K0573.06005055 View product	60	M10	50	1200	55A	240	10	£6.03	0
K0573.07004255 View product	70	M10	42	2600	55A	520	10	£6.75	0
K0573.07004555 View product	70	M10	45	3060	55A	680	10	£6.86	0
K0573.07502555 View product	75	M12	25	1816	55A	1211	12	£6.61	0
K0573.07503055 View product	75	M12	30	2289	55A	1090	12	£7.06	0
K0573.07504055 View product	75	M12	40	2000	55A	500	12	£7.71	0
K0573.07505055 View product	75	M12	50	2750	55A	550	12	£7.92	0
