Ball Transfer Units

Ball Transfer Units

List view Grid view

Select your sizes

Choose Vertical Base Type

Choose Horizontal Base Type

Choose Stroke Length

Choose Type

Style

Item

Style

Clamp Type

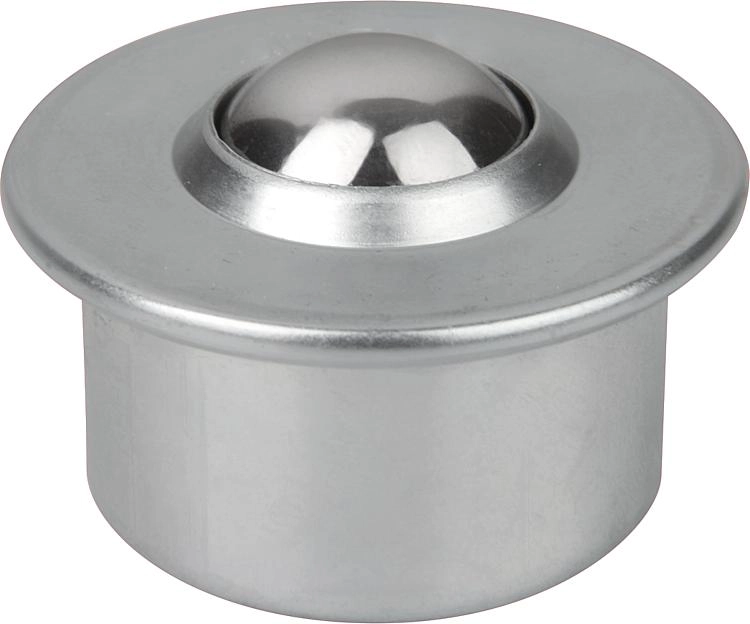

K0760 - Ball Rollers With Steel Housing

K0761 - Ball Rollers With Steel Housing & Plastic Ball

K0762 - Ball Rollers Undersprung

K0763 - Ball Rollers With Solid Steel Housing

K0764 - Ball Rollers With Fastening Holes No Housing

K0765 - Ball Rollers With Spring Clips

K0766 - Tolerance Rings

Line drawing placeholder

Move drawing here

	Assembly dimensions D1	Assembly dimensions H	D	D1	DK	End tension (N)	Form	H	H1	H2	H3	Kind of fastening	Load rating C (N)	No. of fastening holes	Pre-tension (N)	Receiver-Ø DB	S	Tolerance ring suitable for ball rollers	Tol. for pre and end tension (%)	Price (Exc. Tax)	Stock
Filters
K0766.024 View product	25,7 +0,2	7	24	--	--	--	--	--	--	--	--	--	--	--	--	--	--	95150-.15 / 95152-.15	--	£1.14	0
K0761.115 View product	--	--	24±0,065	31	15,8	--	B	21	9,5	2,8	--	--	100	--	--	--	--	--	--	£6.27	0
K0765.115 View product	--	--	24±0,1	31	15,8	--	B	21	9,5	2,8	--	--	600	--	--	25 +0,5	2	--	--	£12.40	0
K0764.122 View product	--	--	33-0,2	45	22	--	B	27,7	9,8±0,2	5	--	--	1200	3	--	--	--	--	--	£13.14	0
K0760.115 View product	--	--	24±0,2	31	15,8	--	B	21	9,5	2,8	6,3	--	600	--	--	--	--	--	--	£5.83	9
K0763.160 View product	--	--	100±0,1	117	57,1	--	B	77,5	29,5	5	--	press-in	15000	--	--	--	--	--	--	£314.07	0
K0762.122 View product	--	--	39	50	22,2	860	B	51,5	18,5	14	--	--	860	--	730	--	--	--	+25 / -7,5	£49.45	0
K0766.036 View product	37,7 +0,2	12	36	--	--	--	--	--	--	--	--	--	--	--	--	--	--	95150-.22 / 95152-.22	--	£1.68	0
K0761.122 View product	--	--	36±0,080	45	22,2	--	B	30	9,6	2,8	--	--	200	--	--	--	--	--	--	£9.06	0
K0765.122 View product	--	--	36±0,1	45	22,2	--	B	30	9,8	2,8	--	--	1600	--	--	37 +0,5	3	--	--	£16.22	0
K0764.222 View product	--	--	33-0,2	45	22	--	C	27,7	9,8±0,2	5	--	--	900	3	--	--	--	--	--	£27.57	0
K0760.122 View product	--	--	36±0,2	45	22,2	--	B	30	9,8	2,8	5,5	--	1600	--	--	--	--	--	--	£9.31	0
K0763.260 View product	--	--	100±0,1	117	57,1	--	C	77,5	29,5	5	--	press-in	10000	--	--	--	--	--	--	£407.12	0
K0762.130 View product	--	--	48,2	62	30	1600	B	70	24,4	17,7	--	--	1600	--	1350	--	--	--	+15 / -7,5	£73.12	0
K0766.045 View product	46,7 +0,2	12	45	--	--	--	--	--	--	--	--	--	--	--	--	--	--	95150-.30 / 95152-.30	--	£1.93	0
K0761.130 View product	--	--	45±0,080	55	30	--	B	37	13,6	4	--	--	250	--	--	--	--	--	--	£41.19	0
K0765.130 View product	--	--	45±0,1	55	30	--	B	37	13,8	4	--	--	3000	--	--	46 +0,5	6	--	--	£31.12	0
K0760.130 View product	--	--	45±0,2	55	30	--	B	37	13,8	4	8,3	--	3000	--	--	--	--	--	--	£17.25	0
K0762.145 View product	--	--	66,4	85	45	2770	B	100,5	35,6	24,2	--	--	2770	--	2280	--	--	--	+15 / -7,5	£193.52	0
K0766.062 View product	64,1 +0,3	15	62	--	--	--	--	--	--	--	--	--	--	--	--	--	--	95150-.45	--	£2.30	0
K0761.215 View product	--	--	24±0,065	31	15,8	--	C	21	9,5	2,8	--	--	100	--	--	--	--	--	--	£13.77	0
K0765.215 View product	--	--	24±0,1	31	15,8	--	C	21	9,5	2,8	--	--	600	--	--	25 +0,5	2	--	--	£20.06	0
K0760.145 View product	--	--	62±0,2	75	44,5	--	B	53,5	19	4	10	--	6100	--	--	--	--	--	--	£50.55	0
K0762.222 View product	--	--	39	50	22,2	860	C	51,5	18,5	14	--	--	860	--	730	--	--	--	+25 / -7,5	£56.20	0
K0761.222 View product	--	--	36±0,080	45	22,2	--	C	30	9,6	2,8	--	--	200	--	--	--	--	--	--	£21.09	0
K0766.100 View product	102,5 +0,35	19	100	--	--	--	--	--	--	--	--	--	--	--	--	--	--	95156-.60	--	£6.27	0
K0765.222 View product	--	--	36±0,1	45	22,2	--	C	30	9,8	2,8	--	--	1600	--	--	37 +0,5	3	--	--	£31.23	0
K0760.215 View product	--	--	24±0,2	31	15,8	--	C	21	9,5	2,8	6,3	--	600	--	--	--	--	--	--	£11.93	0
K0762.230 View product	--	--	48,2	62	30	1600	C	70	24,4	17,7	--	--	1600	--	1350	--	--	--	+15 / -7,5	£90.83	0
K0761.230 View product	--	--	45±0,080	55	30	--	C	37	13,6	4	--	--	250	--	--	--	--	--	--	£49.92	0
K0765.230 View product	--	--	45±0,1	55	30	--	C	37	13,8	4	--	--	3000	--	--	46 +0,5	6	--	--	£48.21	0
K0760.222 View product	--	--	36±0,2	45	22,2	--	C	30	9,8	2,8	5,5	--	1600	--	--	--	--	--	--	£16.85	0
K0762.245 View product	--	--	66,4	85	45	2770	C	100,5	35,6	24,2	--	--	2770	--	2280	--	--	--	+15 / -7,5	£237.68	0
K0760.230 View product	--	--	45±0,2	55	30	--	C	37	13,8	4	8,3	--	3000	--	--	--	--	--	--	£28.20	0
K0760.245 View product	--	--	62±0,2	75	44,5	--	C	53,5	19	4	10	--	6100	--	--	--	--	--	--	£95.07	0
K0760.315 View product	--	--	24±0,2	31	15,8	--	D	21	9,5	2,8	6,3	--	380	--	--	--	--	--	--	£14.84	0
K0760.322 View product	--	--	36±0,2	45	22,2	--	D	30	9,8	2,8	5,5	--	1000	--	--	--	--	--	--	£22.09	0
K0760.330 View product	--	--	45±0,2	55	30	--	D	37	13,8	4	8,3	--	2000	--	--	--	--	--	--	£50.55	0

Showing products per page

{
    "id": "1474",
    "layout_id": "",
    "parent_id": "105",
    "name": "Ball Transfer Units",
    "slug": "ball-transfer-units",
    "meta_title": "Ball Transfer Units",
    "meta_description": "",
    "long_description": "",
    "short_description": "",
    "active": "1",
    "visible": "1",
    "show_products": "1",
    "order_num": "934",
    "default_sortby": "default",
    "deleted": "0",
    "created": "2025-07-23 10:08:34",
    "updated": "",
    "images": [
        {
            "url": "https:\/\/images.shopcdn.co.uk\/1d\/48\/1d4803ae9252c06069fc48bf914bebb3\/1024x1024\/webp\/fit?quality=100&amp;compression=100",
            "contain_url": "https:\/\/images.shopcdn.co.uk\/1d\/48\/1d4803ae9252c06069fc48bf914bebb3\/256x256\/webp\/fit?quality=100&amp;compression=100",
            "crop_url": "https:\/\/images.shopcdn.co.uk\/1d\/48\/1d4803ae9252c06069fc48bf914bebb3\/256x256\/webp\/fit?quality=100&amp;compression=100",
            "original_url": "https:\/\/images.shopcdn.co.uk\/1d\/48\/1d4803ae9252c06069fc48bf914bebb3\/750x624\/webp\/resize?quality=100&amp;compression=100"
        }
    ],
    "is_parent_category": false,
    "is_product_group": false,
    "parent_category_title": "Standard Parts",
    "parent_category_url": "standard-parts",
    "path": "Standard Parts > Ball Transfer Units",
    "path_list": [
        "Standard Parts",
        "Ball Transfer Units"
    ],
    "selectedTags": [],
    "availableProducts": {
        "key": "available",
        "doc_count": 38,
        "stockLevel": {
            "untracked": 38,
            "in_stock": 0
        }
    },
    "unavailableProducts": {
        "key": "unavailable",
        "doc_count": 0
    },
    "product_attributes": [
        "Assembly dimensions  D1",
        "Assembly dimensions \nH",
        "D",
        "D1",
        "DK",
        "End tension\n(N)",
        "Form",
        "H",
        "H1",
        "H2",
        "H3",
        "Kind of fastening",
        "Load\nrating C\n(N)",
        "No. of  fastening holes",
        "Pre-tension\n(N)",
        "Receiver-\u00d8  DB",
        "S",
        "Tolerance ring suitable for ball rollers",
        "Tol. for\npre and end \ntension (%)"
    ]
}

Ball Transfer Units

K0760 - Ball Rollers With Steel Housing

K0761 - Ball Rollers With Steel Housing & Plastic Ball

K0762 - Ball Rollers Undersprung

K0763 - Ball Rollers With Solid Steel Housing

K0764 - Ball Rollers With Fastening Holes No Housing

K0765 - Ball Rollers With Spring Clips

K0766 - Tolerance Rings

£1.14

£6.27

£12.40

£13.14

£5.83

£314.07

£49.45

£1.68

£9.06

£16.22

£27.57

£9.31

£407.12

£73.12

£1.93

£41.19

£31.12

£17.25

£193.52

£2.30

£13.77

£20.06

£50.55

£56.20

£21.09

£6.27

£31.23

£11.93

£90.83

£49.92

£48.21

£16.85

£237.68

£28.20

£95.07

£14.84

£22.09

£50.55

Tolerance Ring. 24mm Diameter. Steel.

Ball Transfer Unit. 15.8mm Ball Diameter. Body Steel. Balls Polyamide.

Ball Transfer Unit With Fastening Element. 15.8mm Ball Diameter. Body Steel. Balls Steel.

Ball Transfer Unit. 22mm Ball Diameter. Body Steel. Balls Steel.

Ball Transfer Unit. 15.8mm Ball Diameter. Body Steel. Balls Steel.

Ball Transfer Unit Housing. 57.1mm Ball Diameter. Body Steel. Balls Steel.

Ball Transfer Unit With Spring. 22.2mm Ball Diameter. Body Steel. Balls Steel.

Tolerance Ring. 36mm Diameter. Steel.

Ball Transfer Unit. 22.2mm Ball Diameter. Body Steel. Balls Polyamide.

Ball Transfer Unit With Fastening Element. 22.2mm Ball Diameter. Body Steel. Balls Steel.

Ball Transfer Unit. 22mm Ball Diameter. Body Steel. Balls Stainless Steel.

Ball Transfer Unit. 22.2mm Ball Diameter. Body Steel. Balls Steel.

Ball Transfer Unit Housing. 57.1mm Ball Diameter. Body Steel. Balls Stainless Steel.

Ball Transfer Unit With Spring. 30mm Ball Diameter. Body Steel. Balls Steel.

Tolerance Ring. 45mm Diameter. Steel.

Ball Transfer Unit. 30mm Ball Diameter. Body Steel. Balls Polyamide.

Ball Transfer Unit With Fastening Element. 30mm Ball Diameter. Body Steel. Balls Steel.

Ball Transfer Unit. 30mm Ball Diameter. Body Steel. Balls Steel.

Ball Transfer Unit With Spring. 45mm Ball Diameter. Body Steel. Balls Steel.

Tolerance Ring. 62mm Diameter. Steel.

Ball Transfer Unit. 15.8mm Ball Diameter. Body Stainless Steel. Balls Polyamide.

Ball Transfer Unit With Fastening Element. 15.8mm Ball Diameter. Body Steel. Balls Stainless Steel.

Ball Transfer Unit. 44.5mm Ball Diameter. Body Steel. Balls Steel.

Ball Transfer Unit With Spring. 22.2mm Ball Diameter. Body Steel. Balls Stainless Steel.

Ball Transfer Unit. 22.2mm Ball Diameter. Body Stainless Steel. Balls Polyamide.

Tolerance Ring. 100mm Diameter. Steel.

Ball Transfer Unit With Fastening Element. 22.2mm Ball Diameter. Body Steel. Balls Stainless Steel.

Ball Transfer Unit. 15.8mm Ball Diameter. Body Steel. Balls Stainless Steel.

Ball Transfer Unit With Spring. 30mm Ball Diameter. Body Steel. Balls Stainless Steel.

Ball Transfer Unit. 30mm Ball Diameter. Body Stainless Steel. Balls Polyamide.

Ball Transfer Unit With Fastening Element. 30mm Ball Diameter. Body Steel. Balls Stainless Steel.

Ball Transfer Unit. 22.2mm Ball Diameter. Body Steel. Balls Stainless Steel.

Ball Transfer Unit With Spring. 45mm Ball Diameter. Body Steel. Balls Stainless Steel.

Ball Transfer Unit. 30mm Ball Diameter. Body Steel. Balls Stainless Steel.
