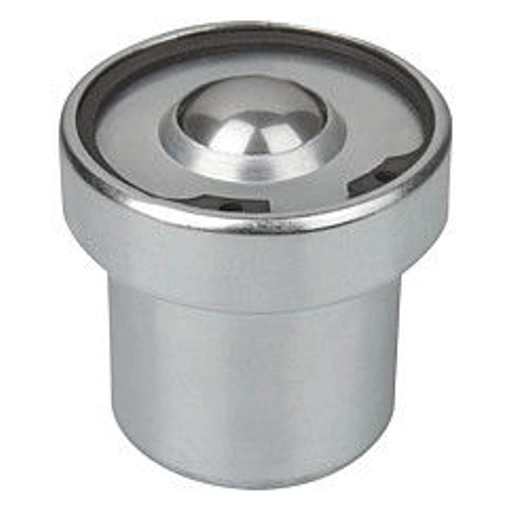

Ball Transfer Unit With Spring. 45mm Ball Diameter. Body Steel. Balls Stainless Steel.

Item Code: K0762.245

Ball Transfer Unit With Spring. 45mm Ball Diameter. Body Steel. Balls Stainless Steel.

Item Code: K0762.245

Ball Transfer Unit With Spring. 45mm Ball Diameter. Body Steel. Balls Stainless Steel.

Material, surface finish:
Galvanized steel Note:
Undersprung ball rollers allow for even distribution of loads for goods with uneven surfaces.

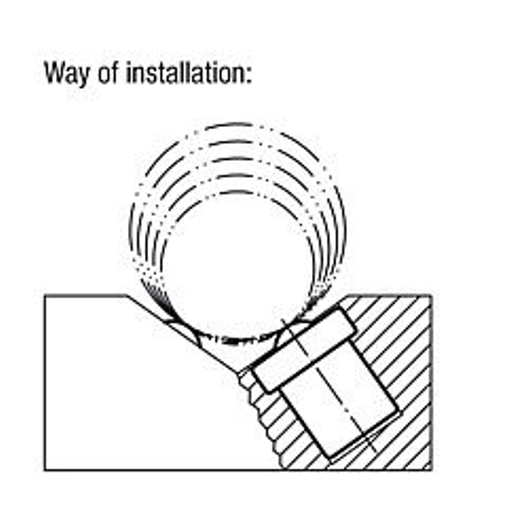

When used in machines such as punch presses and bend form machines the ball rollers spring back up after the forming process and the finished article can be rolled off. By the "End tension (N)" the ball has completely receded into the housing.

Quick Links

Dispatch by 09/06/25

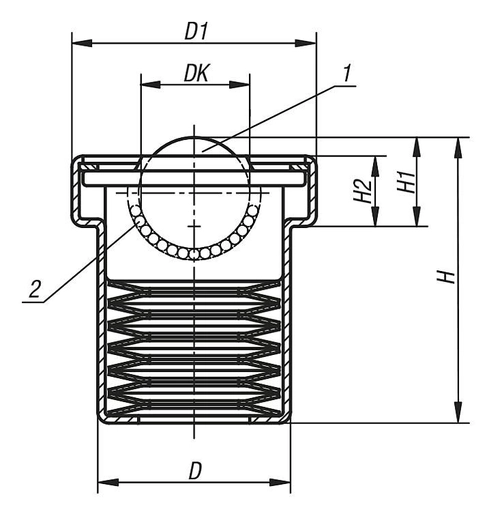

Form: C

D: 66,4

D1: 85

H: 100,5

H1: 35,6

H2: 24,2

DK: 45

Load rating C (N): 2770

End tension (N): 2770

Tol. for pre and end tension (%): +15 / -7,5

Pre-tension (N): 2280

£231.11 ea. Excl VAT £277.33 ea. Inc VAT

This product is currently out of stock. Your item will be shipped when it is back in stock.

Qty

Product Wishlist & Compare Placeholder

Qty	Price per item	Savings
5 +	£217.24	6%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify

modal placeholder

Quick Links

Description

Product Dimensions

Form	C
D	66,4
D1	85
H	100,5
H1	35,6
H2	24,2
DK	45
Load rating C (N)	2770
End tension (N)	2770
Tol. for pre and end tension (%)	+15 / -7,5
Pre-tension (N)	2280

Downloads

STP

Ball Transfer Unit With Spring. 45mm Ball Diameter. Body Steel. Balls Stainless Steel.

Ball Transfer Unit With Spring. 45mm Ball Diameter. Body Steel. Balls Stainless Steel.
