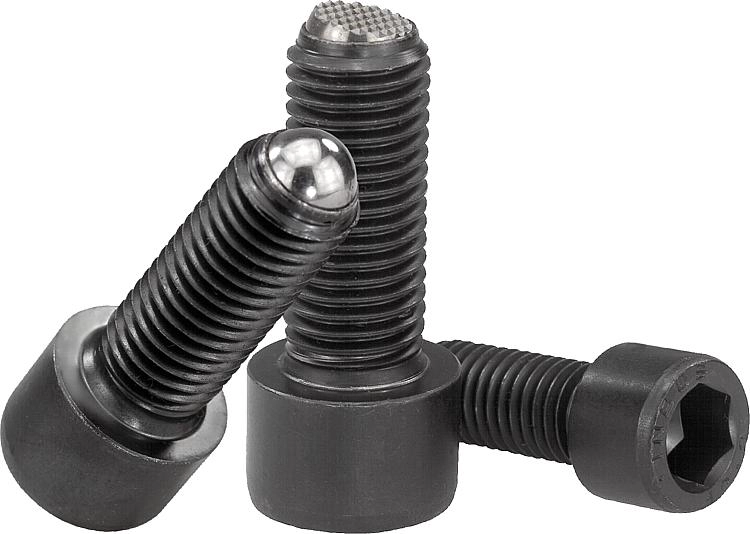

K0380 Ball Pressure Screws Hex Head Size M6-M24

K0380 Ball Pressure Screws Hex Head Size M6-M24

List view Grid view

Select your sizes

Choose Vertical Base Type

Choose Horizontal Base Type

Choose Stroke Length

Choose Type

Style

Item

Style

Clamp Type

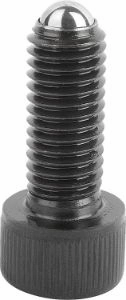

K0380 Ball Pressure Screws Form A Full Ball Size M6-M24

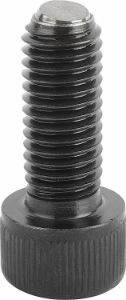

K0380 Ball Pressure Screws Form B Flattened Ball Size M6-M24

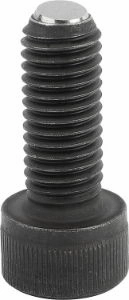

K0380 Ball Pressure Screws Form BV Non Rotating Size M8-M16

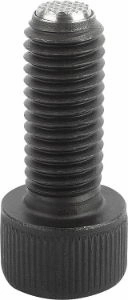

K0380 Ball Pressure Screws Form F Diamond Grip Size M10-M16

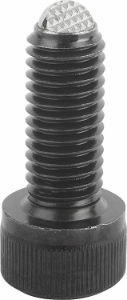

K0380 Ball Pressure Screws Form FV Size M10-M16

Line drawing placeholder

Move drawing here

	D	D1	D3	DK	Form	L	L1	L2	Load rating max. kN (static load only)	Material mount surface / support surface	Mount surface / support surface	SW	Price (Exc. Tax)	Stock
Filters
K0380.20620 View product	M6	3,2	10	4	B	20	3	6	9	Steel	plane	5	£5.48	0
K0380.51025 View product	M10	6	16	7	FV	25	4,5	10	12	Steel	serrated	8	£35.59	0
K0380.40820 View product	M8	4,5	13	5,5	BV	20	3,5	8	9	Steel	plane	6	£17.10	0
K0380.10410 View product	M4	--	7	2,5	A	9,9	2,1	4	3,5	Steel	Round	3	£3.83	0
K0380.31025 View product	M10	6	16	7	F	25	4,5	10	20	Steel	serrated	8	£28.98	0
K0380.20630 View product	M6	3,2	10	4	B	30	3	6	9	Steel	plane	5	£5.53	0
K0380.51040 View product	M10	6	16	7	FV	40	4,5	10	12	Steel	serrated	8	£35.82	0
K0380.40835 View product	M8	4,5	13	5,5	BV	35	3,5	8	9	Steel	plane	6	£17.19	0
K0380.10416 View product	M4	--	7	2,5	A	15,9	2,1	4	3,5	Steel	Round	3	£3.83	0
K0380.31040 View product	M10	6	16	7	F	40	4,5	10	20	Steel	serrated	8	£28.98	0
K0380.20640 View product	M6	3,2	10	4	B	40	16	6	9	Steel	plane	5	£5.65	0
K0380.51060 View product	M10	6	16	7	FV	60	28	10	12	Steel	serrated	8	£35.82	0
K0380.40850 View product	M8	4,5	13	5,5	BV	50	22	8	9	Steel	plane	6	£17.44	0
K0380.10420 View product	M4	--	7	2,5	A	19,9	2,1	4	3,5	Steel	Round	3	£3.83	0
K0380.31060 View product	M10	6	16	7	F	60	28	10	20	Steel	serrated	8	£29.27	0
K0380.20820 View product	M8	4,5	13	5,5	B	20	3,5	8	15	Steel	plane	6	£6.82	0
K0380.51230 View product	M12	7,2	18	8,5	FV	30	5	12	18	Steel	serrated	10	£38.88	0
K0380.41025 View product	M10	6	16	7	BV	25	4,5	10	12	Steel	plane	8	£18.59	0
K0380.10512 View product	M5	--	8,5	3	A	12,1	2,4	5	4,5	Steel	Round	4	£3.93	0
K0380.31230 View product	M12	7,2	18	8,5	F	30	5	12	30	Steel	serrated	10	£31.78	6
K0380.20835 View product	M8	4,5	13	5,5	B	35	3,5	8	15	Steel	plane	6	£6.98	0
K0380.51250 View product	M12	7,2	18	8,5	FV	50	5	12	18	Steel	serrated	10	£39.17	0
K0380.41040 View product	M10	6	16	7	BV	40	4,5	10	12	Steel	plane	8	£18.70	0
K0380.10516 View product	M5	--	8,5	3	A	16,1	2,4	5	4,5	Steel	Round	4	£3.93	0
K0380.31250 View product	M12	7,2	18	8,5	F	50	5	12	30	Steel	serrated	10	£32.04	0
K0380.51280 View product	M12	7,2	18	8,5	FV	80	44	12	18	Steel	serrated	10	£39.68	0
K0380.41060 View product	M10	6	16	7	BV	60	28	10	12	Steel	plane	8	£18.87	0
K0380.10520 View product	M5	--	8,5	3	A	20,1	2,4	5	4,5	Steel	Round	4	£3.93	0
K0380.31280 View product	M12	7,2	18	8,5	F	80	44	12	30	Steel	serrated	10	£32.54	0
K0380.20850 View product	M8	4,5	13	5,5	B	50	22	8	15	Steel	plane	6	£7.23	9
K0380.51640 View product	M16	10,7	24	12	FV	40	6	16	36	Steel	serrated	14	£45.29	0
K0380.41230 View product	M12	7,2	18	8,5	BV	30	5	12	18	Steel	plane	10	£21.70	0
K0380.10620 View product	M6	--	10	4	A	20,8	3	6	9	Steel	Round	5	£3.95	11
K0380.31640 View product	M16	10,7	24	12	F	40	6	16	60	Steel	serrated	14	£37.39	0
K0380.21025 View product	M10	6	16	7	B	25	4,5	10	20	Steel	plane	8	£7.87	0
K0380.51660 View product	M16	10,7	24	12	FV	60	6	16	36	Steel	serrated	14	£45.78	0
K0380.41250 View product	M12	7,2	18	8,5	BV	50	5	12	18	Steel	plane	10	£21.89	0
K0380.31660 View product	M16	10,7	24	12	F	60	6	16	60	Steel	serrated	14	£37.87	0
K0380.21040 View product	M10	6	16	7	B	40	4,5	10	20	Steel	plane	8	£8.23	0
K0380.10630 View product	M6	--	10	4	A	30,8	3	6	9	Steel	Round	5	£4.02	0
K0380.51680 View product	M16	10,7	24	12	FV	80	36	16	36	Steel	serrated	14	£46.77	0
K0380.41280 View product	M12	7,2	18	8,5	BV	80	44	12	18	Steel	plane	10	£22.38	0
K0380.31680 View product	M16	10,7	24	12	F	80	36	16	60	Steel	serrated	14	£39.44	0
K0380.21060 View product	M10	6	16	7	B	60	28	10	20	Steel	plane	8	£8.55	0
K0380.10640 View product	M6	--	10	4	A	40,8	16	6	9	Steel	Round	5	£4.07	26
K0380.21230 View product	M12	7,2	18	8,5	B	30	5	12	30	Steel	plane	10	£11.08	0
K0380.10820 View product	M8	--	13	5,5	A	21,2	3,5	8	15	Steel	Round	6	£4.98	9
K0380.41640 View product	M16	10,7	24	12	BV	40	6	16	36	Steel	plane	14	£27.44	0
