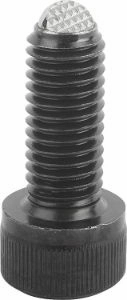

K0380 Ball Pressure Screws Form F Diamond Grip Size M10-M16

K0380 Ball Pressure Screws Form F Diamond Grip Size M10-M16

Choose Vertical Base Type

Choose Horizontal Base Type

Choose Stroke Length

Choose Type

Style

Item

Style

Clamp Type

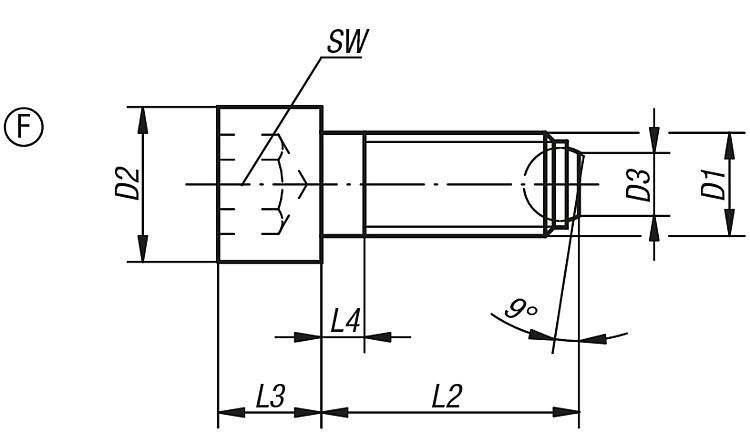

Line drawing placeholder

Move drawing here

	D	D1	D3	DK	Form	L	L1	L2	Load rating max. kN (static load only)	Material mount surface / support surface	Mount surface / support surface	SW	Price (Exc. Tax)	Stock
Filters
K0380.31025 View product	M10	6	16	7	F	25	4,5	10	20	Steel	serrated	8	£28.98	0
K0380.31040 View product	M10	6	16	7	F	40	4,5	10	20	Steel	serrated	8	£28.98	0
K0380.31060 View product	M10	6	16	7	F	60	28	10	20	Steel	serrated	8	£29.27	0
K0380.31230 View product	M12	7,2	18	8,5	F	30	5	12	30	Steel	serrated	10	£31.78	6
K0380.31250 View product	M12	7,2	18	8,5	F	50	5	12	30	Steel	serrated	10	£32.04	0
K0380.31280 View product	M12	7,2	18	8,5	F	80	44	12	30	Steel	serrated	10	£32.54	0
K0380.31640 View product	M16	10,7	24	12	F	40	6	16	60	Steel	serrated	14	£37.39	0
K0380.31660 View product	M16	10,7	24	12	F	60	6	16	60	Steel	serrated	14	£37.87	0
K0380.31680 View product	M16	10,7	24	12	F	80	36	16	60	Steel	serrated	14	£39.44	0

Showing products per page

Sort by

Dispatch by 28/10/25

Item Code: K0380.31025

BALL-END THRUST SCREW WITH HEAD, FORM:F BALL FLATTENED A. SERRATED, M10, L=25, CARBON STEEL, COMP:BALL-BEARING STEEL

£28.98 Excl VAT £34.78 Inc VAT

Price breaks available

Text

Qty

Dispatch by 28/10/25

Item Code: K0380.31040

BALL-END THRUST SCREW WITH HEAD, FORM:F BALL FLATTENED A. SERRATED, M10, L=40, CARBON STEEL, COMP:BALL-BEARING STEEL

£28.98 Excl VAT £34.78 Inc VAT

Price breaks available

Text

Qty

Dispatch by 28/10/25

Item Code: K0380.31060

BALL-END THRUST SCREW WITH HEAD, FORM:F BALL FLATTENED A. SERRATED, M10, L=60, CARBON STEEL, COMP:BALL-BEARING STEEL

£29.27 Excl VAT £35.12 Inc VAT

Price breaks available

Text

Qty

6 in stock

Item Code: K0380.31230

BALL-END THRUST SCREW WITH HEAD, FORM:F BALL FLATTENED A. SERRATED, M12, L=30, CARBON STEEL, COMP:BALL-BEARING STEEL

£31.78 Excl VAT £38.14 Inc VAT

Price breaks available

Text

Qty

Dispatch by 28/10/25

Item Code: K0380.31250

BALL-END THRUST SCREW WITH HEAD, FORM:F BALL FLATTENED A. SERRATED, M12, L=50, CARBON STEEL, COMP:BALL-BEARING STEEL

£32.04 Excl VAT £38.45 Inc VAT

Price breaks available

Text

Qty

Dispatch by 28/10/25

Item Code: K0380.31280

BALL-END THRUST SCREW WITH HEAD, FORM:F BALL FLATTENED A. SERRATED, M12, L=80, CARBON STEEL, COMP:BALL-BEARING STEEL

£32.54 Excl VAT £39.05 Inc VAT

Price breaks available

Text

Qty

Dispatch by 28/10/25

Item Code: K0380.31640

BALL-END THRUST SCREW WITH HEAD, FORM:F BALL FLATTENED A. SERRATED, M16, L=40, CARBON STEEL, COMP:BALL-BEARING STEEL

£37.39 Excl VAT £44.87 Inc VAT

Price breaks available

Text

Qty

Dispatch by 28/10/25

Item Code: K0380.31660

BALL-END THRUST SCREW WITH HEAD, FORM:F BALL FLATTENED A. SERRATED, M16, L=60, CARBON STEEL, COMP:BALL-BEARING STEEL

£37.87 Excl VAT £45.44 Inc VAT

Price breaks available

Text

Qty

Dispatch by 28/10/25

Item Code: K0380.31680

BALL-END THRUST SCREW WITH HEAD, FORM:F BALL FLATTENED A. SERRATED, M16, L=80, CARBON STEEL, COMP:BALL-BEARING STEEL

{
