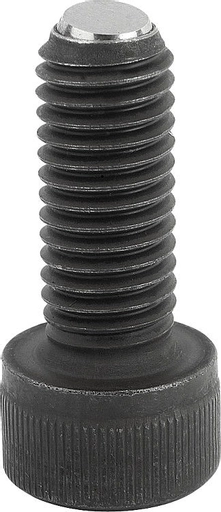

BALL-END THRUST SCREW WITH HEAD, FORM:BV BALL FLATTENED/ROTATION LO, M08, L=20, CARBON STEEL,

Item Code: K0380.40820

BALL-END THRUST SCREW WITH HEAD, FORM:BV BALL FLATTENED/ROTATION LO, M08, L=20, CARBON STEEL,

Item Code: K0380.40820

BALL-END THRUST SCREW WITH HEAD, FORM:BV BALL FLATTENED/ROTATION LO, M08, L=20, CARBON STEEL,

Material:
Screw in tempered steel, ball in ball-bearing steel Surface finish:
Black screw, quality class 10.9;
ball hardened, natural finish Note:

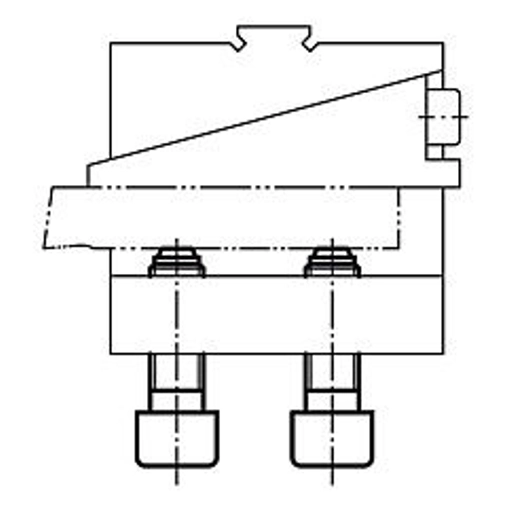

Form A with full ball is used when a clean, polished pressure surface is required. Surfaces which are not plane and parallel can be firmly clamped or supported with form B with flattened ball because the movable ball can adapt itself up to 9°.

Quick Links

Dispatch by 06/08/25

D: M8

D1: 4,5

D3: 13

DK: 5,5

Form: BV

L: 20

L1: 3,5

L2: 8

Load rating max. kN (static load only): 9

Material mount surface / support surface: Steel

Mount surface / support surface: plane

SW: 6

£16.63 ea. Excl VAT £19.96 ea. Inc VAT

This product is currently out of stock. Your item will be shipped when it is back in stock.

Qty

Product Wishlist & Compare Placeholder

Qty	Price per item	Savings
15 +	£13.64	18%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify

modal placeholder

Quick Links

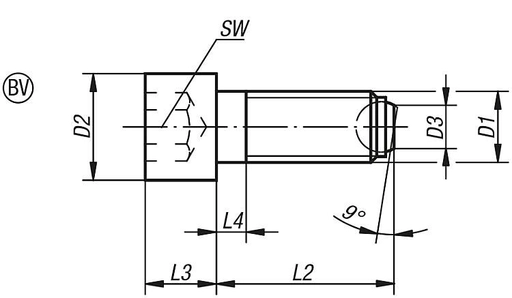

Product Dimensions

D	M8
D1	4,5
D3	13
DK	5,5
Form	BV
L	20
L1	3,5
L2	8
Load rating max. kN (static load only)	9
Material mount surface / support surface	Steel
Mount surface / support surface	plane
SW	6

CAD Download

BALL-END THRUST SCREW WITH HEAD, FORM:BV BALL FLATTENED/ROTATION LO, M08, L=20, CARBON STEEL,

BALL-END THRUST SCREW WITH HEAD, FORM:BV BALL FLATTENED/ROTATION LO, M08, L=20, CARBON STEEL,
