BALL-END THRUST SCREW WITH HEAD, FORM:A WITH FULL BALL, M08, L=21,2, CARBON STEEL, COMP:BALL-BEARING STEEL

Item Code: K0380.10820

BALL-END THRUST SCREW WITH HEAD, FORM:A WITH FULL BALL, M08, L=21,2, CARBON STEEL, COMP:BALL-BEARING STEEL

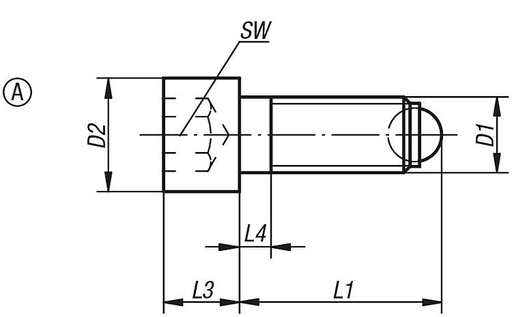

Ball-End-Thrust-screw-Drawing_1200x1200.jpg?

Item Code: K0380.10820

BALL-END THRUST SCREW WITH HEAD, FORM:A WITH FULL BALL, M08, L=21,2, CARBON STEEL, COMP:BALL-BEARING STEEL

Material:
Screw in tempered steel, ball in ball-bearing steel Surface finish:
Black screw, quality class 10.9;
ball hardened, natural finish Note:
Form A with full ball is used when a clean, polished pressure surface is required. Surfaces which are not plane and parallel can be firmly clamped or supported with form B with flattened ball because the movable ball can adapt itself up to 9°.

Quick Links

9 in stock

D: M8

D3: 13

DK: 5.5

Form: A

L: 21.2

L1: 3.5

L2: 8

Load rating max. kN (static load only): 15

Material mount surface / support surface: Steel

Mount surface / support surface: Round

SW: 6

Was £4.33 Save 50% £2.17 ea. Excl VAT Was £5.20 Save 50% £2.60 ea. Inc VAT

Qty

Product Wishlist & Compare Placeholder

Qty	Price per item	Savings
30 +	£1.82	16%

Next Working Day Delivery on All In-Stock Products

modal placeholder

Quick Links

Product Dimensions

D	M8
D3	13
DK	5.5
Form	A
L	21.2
L1	3.5
L2	8
Load rating max. kN (static load only)	15
Material mount surface / support surface	Steel
Mount surface / support surface	Round
SW	6
