K0380 Ball Pressure Screws Form A Full Ball Size M6-M24

K0380 Ball Pressure Screws Form A Full Ball Size M6-M24

List view Grid view

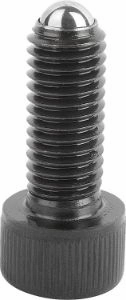

BALL-END THRUST SCREW WITH HEAD, FORM:A WITH FULL BALL, M06, L=30,8, CARBON STEEL, COMP:BALL-BEARING STEEL

Select your sizes

Choose Vertical Base Type

Choose Horizontal Base Type

Choose Stroke Length

Choose Type

Style

Item

Style

Clamp Type

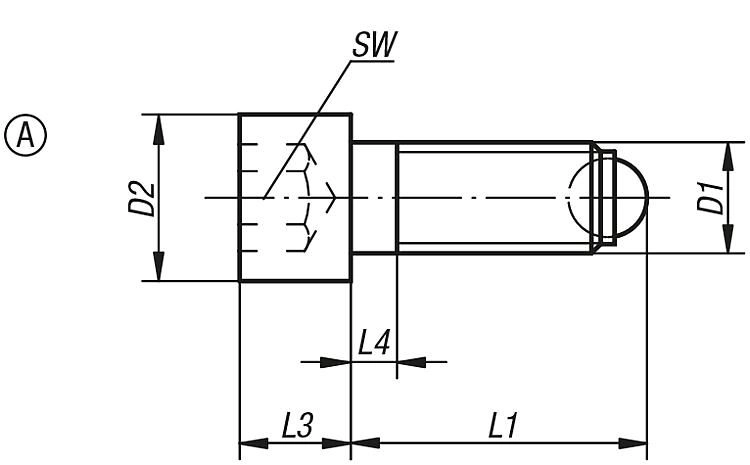

Line drawing placeholder

Move drawing here

	D	D3	DK	Form	L	L1	L2	Load rating max. kN (static load only)	Material mount surface / support surface	Mount surface / support surface	SW	Price (Exc. Tax)	Stock
Filters
K0380.10410 View product	M4	7	2,5	A	9,9	2,1	4	3,5	Steel	Round	3	£3.83	0
K0380.10416 View product	M4	7	2,5	A	15,9	2,1	4	3,5	Steel	Round	3	£3.83	0
K0380.10420 View product	M4	7	2,5	A	19,9	2,1	4	3,5	Steel	Round	3	£3.83	0
K0380.10512 View product	M5	8,5	3	A	12,1	2,4	5	4,5	Steel	Round	4	£3.93	0
K0380.10516 View product	M5	8,5	3	A	16,1	2,4	5	4,5	Steel	Round	4	£3.93	0
K0380.10520 View product	M5	8,5	3	A	20,1	2,4	5	4,5	Steel	Round	4	£3.93	0
K0380.10620 View product	M6	10	4	A	20,8	3	6	9	Steel	Round	5	£3.95	11
K0380.10630 View product	M6	10	4	A	30,8	3	6	9	Steel	Round	5	£4.02	0
K0380.10640 View product	M6	10	4	A	40,8	16	6	9	Steel	Round	5	£4.07	26
K0380.10820 View product	M8	13	5,5	A	21,2	3,5	8	15	Steel	Round	6	£4.98	9
K0380.10835 View product	M8	13	5,5	A	36,2	3,5	8	15	Steel	Round	6	£5.03	0
K0380.10850 View product	M8	13	5,5	A	51,2	22	8	15	Steel	Round	6	£5.09	0
K0380.11025 View product	M10	16	7	A	26,7	4,5	10	20	Steel	Round	8	£6.03	0
K0380.11040 View product	M10	16	7	A	41,7	4,5	10	20	Steel	Round	8	£6.28	12
K0380.11060 View product	M10	16	7	A	61,7	28	10	20	Steel	Round	8	£6.57	0
K0380.11230 View product	M12	18	8,5	A	32	5	12	30	Steel	Round	10	£7.64	6
K0380.11250 View product	M12	18	8,5	A	52	5	12	30	Steel	Round	10	£7.87	0
K0380.11280 View product	M12	18	8,5	A	82	44	12	30	Steel	Round	10	£8.48	0
K0380.11640 View product	M16	24	12	A	43,3	6	16	60	Steel	Round	14	£9.81	0
K0380.11660 View product	M16	24	12	A	63,3	6	16	60	Steel	Round	14	£10.34	0
K0380.11680 View product	M16	24	12	A	83,3	36	16	60	Steel	Round	14	£11.41	0
K0380.120100 View product	M20	30	15	A	104,2	48	20	90	Steel	Round	17	£20.75	0
K0380.12050 View product	M20	30	15	A	54,2	7,5	20	90	Steel	Round	17	£17.82	0
K0380.12080 View product	M20	30	15	A	84,2	28	20	90	Steel	Round	17	£19.28	0
K0380.124120 View product	M24	36	18	A	124,7	60	24	120	Steel	Round	19	£39.68	0
K0380.12460 View product	M24	36	18	A	64,7	9	24	120	Steel	Round	19	£31.03	0
K0380.12490 View product	M24	36	18	A	94,7	30	24	120	Steel	Round	19	£37.15	0
