K0380 Ball Pressure Screws Form B Flattened Ball Size M6-M24

K0380 Ball Pressure Screws Form B Flattened Ball Size M6-M24

List view Grid view

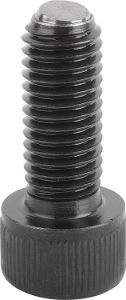

BALL-END THRUST SCREW WITH HEAD, FORM:B FLATTENED BALL, M08, L=50, CARBON STEEL, COMP:BALL-BEARING STEEL

Select your sizes

Choose Vertical Base Type

Choose Horizontal Base Type

Choose Stroke Length

Choose Type

Style

Item

Style

Clamp Type

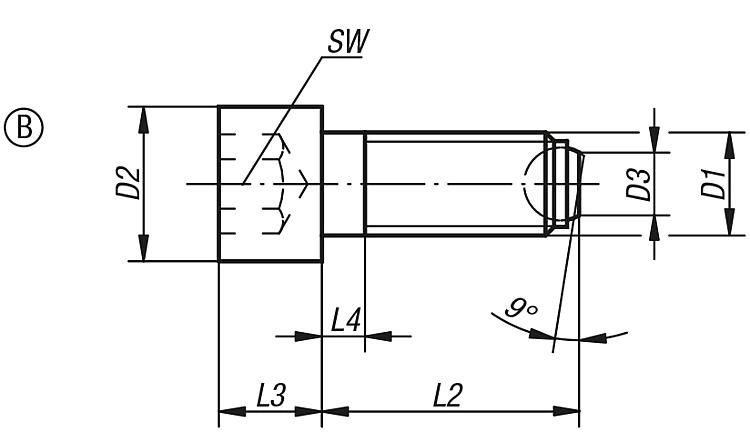

Line drawing placeholder

Move drawing here

	D	D1	D3	DK	Form	L	L1	L2	Load rating max. kN (static load only)	Material mount surface / support surface	Mount surface / support surface	SW	Price (Exc. Tax)	Stock
Filters
K0380.20620 View product	M6	3,2	10	4	B	20	3	6	9	Steel	plane	5	£5.48	0
K0380.20630 View product	M6	3,2	10	4	B	30	3	6	9	Steel	plane	5	£5.53	0
K0380.20640 View product	M6	3,2	10	4	B	40	16	6	9	Steel	plane	5	£5.65	0
K0380.20820 View product	M8	4,5	13	5,5	B	20	3,5	8	15	Steel	plane	6	£6.82	0
K0380.20835 View product	M8	4,5	13	5,5	B	35	3,5	8	15	Steel	plane	6	£6.98	0
K0380.20850 View product	M8	4,5	13	5,5	B	50	22	8	15	Steel	plane	6	£7.23	9
K0380.21025 View product	M10	6	16	7	B	25	4,5	10	20	Steel	plane	8	£7.87	0
K0380.21040 View product	M10	6	16	7	B	40	4,5	10	20	Steel	plane	8	£8.23	0
K0380.21060 View product	M10	6	16	7	B	60	28	10	20	Steel	plane	8	£8.55	0
K0380.21230 View product	M12	7,2	18	8,5	B	30	5	12	30	Steel	plane	10	£11.08	0
K0380.21250 View product	M12	7,2	18	8,5	B	50	5	12	30	Steel	plane	10	£11.47	0
K0380.21280 View product	M12	7,2	18	8,5	B	80	44	12	30	Steel	plane	10	£12.38	0
K0380.21640 View product	M16	10,7	24	12	B	40	6	16	60	Steel	plane	14	£15.83	0
K0380.21660 View product	M16	10,7	24	12	B	60	6	16	60	Steel	plane	14	£16.60	0
K0380.21680 View product	M16	10,7	24	12	B	80	36	16	60	Steel	plane	14	£17.72	0
K0380.220100 View product	M20	13,5	30	15	B	100	48	20	90	Steel	plane	17	£31.49	0
K0380.22050 View product	M20	13,5	30	15	B	50	7,5	20	90	Steel	plane	17	£28.73	0
K0380.22080 View product	M20	13,5	30	15	B	80	28	20	90	Steel	plane	17	£30.00	0
K0380.224120 View product	M24	15,8	36	18	B	120	60	24	120	Steel	plane	19	£51.36	0
K0380.22460 View product	M24	15,8	36	18	B	60	9	24	120	Steel	plane	19	£42.96	0
K0380.22490 View product	M24	15,8	36	18	B	90	30	24	120	Steel	plane	19	£48.82	0
