BALL-END THRUST SCREW WITH HEAD, FORM:B FLATTENED BALL, M20, L=80, CARBON STEEL, COMP:BALL-BEARING STEEL

Item Code: K0380.22080

BALL-END THRUST SCREW WITH HEAD, FORM:B FLATTENED BALL, M20, L=80, CARBON STEEL, COMP:BALL-BEARING STEEL

Item Code: K0380.22080

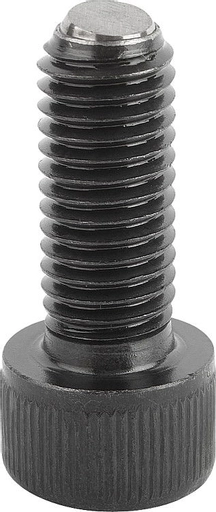

BALL-END THRUST SCREW WITH HEAD, FORM:B FLATTENED BALL, M20, L=80, CARBON STEEL, COMP:BALL-BEARING STEEL

Material:
Screw in tempered steel, ball in ball-bearing steel Surface finish:
Black screw, quality class 10.9;
ball hardened, natural finish Note:
Form A with full ball is used when a clean, polished pressure surface is required. Surfaces which are not plane and parallel can be firmly clamped or supported with form B with flattened ball because the movable ball can adapt itself up to 9°.

Quick Links

Dispatch by 06/08/25

D: M20

D1: 13,5

D3: 30

DK: 15

Form: B

L: 80

L1: 28

L2: 20

Load rating max. kN (static load only): 90

Material mount surface / support surface: Steel

Mount surface / support surface: plane

SW: 17

£29.17 ea. Excl VAT £35.00 ea. Inc VAT

This product is currently out of stock. Your item will be shipped when it is back in stock.

Qty

Product Wishlist & Compare Placeholder

Qty	Price per item	Savings
15 +	£23.92	18%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify

modal placeholder

Quick Links

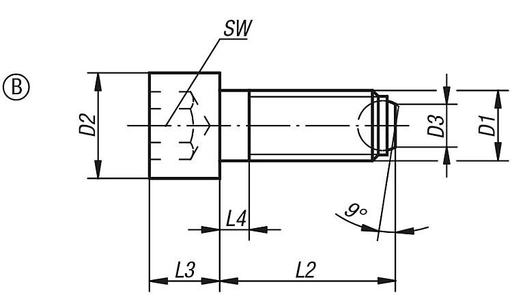

Product Dimensions

D	M20
D1	13,5
D3	30
DK	15
Form	B
L	80
L1	28
L2	20
Load rating max. kN (static load only)	90
Material mount surface / support surface	Steel
Mount surface / support surface	plane
SW	17
