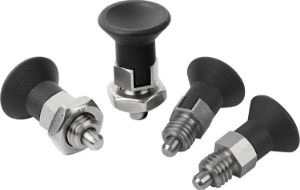

K0748 - Indexing Plungers Short Version

K0748 - Indexing Plungers Short Version

List view Grid view

Material:
Steel version:
Indexing pin not hardened.
Threaded sleeve steel.
Indexing pin 1.4305.

Stainless steel version:
Indexing pin not hardened.
Threaded sleeve 1.4305.
Indexing pin 1.4305.

Mushroom grip black grey thermoplastic.

Version:
Steel version:
Indexing pin hardened.
Threaded sleeve trivalent blue passivated.
Indexing pin bright.

Stainless steel version:
Indexing pin not hardened.
Steel parts bright.

Note:
Indexing plungers are used to prevent changes to the locking position due to lateral forces. Another locking position can be set only after the plunger has been manually released. Indexing plungers with regular thread and unpolished and unhardened indexing pins are a cost-effective alternative to existing indexing plungers. But their degree of precision is still sufficient for many applications. The smaller production tolerances also make these products less sensitive to the alignment errors that can occur when aligning indexing plungers with the hole in the counter piece.
Pay attention to the max. tightening torque when assembling.

Indexing Plunger. Thread Size M12. Pin Diameter 6mm. Without Locking Slot. Not Hardened. Steel.

Select your sizes

Choose Vertical Base Type

Choose Horizontal Base Type

Choose Stroke Length

Choose Type

Sort by

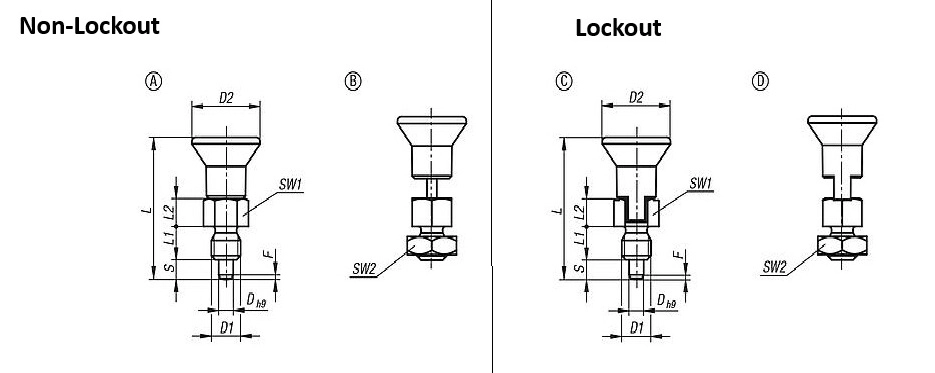

	D	D1	D2	Fx30°	L	L1	L2	Lockout	Material	Spring force final pressure F2 approx. N	Spring force initial pressure F1 approx. N	SW1	Tightening torque max. Nm	Travel S	Price (Excl VAT)	Price (Inc VAT)	Compare	Qty	Basket
FILTERS																	Basket
K0748.02903060 View product Indexing Plunger. Thread Size M6. Pin Diameter 3mm. Without Locking Slot. Not Hardened. Steel.	3	M6	14	0.8	25.5	6	5	No	Steel	8	3.5	8	2	3.5	£4.04 £4.85		0 Dispatched 30/06/25

	D	D1	D2	Fx30°	L	L1	L2	Lockout	Material	Spring force final pressure F2 approx. N	Spring force initial pressure F1 approx. N	SW1	Tightening torque max. Nm	Travel S	Price (Excl VAT)	Price (Inc VAT)	Compare	Qty	Basket
FILTERS																	Basket
K0748.02004080 View product Indexing Plunger. Thread Size M8. Pin Diameter 4mm. Without Locking Slot. Not Hardened. Steel.	4	M8	18	1	29.5	6	6	No	Steel	9	3.5	10	2	4	£4.07 £4.88		0 Dispatched 30/06/25

	D	D1	D2	Fx30°	L	L1	L2	Lockout	Material	Spring force final pressure F2 approx. N	Spring force initial pressure F1 approx. N	SW1	Tightening torque max. Nm	Travel S	Price (Excl VAT)	Price (Inc VAT)	Compare	Qty	Basket
FILTERS																	Basket
K0748.02105100 View product Indexing Plunger. Thread Size M10. Pin Diameter 5mm. Without Locking Slot. Not Hardened. Steel.	5	M10	21	1.3	34.5	8	7	No	Steel	12	6	13	7	5	£4.14 £4.97		15 15 in stock

	D	D1	D2	Fx30°	L	L1	L2	Lockout	Material	Spring force final pressure F2 approx. N	Spring force initial pressure F1 approx. N	SW1	Tightening torque max. Nm	Travel S	Price (Excl VAT)	Price (Inc VAT)	Compare	Qty	Basket
FILTERS																	Basket
K0748.02206120 View product Indexing Plunger. Thread Size M12. Pin Diameter 6mm. Without Locking Slot. Not Hardened. Steel.	6	M12	25	1.8	41.7	10	8	No	Steel	12	6	14	15	6	£4.81 £5.77		0 Dispatched 30/06/25

	D	D1	D2	Fx30°	L	L1	L2	Lockout	Material	Spring force final pressure F2 approx. N	Spring force initial pressure F1 approx. N	SW1	Tightening torque max. Nm	Travel S	Price (Excl VAT)	Price (Inc VAT)	Compare	Qty	Basket
FILTERS																	Basket
K0748.02308160 View product Indexing Plunger. Thread Size M16. Pin Diameter 8mm. Without Locking Slot. Not Hardened. Steel.	8	M16	33	2.3	54	12	10	No	Steel	13	6	19	20	8	£5.04 £6.05		0 Dispatched 30/06/25

	D	D1	D2	Fx30°	L	L1	L2	Lockout	Material	Spring force final pressure F2 approx. N	Spring force initial pressure F1 approx. N	SW1	Tightening torque max. Nm	Travel S	Price (Excl VAT)	Price (Inc VAT)	Compare	Qty	Basket
FILTERS																	Basket
K0748.04903060 View product Indexing Plunger. Thread Size M6. Pin Diameter 3mm. With Locking Slot. Not Hardened. Steel.	3	M6	14	0.8	25.5	6	5	Yes	Steel	8	3.5	8	2	3.5	£4.19 £5.03		0 Dispatched 30/06/25

	D	D1	D2	Fx30°	L	L1	L2	Lockout	Material	Spring force final pressure F2 approx. N	Spring force initial pressure F1 approx. N	SW1	Tightening torque max. Nm	Travel S	Price (Excl VAT)	Price (Inc VAT)	Compare	Qty	Basket
FILTERS																	Basket
K0748.04004080 View product Indexing Plunger. Thread Size M8. Pin Diameter 4mm. With Locking Slot. Not Hardened. Steel.	4	M8	18	1	29.5	6	6	Yes	Steel	9	3.5	10	2	4	£4.23 £5.08		0 Dispatched 30/06/25

	D	D1	D2	Fx30°	L	L1	L2	Lockout	Material	Spring force final pressure F2 approx. N	Spring force initial pressure F1 approx. N	SW1	Tightening torque max. Nm	Travel S	Price (Excl VAT)	Price (Inc VAT)	Compare	Qty	Basket
FILTERS																	Basket
K0748.04105100 View product Indexing Plunger. Thread Size M10. Pin Diameter 5mm. With Locking Slot. Not Hardened. Steel.	5	M10	21	1.3	34.5	8	7	Yes	Steel	12	6	13	7	5	£4.30 £5.16		0 Dispatched 30/06/25

	D	D1	D2	Fx30°	L	L1	L2	Lockout	Material	Spring force final pressure F2 approx. N	Spring force initial pressure F1 approx. N	SW1	Tightening torque max. Nm	Travel S	Price (Excl VAT)	Price (Inc VAT)	Compare	Qty	Basket
FILTERS																	Basket
K0748.04206120 View product Indexing Plunger. Thread Size M12. Pin Diameter 6mm. With Locking Slot. Not Hardened. Steel.	6	M12	25	1.8	41.7	10	8	Yes	Steel	12	6	14	15	6	£5.04 £6.05		0 Dispatched 30/06/25

	D	D1	D2	Fx30°	L	L1	L2	Lockout	Material	Spring force final pressure F2 approx. N	Spring force initial pressure F1 approx. N	SW1	Tightening torque max. Nm	Travel S	Price (Excl VAT)	Price (Inc VAT)	Compare	Qty	Basket
FILTERS																	Basket
K0748.04308160 View product Indexing Plunger. Thread Size M16. Pin Diameter 8mm. With Locking Slot. Not Hardened. Steel.	8	M16	33	2.3	54	12	10	Yes	Steel	13	6	19	20	8	£5.28 £6.34		0 Dispatched 30/06/25

	D	D1	D2	Fx30°	L	L1	L2	Lockout	Material	Spring force final pressure F2 approx. N	Spring force initial pressure F1 approx. N	SW1	Tightening torque max. Nm	Travel S	Price (Excl VAT)	Price (Inc VAT)	Compare	Qty	Basket
FILTERS																	Basket
K0748.12903060 View product Indexing Plunger. Thread Size M6. Pin Diameter 3mm. Without Locking Slot. Not Hardened. Stainless Steel..	3	M6	14	0.8	25.5	6	5	No	Stainless Steel	8	3.5	8	2	3.5	£4.16 £4.99		0 Dispatched 30/06/25

	D	D1	D2	Fx30°	L	L1	L2	Lockout	Material	Spring force final pressure F2 approx. N	Spring force initial pressure F1 approx. N	SW1	Tightening torque max. Nm	Travel S	Price (Excl VAT)	Price (Inc VAT)	Compare	Qty	Basket
FILTERS																	Basket
K0748.12004080 View product Indexing Plunger. Thread Size M8. Pin Diameter 4mm. Without Locking Slot. Not Hardened. Stainless Steel..	4	M8	18	1	29.5	6	6	No	Stainless Steel	9	3.5	10	2	4	£4.21 £5.05		0 Dispatched 30/06/25

	D	D1	D2	Fx30°	L	L1	L2	Lockout	Material	Spring force final pressure F2 approx. N	Spring force initial pressure F1 approx. N	SW1	Tightening torque max. Nm	Travel S	Price (Excl VAT)	Price (Inc VAT)	Compare	Qty	Basket
FILTERS																	Basket
K0748.12105100 View product Indexing Plunger. Thread Size M10. Pin Diameter 5mm. Without Locking Slot. Not Hardened. Stainless Steel..	5	M10	21	1.3	34.5	8	7	No	Stainless Steel	12	6	13	7	5	£4.91 £5.89		0 Dispatched 30/06/25

	D	D1	D2	Fx30°	L	L1	L2	Lockout	Material	Spring force final pressure F2 approx. N	Spring force initial pressure F1 approx. N	SW1	Tightening torque max. Nm	Travel S	Price (Excl VAT)	Price (Inc VAT)	Compare	Qty	Basket
FILTERS																	Basket
K0748.12206120 View product Indexing Plunger. Thread Size M12. Pin Diameter 6mm. Without Locking Slot. Not Hardened. Stainless Steel..	6	M12	25	1.8	41.7	10	8	No	Stainless Steel	12	6	14	15	6	£5.67 £6.80		0 Dispatched 30/06/25

	D	D1	D2	Fx30°	L	L1	L2	Lockout	Material	Spring force final pressure F2 approx. N	Spring force initial pressure F1 approx. N	SW1	Tightening torque max. Nm	Travel S	Price (Excl VAT)	Price (Inc VAT)	Compare	Qty	Basket
FILTERS																	Basket
K0748.12308160 View product Indexing Plunger. Thread Size M16. Pin Diameter 8mm. Without Locking Slot. Not Hardened. Stainless Steel..	8	M16	33	2.3	54	12	10	No	Stainless Steel	13	6	19	20	8	£7.33 £8.80		0 Dispatched 30/06/25

	D	D1	D2	Fx30°	L	L1	L2	Lockout	Material	Spring force final pressure F2 approx. N	Spring force initial pressure F1 approx. N	SW1	Tightening torque max. Nm	Travel S	Price (Excl VAT)	Price (Inc VAT)	Compare	Qty	Basket
FILTERS																	Basket
K0748.14903060 View product Indexing Plunger. Thread Size M6. Pin Diameter 3mm. With Locking Slot. Not Hardened. Stainless Steel..	3	M6	14	0.8	25.5	6	5	Yes	Stainless Steel	8	3.5	8	2	3.5	£4.30 £5.16		0 Dispatched 30/06/25

	D	D1	D2	Fx30°	L	L1	L2	Lockout	Material	Spring force final pressure F2 approx. N	Spring force initial pressure F1 approx. N	SW1	Tightening torque max. Nm	Travel S	Price (Excl VAT)	Price (Inc VAT)	Compare	Qty	Basket
FILTERS																	Basket
K0748.14004080 View product Indexing Plunger. Thread Size M8. Pin Diameter 4mm. With Locking Slot. Not Hardened. Stainless Steel..	4	M8	18	1	29.5	6	6	Yes	Stainless Steel	9	3.5	10	2	4	£4.34 £5.21		0 Dispatched 30/06/25

	D	D1	D2	Fx30°	L	L1	L2	Lockout	Material	Spring force final pressure F2 approx. N	Spring force initial pressure F1 approx. N	SW1	Tightening torque max. Nm	Travel S	Price (Excl VAT)	Price (Inc VAT)	Compare	Qty	Basket
FILTERS																	Basket
K0748.14105100 View product Indexing Plunger. Thread Size M10. Pin Diameter 5mm. With Locking Slot. Not Hardened. Stainless Steel..	5	M10	21	1.3	34.5	8	7	Yes	Stainless Steel	12	6	13	7	5	£5.14 £6.17		0 Dispatched 30/06/25

	D	D1	D2	Fx30°	L	L1	L2	Lockout	Material	Spring force final pressure F2 approx. N	Spring force initial pressure F1 approx. N	SW1	Tightening torque max. Nm	Travel S	Price (Excl VAT)	Price (Inc VAT)	Compare	Qty	Basket
FILTERS																	Basket
K0748.14206120 View product Indexing Plunger. Thread Size M12. Pin Diameter 6mm. With Locking Slot. Not Hardened. Stainless Steel..	6	M12	25	1.8	41.7	10	8	Yes	Stainless Steel	12	6	14	15	6	£5.91 £7.09		0 Dispatched 30/06/25

	D	D1	D2	Fx30°	L	L1	L2	Lockout	Material	Spring force final pressure F2 approx. N	Spring force initial pressure F1 approx. N	SW1	Tightening torque max. Nm	Travel S	Price (Excl VAT)	Price (Inc VAT)	Compare	Qty	Basket
FILTERS																	Basket
K0748.14308160 View product Indexing Plunger. Thread Size M16. Pin Diameter 8mm. With Locking Slot. Not Hardened. Stainless Steel..	8	M16	33	2.3	54	12	10	Yes	Stainless Steel	13	6	19	20	8	£7.63 £9.16		0 Dispatched 30/06/25
