Item Code: K0748.14105100

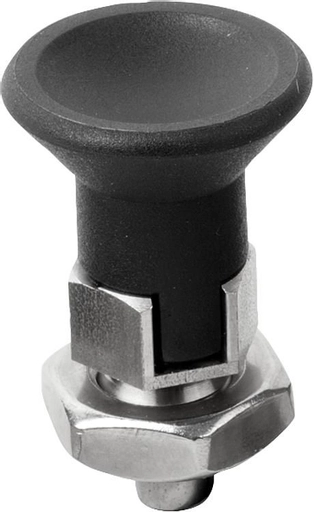

Indexing Plunger. Thread Size M10. Pin Diameter 5mm. With Locking Slot. Not Hardened. Stainless Steel..

Item Code: K0748.14105100

Indexing Plunger. Thread Size M10. Pin Diameter 5mm. With Locking Slot. Not Hardened. Stainless Steel..

Material:
Steel version:
Indexing pin not hardened.
Threaded sleeve 1.0718.
Indexing pin 1.4305.
Stainless steel version:
Indexing pin not hardened.
Threaded sleeve 1.4305.
Indexing pin 1.4305.
Mushroom knob black grey thermoplastic.
Version:
Steel version:
Indexing pin hardened.
Threaded sleeve blue passivated.
Indexing pin bright.
Stainless steel version:
Indexing pin not hardened.
Steel parts bright.
Note:
This article is a cost-efficient alternative to the existing indexing plungers. It is suitable for applications which require less precision. The max. tightening torque should be observed when assembling.

Quick Links

Dispatch by 12/06/25

5
12
6
Yes
5
34.5
8
M10
7
21
with locknut
13
1.3
7

£5.14  ea. Excl VAT £6.17  ea. Inc VAT

This product is currently out of stock. Your item will be shipped when it is back in stock.

Qty

Product Wishlist & Compare Placeholder

Qty Price per item Savings
30 + £4.32 16%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify



modal placeholder

Quick Links



Material:
Steel version:
Indexing pin not hardened.
Threaded sleeve 1.0718.
Indexing pin 1.4305.
Stainless steel version:
Indexing pin not hardened.
Threaded sleeve 1.4305.
Indexing pin 1.4305.
Mushroom knob black grey thermoplastic.
Version:
Steel version:
Indexing pin hardened.
Threaded sleeve blue passivated.
Indexing pin bright.
Stainless steel version:
Indexing pin not hardened.
Steel parts bright.
Note:
This article is a cost-efficient alternative to the existing indexing plungers. It is suitable for applications which require less precision. The max. tightening torque should be observed when assembling.

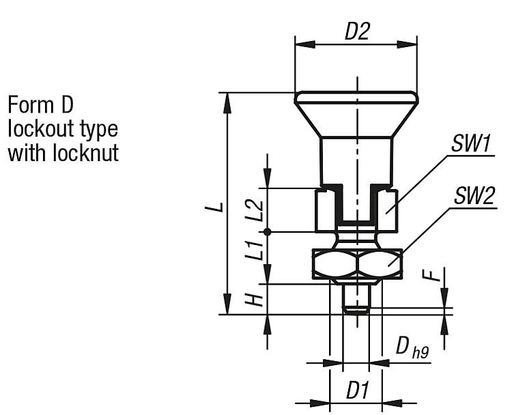

Travel S5
Spring force final pressure F2 approx. N12
Spring force initial pressure F1 approx. N6
LockoutYes
D5
L34.5
L18
D1M10
L27
D221
Locknutwith locknut
SW113
Fx30°1.3
Tightening torque max. Nm7
STP
TypeLockout
Body MaterialStainless Steel
Thread SizeM10
Pin Diameter5mm
Pin Length5mm
