Item Code: K0748.02903060

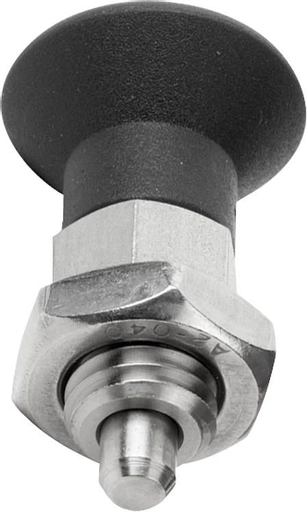

Indexing Plunger. Thread Size M6. Pin Diameter 3mm. Without Locking Slot. Not Hardened. Steel.

Item Code: K0748.02903060

Indexing Plunger. Thread Size M6. Pin Diameter 3mm. Without Locking Slot. Not Hardened. Steel.

Material:
Steel version:
Indexing pin not hardened.
Threaded sleeve 1.0718.
Indexing pin 1.4305.
Stainless steel version:
Indexing pin not hardened.
Threaded sleeve 1.4305.
Indexing pin 1.4305.
Mushroom knob black grey thermoplastic.
Version:
Steel version:
Indexing pin hardened.
Threaded sleeve blue passivated.
Indexing pin bright.
Stainless steel version:
Indexing pin not hardened.
Steel parts bright.
Note:
This article is a cost-efficient alternative to the existing indexing plungers. It is suitable for applications which require less precision. The max. tightening torque should be observed when assembling.

Quick Links

Dispatch by 10/06/25

3.5
8
3.5
No
3
25.5
6
M6
5
14
with locknut
8
0.8
2

£4.04  ea. Excl VAT £4.85  ea. Inc VAT

This product is currently out of stock. Your item will be shipped when it is back in stock.

Qty

Product Wishlist & Compare Placeholder

Qty Price per item Savings
30 + £3.39 16%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify



modal placeholder

Quick Links



Material:
Steel version:
Indexing pin not hardened.
Threaded sleeve 1.0718.
Indexing pin 1.4305.
Stainless steel version:
Indexing pin not hardened.
Threaded sleeve 1.4305.
Indexing pin 1.4305.
Mushroom knob black grey thermoplastic.
Version:
Steel version:
Indexing pin hardened.
Threaded sleeve blue passivated.
Indexing pin bright.
Stainless steel version:
Indexing pin not hardened.
Steel parts bright.
Note:
This article is a cost-efficient alternative to the existing indexing plungers. It is suitable for applications which require less precision. The max. tightening torque should be observed when assembling.

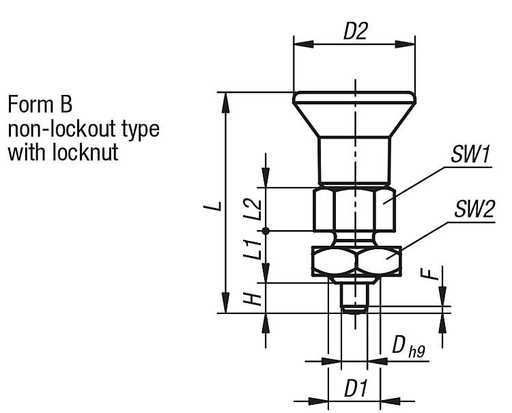

Travel S3.5
Spring force final pressure F2 approx. N8
Spring force initial pressure F1 approx. N3.5
LockoutNo
D3
L25.5
L16
D1M6
L25
D214
Locknutwith locknut
SW18
Fx30°0.8
Tightening torque max. Nm2
STP
TypeNon Lockout
Body MaterialSteel
Thread SizeM6
Pin Diameter3mm
Pin Length3.5mm
