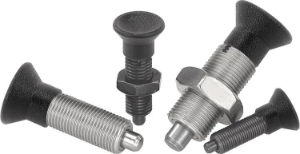

K0343 - Indexing Plungers Without Collar In Steel And Stainless Steel

K0343 - Indexing Plungers Without Collar In Steel And Stainless Steel

List view Grid view

Select your sizes

Choose Vertical Base Type

Choose Horizontal Base Type

Choose Stroke Length

Choose Type

Style

Item

Style

Clamp Type

K0343 Indexing Plungers Without Collar In Steel Pin Hardened

K0343 Indexing Plunger Without Collar In Stainless Steel Hardened Pin

K0343 Indexing Plunger Without Collar In Stainless Steel

Line drawing placeholder

Move drawing here

	D	D1	D2	Fx30°	L	L1	L2	Locknut	Spring force initial pressure F1 approx. N	Spring force final pressure F2 approx. N	SW	Travel S	Price (Exc. Tax)	Stock
Filters
K0343.2903 View product	3	M6x0,75	14	0,8	31,5	17	11	with locknut	4,5	10	10	3,5	£7.00	0
K0343.02903 View product	3	M6x0,75	14	0,8	31,5	17	11	with locknut	4,5	10	10	3,5	£12.88	0
K0343.12903 View product	3	M6x0,75	14	0,8	31,5	17	11	with locknut	4,5	10	10	3,5	£12.88	0
K0343.2004 View product	4	M8X1	18	1,3	38,5	21	13,5	with locknut	6	12	13	4	£6.67	0
K0343.02004 View product	4	M8X1	18	1,3	38,5	21	13,5	with locknut	6	12	13	4	£12.29	0
K0343.12004 View product	4	M8X1	18	1,3	38,5	21	13,5	with locknut	6	12	13	4	£12.29	0
K0343.2105 View product	5	M10X1	21	1,3	43,5	24	14,5	with locknut	5	12	17	5	£6.32	0
K0343.02105 View product	5	M10X1	21	1,3	43,5	24	14,5	with locknut	5	12	17	5	£11.68	0
K0343.12105 View product	5	M10X1	21	1,3	43,5	24	14,5	with locknut	5	12	17	5	£11.68	0
K0343.2206 View product	6	M12x1,5	25	1,8	51,7	28	17,7	with locknut	6	14	19	6	£6.86	0
K0343.02206 View product	6	M12x1,5	25	1,8	51,7	28	17,7	with locknut	6	14	19	6	£13.23	0
K0343.12206 View product	6	M12x1,5	25	1,8	51,7	28	17,7	with locknut	6	14	19	6	£13.23	0
K0343.2308 View product	8	M16x1,5	33	2,3	68	36	24	with locknut	15	35	24	8	£8.34	0
K0343.02308 View product	8	M16x1,5	33	2,3	68	36	24	with locknut	15	35	24	8	£15.72	0
K0343.12308 View product	8	M16x1,5	33	2,3	68	36	24	with locknut	15	35	24	8	£15.72	0
K0343.2410 View product	10	M20x1,5	33	2,8	74	40	24	with locknut	15	34	30	10	£12.36	0
K0343.02410 View product	10	M20x1,5	33	2,8	74	40	24	with locknut	15	34	30	10	£22.98	0
K0343.12410 View product	10	M20x1,5	33	2,8	74	40	24	with locknut	15	34	30	10	£22.98	0
K0343.2412 View product	12	M20x1,5	33	2,8	78	42	24	with locknut	15	39	30	12	£13.58	0
K0343.02412 View product	12	M20x1,5	33	2,8	78	42	24	with locknut	15	39	30	12	£25.30	0
K0343.12412 View product	12	M20x1,5	33	2,8	78	42	24	with locknut	15	39	30	12	£25.30	0
K0343.2516 View product	16	M24x2	40	3,2	96	50	30	with locknut	20	46	36	16	£15.47	0
K0343.02516 View product	16	M24x2	40	3,2	96	50	30	with locknut	20	46	36	16	£28.71	0
K0343.12516 View product	16	M24x2	40	3,2	96	50	30	with locknut	20	46	36	16	£28.71	0
