Item Code: K0343.2903

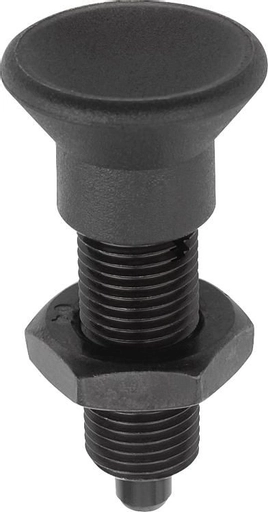

Indexing Plunger. Thread Size M6. Thread Pitch 0.75mm. Pin Diameter 3mm. Without Locking Slot. Hardened. Steel.

Item Code: K0343.2903

Indexing Plunger. Thread Size M6. Thread Pitch 0.75mm. Pin Diameter 3mm. Without Locking Slot. Hardened. Steel.

Material:
Steel version:
Indexing pin hardened:
grade 5.8.
Mushroom knob black grey thermoplastic
Version:
Steel version:
Indexing pin hardened, ground, black oxidised.
Note:
Indexing plungers are used to prevent any change in locking position due to lateral forces. A new locking position can only be set after the pin has been manually disengaged.
A washer is available to aid by screwing in the indexing plungers. The washer slides beneath the mushroom knob so that the carrier pins engage in the slot.

Quick Links

Dispatch by 10/06/25

3
31,5
17
M6x0,75
11
10
14
with locknut
0,8
4,5
10
3,5

£6.81  ea. Excl VAT £8.17  ea. Inc VAT

This product is currently out of stock. Your item will be shipped when it is back in stock.

Qty

Product Wishlist & Compare Placeholder

Qty Price per item Savings
25 + £5.58 18%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify



modal placeholder

Quick Links



Material:
Steel version:
Indexing pin hardened:
grade 5.8.
Mushroom knob black grey thermoplastic
Version:
Steel version:
Indexing pin hardened, ground, black oxidised.
Note:
Indexing plungers are used to prevent any change in locking position due to lateral forces. A new locking position can only be set after the pin has been manually disengaged.
A washer is available to aid by screwing in the indexing plungers. The washer slides beneath the mushroom knob so that the carrier pins engage in the slot.

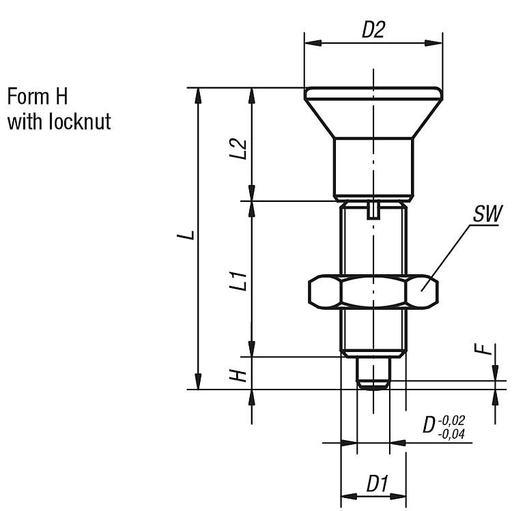

D3
L31,5
L117
D1M6x0,75
L211
SW10
D214
Locknutwith locknut
Fx30°0,8
Spring force initial pressure F1 approx. N4,5
Spring force final pressure F2 approx. N10
Travel S3,5
STP
TypeNon Lockout
Body MaterialSteel
Thread SizeM6
Pin Diameter3mm
Pin Length3.5mm
