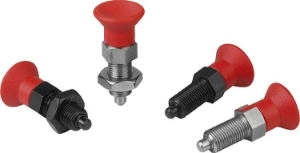

K0338 Indexing Plungers With Red Grip In Steel And Stainless Steel

K0338 Indexing Plungers With Red Grip In Steel And Stainless Steel

Select your sizes

Choose Vertical Base Type

Choose Horizontal Base Type

Choose Stroke Length

Choose Type

Style

Item

Style

Clamp Type

Style

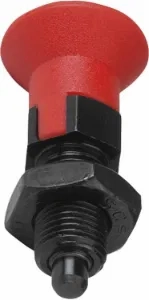

K0338 Indexing Plungers With Red Grip Form B In Steel

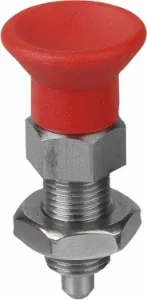

K0338 Indexing Plungers With Red Grip Form B In Stainless Steel

K0338 Indexing Plungers With Red Grip Form D In Steel

K0338 Indexing Plungers With Red Grip Form D In Stainless Steel

Line drawing placeholder

Move drawing here

	Component colour	D	D1	D2	Fx30°	L	L1	L2	L3	Locknut	Lockout	Spring force final pressure F2 approx. N	Spring force initial pressure F1 approx. N	Surface finish / body	SW1	SW2	Travel S	Price (Exc. Tax)	Stock
Filters
K0338.0490384 View product	Red	3	M6x0.75	14	0.8	31.5	12	5	10	with locknut	Yes	10	4.5	Hardened	8	--	3.5	£17.57	0
K0338.1200484 View product	Red	4	M8X1	18	1	38.5	15	6	13	with locknut	No	12	6	Not Hardened	10	--	4	£15.04	0
K0338.290384 View product	Red	3	M6x0.75	14	0.8	31.5	12	5	10	with locknut	No	10	4.5	Hardened	8	10	3.5	£9.26	0
K0338.0200484 View product	Red	4	M8X1	18	1	38.5	15	6	13	with locknut	No	12	6	Hardened	10	--	4	£15.04	0
K0338.490384 View product	Red	3	M6x0.75	14	0.8	31.5	12	5	10	with locknut	Yes	10	4.5	Hardened	8	10	3.5	£11.54	0
K0338.400484 View product	Red	4	M8X1	18	1	38.5	15	6	13	with locknut	Yes	12	6	Hardened	10	13	4	£10.98	0
K0338.200484 View product	Red	4	M8X1	18	1	38.5	15	6	13	with locknut	No	12	6	Hardened	10	13	4	£8.80	0
K0338.0400484 View product	Red	4	M8X1	18	1	38.5	15	6	13	with locknut	Yes	12	6	Hardened	10	--	4	£16.73	0
K0338.0210584 View product	Red	5	M10X1	21	1.3	43.5	17	7	15	with locknut	No	12	5	Hardened	13	--	5	£14.32	0
K0338.410584 View product	Red	5	M10X1	21	1.3	43.5	17	7	15	with locknut	Yes	12	5	Hardened	13	17	5	£10.49	0
K0338.0410584 View product	Red	5	M10X1	21	1.3	43.5	17	7	15	with locknut	Yes	12	5	Hardened	13	--	5	£15.92	0
K0338.0220684 View product	Red	6	M12X1.5	25	1.8	51.7	20	8	17	with locknut	No	14	6	Hardened	14	--	6	£16.83	0
K0338.210584 View product	Red	5	M10X1	21	1.3	43.5	17	7	15	with locknut	No	12	5	Hardened	13	17	5	£8.36	0
K0338.0420684 View product	Red	6	M12X1.5	25	1.8	51.7	20	8	17	with locknut	Yes	14	6	Hardened	14	--	6	£18.77	0
K0338.0230884 View product	Red	8	M16x1.5	33	2.3	68	26	10	23	with locknut	No	35	15	Hardened	19	--	8	£22.45	0
K0338.220684 View product	Red	6	M12X1.5	25	1.8	51.7	20	8	17	with locknut	No	14	6	Hardened	14	19	6	£9.28	0
K0338.420684 View product	Red	6	M12X1.5	25	1.8	51.7	20	8	17	with locknut	Yes	14	6	Hardened	14	19	6	£11.63	0
K0338.0430884 View product	Red	8	M16x1.5	33	2.3	68	26	10	23	with locknut	Yes	35	15	Hardened	19	--	8	£25.61	0
K0338.0241084 View product	Red	10	M20x1.5	33	2.8	74	28	12	25	with locknut	No	34	15	Hardened	22	--	10	£37.08	0
K0338.230884 View product	Red	8	M16x1.5	33	2.3	68	26	10	23	with locknut	No	35	15	Hardened	19	24	8	£12.12	0
K0338.430884 View product	Red	8	M16x1.5	33	2.3	68	26	10	23	with locknut	Yes	35	15	Hardened	19	24	8	£14.03	0
K0338.0441084 View product	Red	10	M20x1.5	33	2.8	74	28	12	25	with locknut	Yes	34	15	Hardened	22	--	10	£47.41	0
K0338.0241284 View product	Red	12	M20x1.5	33	2.8	78	28	14	25	with locknut	No	39	15	Hardened	22	--	12	£40.79	0
K0338.241084 View product	Red	10	M20x1.5	33	2.8	74	28	12	25	with locknut	No	34	15	Hardened	22	30	10	£17.25	0
K0338.441084 View product	Red	10	M20x1.5	33	2.8	74	28	12	25	with locknut	Yes	34	15	Hardened	22	30	10	£22.73	0
K0338.0441284 View product	Red	12	M20x1.5	33	2.8	78	28	14	25	with locknut	Yes	39	15	Hardened	22	--	12	£52.14	0
K0338.0251684 View product	Red	16	M24x2	40	3.2	96	32	18	28	with locknut	No	46	20	Hardened	27	--	16	£46.36	0
K0338.241284 View product	Red	12	M20x1.5	33	2.8	78	28	14	25	with locknut	No	39	15	Hardened	22	30	12	£18.97	0
K0338.441284 View product	Red	12	M20x1.5	33	2.8	78	28	14	25	with locknut	Yes	39	15	Hardened	22	30	12	£24.99	0
K0338.0451684 View product	Red	16	M24x2	40	3.2	96	32	18	28	with locknut	Yes	46	20	Hardened	27	--	16	£59.27	0
K0338.0290384 View product	Red	3	M6x0.75	14	0.8	31.5	12	5	10	with locknut	No	10	4.5	Hardened	8	--	3.5	£15.79	0
K0338.251684 View product	Red	16	M24x2	40	3.2	96	32	18	28	with locknut	No	46	20	Hardened	27	36	16	£21.56	0
K0338.451684 View product	Red	16	M24x2	40	3.2	96	32	18	28	with locknut	Yes	46	20	Hardened	27	36	16	£28.39	0
K0338.1490384 View product	Red	3	M6x0.75	14	0.8	31.5	12	5	10	with locknut	Yes	10	4.5	Not Hardened	8	--	3.5	£17.57	0
K0338.1400484 View product	Red	4	M8X1	18	1	38.5	15	6	13	with locknut	Yes	12	6	Not Hardened	10	--	4	£16.73	0
K0338.1210584 View product	Red	5	M10X1	21	1.3	43.5	17	7	15	with locknut	No	12	5	Not Hardened	13	--	5	£14.32	0
K0338.1410584 View product	Red	5	M10X1	21	1.3	43.5	17	7	15	with locknut	Yes	12	5	Not Hardened	13	--	5	£15.92	0
K0338.1220684 View product	Red	6	M12X1.5	25	1.8	51.7	20	8	17	with locknut	No	14	6	Not Hardened	14	--	6	£16.83	0
K0338.1420684 View product	Red	6	M12X1.5	25	1.8	51.7	20	8	17	with locknut	Yes	14	6	Not Hardened	14	--	6	£18.77	0
K0338.1230884 View product	Red	8	M16x1.5	33	2.3	68	26	10	23	with locknut	No	35	15	Not Hardened	19	--	8	£22.45	0
K0338.1430884 View product	Red	8	M16x1.5	33	2.3	68	26	10	23	with locknut	Yes	35	15	Not Hardened	19	--	8	£25.61	0
K0338.1241084 View product	Red	10	M20x1.5	33	2.8	74	28	12	25	with locknut	No	34	15	Not Hardened	22	--	10	£37.08	0
K0338.1441084 View product	Red	10	M20x1.5	33	2.8	74	28	12	25	with locknut	Yes	34	15	Not Hardened	22	--	10	£47.41	0
K0338.1241284 View product	Red	12	M20x1.5	33	2.8	78	28	14	25	with locknut	No	39	15	Not Hardened	22	--	12	£40.79	0
K0338.1441284 View product	Red	12	M20x1.5	33	2.8	78	28	14	25	with locknut	Yes	39	15	Not Hardened	22	--	12	£52.14	0
K0338.1251684 View product	Red	16	M24x2	40	3.2	96	32	18	28	with locknut	No	46	20	Not Hardened	27	--	16	£46.36	0
K0338.1451684 View product	Red	16	M24x2	40	3.2	96	32	18	28	with locknut	Yes	46	20	Not Hardened	27	--	16	£59.27	0
K0338.1290384 View product	Red	3	M6x0.75	14	0.8	31.5	12	5	10	with locknut	No	10	4.5	Not Hardened	8	--	3.5	£15.79	0

Showing products per page

List view Grid view

{
    "id": "395",
    "layout_id": "",
    "parent_id": "394",
    "name": "K0338 Indexing Plungers With Red Grip In Steel And Stainless Steel",
    "slug": "k0338-indexing-plungers-with-red-grip-in-steel-and-stainless-steel",
    "meta_title": "K0338 Indexing Plungers With Red Grip In Steel And Stainless Steel",
    "meta_description": "",
    "long_description": "",
    "short_description": "",
    "active": "1",
    "visible": "1",
    "show_products": "1",
    "order_num": "350",
    "default_sortby": "best_match",
    "deleted": "0",
    "created": "2025-03-14 11:13:39",
    "updated": "2025-03-14 11:13:39",
    "images": [
        {
            "url": "https:\/\/images.shopcdn.co.uk\/11\/75\/1175b353cde124f8921ae379e5e0a51b\/1024x1024\/webp\/fit?quality=100&amp;compression=100",
            "contain_url": "https:\/\/images.shopcdn.co.uk\/11\/75\/1175b353cde124f8921ae379e5e0a51b\/256x256\/webp\/fit?quality=100&amp;compression=100",
            "crop_url": "https:\/\/images.shopcdn.co.uk\/11\/75\/1175b353cde124f8921ae379e5e0a51b\/256x256\/webp\/fit?quality=100&amp;compression=100",
            "original_url": "https:\/\/images.shopcdn.co.uk\/11\/75\/1175b353cde124f8921ae379e5e0a51b\/300x153\/webp\/resize?quality=100&amp;compression=100"
        }
    ],
    "is_parent_category": false,
    "is_product_group": false,
    "parent_category_title": "K0338 - Indexing Plungers In Steel & Stainless Steel Size M6-M24",
    "parent_category_url": "k0338-indexing-plungers-in-steel-stainless-steel-size-m6-m24",
    "path": "Standard Parts > Indexing Plungers > K0338 - Indexing Plungers In Steel &amp; Stainless Steel Size M6-M24 > K0338 Indexing Plungers With Red Grip In Steel And Stainless Steel",
    "path_list": [
        "Standard Parts",
        "Indexing Plungers",
        "K0338 - Indexing Plungers In Steel &amp; Stainless Steel Size M6-M24",
        "K0338 Indexing Plungers With Red Grip In Steel And Stainless Steel"
    ],
    "selectedTags": [],
    "availableProducts": {
        "key": "available",
        "doc_count": 48,
        "stockLevel": {
            "untracked": 48,
            "in_stock": 0
        }
    },
    "unavailableProducts": {
        "key": "unavailable",
        "doc_count": 0
    },
    "product_attributes": [
        "Component colour",
        "D",
        "D1",
        "D2",
        "Fx30\u00b0",
        "L",
        "L1",
        "L2",
        "L3",
        "Locknut",
        "Lockout",
        "Spring force final pressure F2 approx. N",
        "Spring force initial pressure F1 approx. N",
        "Surface finish \/ body",
        "SW1",
        "SW2",
        "Travel S"
    ]
}

K0338 Indexing Plungers With Red Grip In Steel And Stainless Steel

K0338 Indexing Plungers With Red Grip Form B In Steel

K0338 Indexing Plungers With Red Grip Form B In Stainless Steel

K0338 Indexing Plungers With Red Grip Form D In Steel

K0338 Indexing Plungers With Red Grip Form D In Stainless Steel

£17.57

£15.04

£9.26

£15.04

£11.54

£10.98

£8.80

£16.73

£14.32

£10.49

£15.92

£16.83

£8.36

£18.77

£22.45

£9.28

£11.63

£25.61

£37.08

£12.12

£14.03

£47.41

£40.79

£17.25

£22.73

£52.14

£46.36

£18.97

£24.99

£59.27

£15.79

£21.56

£28.39

£17.57

£16.73

£14.32

£15.92

£16.83

£18.77

£22.45

£25.61

£37.08

£47.41

£40.79

£52.14

£46.36

£59.27

£15.79

Indexing Plunger. M6 Thread. 0.75mm Thread Pitch. 3mm Pin Diameter. With Locking Slot. Hardened. Stainless Steel.

Indexing Plunger. M8 Thread. 1mm Thread Pitch. 4mm Pin Diameter. Without Locking Slot. Not Hardened. Stainless Steel.

Indexing Plunger. M6 Thread. 0.75mm Thread Pitch. 3mm Pin Diameter. Without Locking Slot. Hardened. Steel.

Indexing Plunger. M8 Thread. 1mm Thread Pitch. 4mm Pin Diameter. Without Locking Slot. Hardened. Steel.

Indexing Plunger. M6 Thread. 0.75mm Thread Pitch. 3mm Pin Diameter. With Locking Slot. Hardened. Steel.

Indexing Plunger. M8 Thread. 1mm Thread Pitch. 4mm Pin Diameter. With Locking Slot. Hardened. Steel.

Indexing Plunger. M8 Thread. 1mm Thread Pitch. 4mm Pin Diameter. Without Locking Slot. Hardened. Steel.

Indexing Plunger. M8 Thread. 1mm Thread Pitch. 4mm Pin Diameter. With Locking Slot. Hardened. Stainless Steel.

Indexing Plunger. M10 Thread. 1mm Thread Pitch. 5mm Pin Diameter. Without Locking Slot. Hardened. Steel.

Indexing Plunger. M10 Thread. 1mm Thread Pitch. 5mm Pin Diameter. With Locking Slot. Hardened. Steel.

Indexing Plunger. M10 Thread. 1mm Thread Pitch. 5mm Pin Diameter. With Locking Slot. Hardened. Stainless Steel.

Indexing Plunger. M12 Thread. 1.5mm Thread Pitch. 6mm Pin Diameter. Without Locking Slot. Hardened. Steel.

Indexing Plunger. M10 Thread. 1mm Thread Pitch. 5mm Pin Diameter. Without Locking Slot. Hardened. Steel.

Indexing Plunger. M12 Thread. 1.5mm Thread Pitch. 6mm Pin Diameter. With Locking Slot. Hardened. Stainless Steel.

Indexing Plunger. M16 Thread. 1.5mm Thread Pitch. 8mm Pin Diameter. Without Locking Slot. Hardened. Steel.

Indexing Plunger. M12 Thread. 1.5mm Thread Pitch. 6mm Pin Diameter. Without Locking Slot. Hardened. Steel.

Indexing Plunger. M12 Thread. 1.5mm Thread Pitch. 6mm Pin Diameter. With Locking Slot. Hardened. Steel.

Indexing Plunger. M16 Thread. 1.5mm Thread Pitch. 8mm Pin Diameter. With Locking Slot. Hardened. Stainless Steel.

Indexing Plunger. M20 Thread. 1.5mm Thread Pitch. 10mm Pin Diameter. Without Locking Slot. Hardened. Steel.

Indexing Plunger. M16 Thread. 1.5mm Thread Pitch. 8mm Pin Diameter. Without Locking Slot. Hardened. Steel.

Indexing Plunger. M16 Thread. 1.5mm Thread Pitch. 8mm Pin Diameter. With Locking Slot. Hardened. Steel.

Indexing Plunger. M20 Thread. 1.5mm Thread Pitch. 10mm Pin Diameter. With Locking Slot. Hardened. Stainless Steel.

Indexing Plunger. M20 Thread. 1.5mm Thread Pitch. 12mm Pin Diameter. Without Locking Slot. Hardened. Steel.

Indexing Plunger. M20 Thread. 1.5mm Thread Pitch. 10mm Pin Diameter. Without Locking Slot. Hardened. Steel.

Indexing Plunger. M20 Thread. 1.5mm Thread Pitch. 10mm Pin Diameter. With Locking Slot. Hardened. Steel.

Indexing Plunger. M20 Thread. 1.5mm Thread Pitch. 12mm Pin Diameter. With Locking Slot. Hardened. Stainless Steel.

Indexing Plunger. M24 Thread. 2mm Thread Pitch. 16mm Pin Diameter. Without Locking Slot. Hardened. Steel.
