K0338 Indexing Plungers With Red Grip Form D In Steel

List view Grid view
K0338 Indexing Plungers With Red Grip Form D In Steel

Product description:
Indexing plungers are used where any change in locking position due to lateral forces should be prevented. A new locking position can only be attained after the pin has been manually disengaged. Forms C or D should be used where the plunger remains disengaged for an extended period and the indexing pin prevented from springing back.

Material:
Steel version:
Threaded sleeve and indexing pin free-cutting steel.
Spring 1.4310.
Mushroom grip thermoplastic, traffic red RAL3020.

Version:
Steel version:
Threaded sleeve black oxidised.
Indexing pin hardened, ground and black oxidised.
Mushroom grip traffic red RAL3020.

Accessory:
Spacer rings K0665.
Fastening sets for thin-walled parts K2146.

Indexing Plunger. M12 Thread. 1.5mm Thread Pitch. 6mm Pin Diameter. With Locking Slot. Hardened. Steel.

K0338 Indexing Plungers With Red Grip Form D In Steel

Quick Filters

Choose Vertical Base Type

Flat

Side Mount

Straight

Choose Horizontal Base Type

Flat

Side Mount

Straight

Choose Stroke Length

0-40mm

41-80mm

81mm+

Choose Type

Hook

Latch

Vertical Latch

Component colour

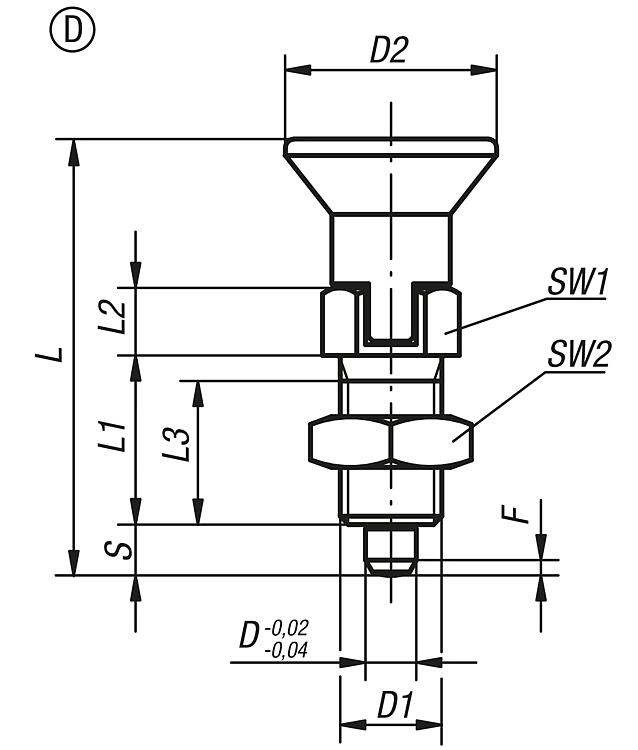

D
