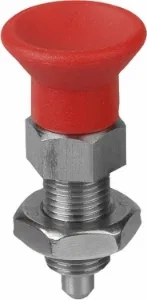

Product description:
Indexing plungers are used where any change in locking position due to lateral forces should be prevented. A new locking position can only be attained after the pin has been manually disengaged. Forms C or D should be used where the plunger remains disengaged for an extended period and the indexing pin prevented from springing back.
Material:
Steel version:
Threaded sleeve and indexing pin free-cutting steel.
Spring 1.4310.
Mushroom grip thermoplastic, traffic red RAL3020.
Version:
Steel version:
Threaded sleeve black oxidised.
Indexing pin hardened, ground and black oxidised.
Mushroom grip traffic red RAL3020.
Accessory:
Spacer rings K0665.
Fastening sets for thin-walled parts K2146.
Quick Filters
Choose Vertical Base Type
Flat
Side Mount
Straight
Choose Horizontal Base Type
Flat
Side Mount
Straight
Choose Stroke Length
0-40mm
41-80mm
81mm+
Choose Type
Hook
Latch
Vertical Latch

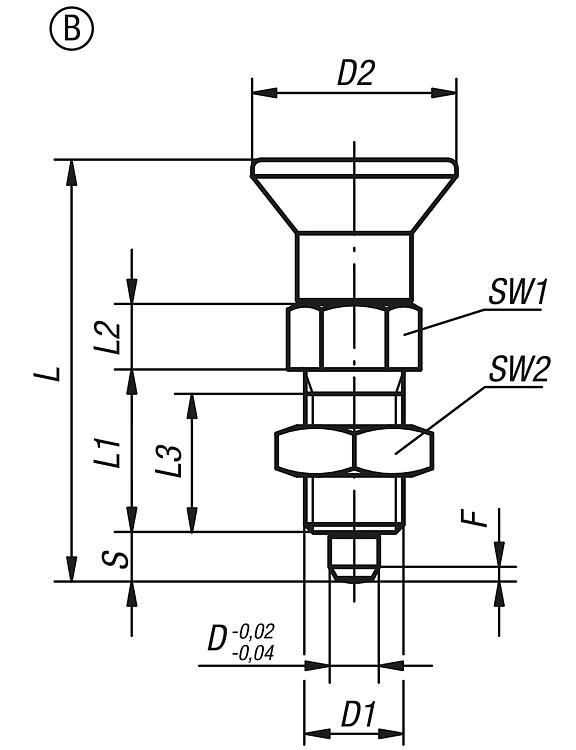

Component colour |
D |
D1 |
D2 |
Fx30° |
L |
L1 |
L2 |
L3 |
Locknut |
Lockout |
Spring force final pressure F2 approx. N |
Spring force initial pressure F1 approx. N |
Surface finish / body |
SW1 |
SW2 |
Travel S |
Price |
Price |
Compare |
Qty |
Basket |
|
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
FILTERS |
Basket |
|||||||||||||||||||||
K0338.290384 View productIndexing Plunger. M6 Thread. 0.75mm Thread Pitch. 3mm Pin Diameter. Without Locking Slot. Hardened. Steel. |
Red | 3 | M6x0.75 | 14 | 0.8 | 31.5 | 12 | 5 | 10 | with locknut | No | 10 | 4.5 | Hardened | 8 | 10 | 3.5 | £9.00 £10.80 |
0 Dispatched 03/07/25 |
Component colour |
D |
D1 |
D2 |
Fx30° |
L |
L1 |
L2 |
L3 |
Locknut |
Lockout |
Spring force final pressure F2 approx. N |
Spring force initial pressure F1 approx. N |
Surface finish / body |
SW1 |
SW2 |
Travel S |
Price |
Price |
Compare |
Qty |
Basket |
|
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
FILTERS |
Basket |
|||||||||||||||||||||
K0338.200484 View productIndexing Plunger. M8 Thread. 1mm Thread Pitch. 4mm Pin Diameter. Without Locking Slot. Hardened. Steel. |
Red | 4 | M8X1 | 18 | 1 | 38.5 | 15 | 6 | 13 | with locknut | No | 12 | 6 | Hardened | 10 | 13 | 4 | £8.56 £10.27 |
0 Dispatched 03/07/25 |
Component colour |
D |
D1 |
D2 |
Fx30° |
L |
L1 |
L2 |
L3 |
Locknut |
Lockout |
Spring force final pressure F2 approx. N |
Spring force initial pressure F1 approx. N |
Surface finish / body |
SW1 |
SW2 |
Travel S |
Price |
Price |
Compare |
Qty |
Basket |
|
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
FILTERS |
Basket |
|||||||||||||||||||||
K0338.210584 View productIndexing Plunger. M10 Thread. 1mm Thread Pitch. 5mm Pin Diameter. Without Locking Slot. Hardened. Steel. |
Red | 5 | M10X1 | 21 | 1.3 | 43.5 | 17 | 7 | 15 | with locknut | No | 12 | 5 | Hardened | 13 | 17 | 5 | £8.13 £9.76 |
0 Dispatched 03/07/25 |
Component colour |
D |
D1 |
D2 |
Fx30° |
L |
L1 |
L2 |
L3 |
Locknut |
Lockout |
Spring force final pressure F2 approx. N |
Spring force initial pressure F1 approx. N |
Surface finish / body |
SW1 |
SW2 |
Travel S |
Price |
Price |
Compare |
Qty |
Basket |
|
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
FILTERS |
Basket |
|||||||||||||||||||||
K0338.220684 View productIndexing Plunger. M12 Thread. 1.5mm Thread Pitch. 6mm Pin Diameter. Without Locking Slot. Hardened. Steel. |
Red | 6 | M12X1.5 | 25 | 1.8 | 51.7 | 20 | 8 | 17 | with locknut | No | 14 | 6 | Hardened | 14 | 19 | 6 | £9.02 £10.82 |
0 Dispatched 03/07/25 |
Component colour |
D |
D1 |
D2 |
Fx30° |
L |
L1 |
L2 |
L3 |
Locknut |
Lockout |
Spring force final pressure F2 approx. N |
Spring force initial pressure F1 approx. N |
Surface finish / body |
SW1 |
SW2 |
Travel S |
Price |
Price |
Compare |
Qty |
Basket |
|
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
FILTERS |
Basket |
|||||||||||||||||||||
K0338.230884 View productIndexing Plunger. M16 Thread. 1.5mm Thread Pitch. 8mm Pin Diameter. Without Locking Slot. Hardened. Steel. |
Red | 8 | M16x1.5 | 33 | 2.3 | 68 | 26 | 10 | 23 | with locknut | No | 35 | 15 | Hardened | 19 | 24 | 8 | £11.78 £14.14 |
0 Dispatched 03/07/25 |
Component colour |
D |
D1 |
D2 |
Fx30° |
L |
L1 |
L2 |
L3 |
Locknut |
Lockout |
Spring force final pressure F2 approx. N |
Spring force initial pressure F1 approx. N |
Surface finish / body |
SW1 |
SW2 |
Travel S |
Price |
Price |
Compare |
Qty |
Basket |
|
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
FILTERS |
Basket |
|||||||||||||||||||||
K0338.241084 View productIndexing Plunger. M20 Thread. 1.5mm Thread Pitch. 10mm Pin Diameter. Without Locking Slot. Hardened. Steel. |
Red | 10 | M20x1.5 | 33 | 2.8 | 74 | 28 | 12 | 25 | with locknut | No | 34 | 15 | Hardened | 22 | 30 | 10 | £16.77 £20.12 |
0 Dispatched 03/07/25 |
Component colour |
D |
D1 |
D2 |
Fx30° |
L |
L1 |
L2 |
L3 |
Locknut |
Lockout |
Spring force final pressure F2 approx. N |
Spring force initial pressure F1 approx. N |
Surface finish / body |
SW1 |
SW2 |
Travel S |
Price |
Price |
Compare |
Qty |
Basket |
|
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
FILTERS |
Basket |
|||||||||||||||||||||
K0338.241284 View productIndexing Plunger. M20 Thread. 1.5mm Thread Pitch. 12mm Pin Diameter. Without Locking Slot. Hardened. Steel. |
Red | 12 | M20x1.5 | 33 | 2.8 | 78 | 28 | 14 | 25 | with locknut | No | 39 | 15 | Hardened | 22 | 30 | 12 | £18.45 £22.14 |
0 Dispatched 03/07/25 |
Component colour |
D |
D1 |
D2 |
Fx30° |
L |
L1 |
L2 |
L3 |
Locknut |
Lockout |
Spring force final pressure F2 approx. N |
Spring force initial pressure F1 approx. N |
Surface finish / body |
SW1 |
SW2 |
Travel S |
Price |
Price |
Compare |
Qty |
Basket |
|
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
FILTERS |
Basket |
|||||||||||||||||||||
K0338.251684 View productIndexing Plunger. M24 Thread. 1.5mm Thread Pitch. 16mm Pin Diameter. Without Locking Slot. Hardened. Steel. |
Red | 16 | M24x2 | 40 | 3.2 | 96 | 32 | 18 | 28 | with locknut | No | 46 | 20 | Hardened | 27 | 36 | 16 | £20.96 £25.15 |
0 Dispatched 03/07/25 |
