Item Code: K0338.210584

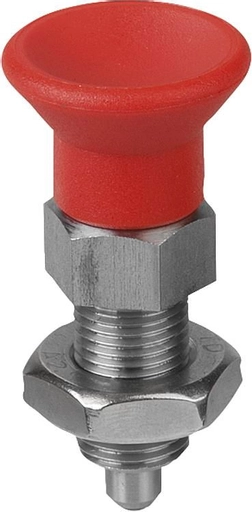

Indexing Plunger. M10 Thread. 1mm Thread Pitch. 5mm Pin Diameter. Without Locking Slot. Hardened. Steel.

Item Code: K0338.210584

Indexing Plunger. M10 Thread. 1mm Thread Pitch. 5mm Pin Diameter. Without Locking Slot. Hardened. Steel.

Material:
Steel version
Indexing pin hardened:
grade 5.8.
Stainless steel version
Indexing pin hardened:
Threaded sleeve 1.4305
Indexing pin 1.4034
Indexing pin not hardened:
Threaded sleeve 1.4305
Indexing pin 1.4305
Mushroom knob red thermoplastic
Version:
Steel version:
Indexing pin hardened, ground, black oxidised.
Stainless steel version:
Indexing pin hardened, ground and bright.
Indexing pin not hardened, ground and bright.
Note:
Indexing plungers are used to prevent any change in locking position due to lateral forces. A new locking position can only be set after the pin has been manually disengaged. Form C or D is recommended for applications where the plunger remains disengaged over a long period and the pin should be prevented from springing back.

Quick Links

Dispatch by 02/07/25

Red
5
M10X1
21
1.3
43.5
17
7
15
with locknut
No
12
5
Hardened
13
17
5

£8.13  ea. Excl VAT £9.76  ea. Inc VAT

This product is currently out of stock. Your item will be shipped when it is back in stock.

Qty

Product Wishlist & Compare Placeholder

Qty Price per item Savings
25 + £6.67 18%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify



modal placeholder

Quick Links



Material:
Steel version
Indexing pin hardened:
grade 5.8.
Stainless steel version
Indexing pin hardened:
Threaded sleeve 1.4305
Indexing pin 1.4034
Indexing pin not hardened:
Threaded sleeve 1.4305
Indexing pin 1.4305
Mushroom knob red thermoplastic
Version:
Steel version:
Indexing pin hardened, ground, black oxidised.
Stainless steel version:
Indexing pin hardened, ground and bright.
Indexing pin not hardened, ground and bright.
Note:
Indexing plungers are used to prevent any change in locking position due to lateral forces. A new locking position can only be set after the pin has been manually disengaged. Form C or D is recommended for applications where the plunger remains disengaged over a long period and the pin should be prevented from springing back.

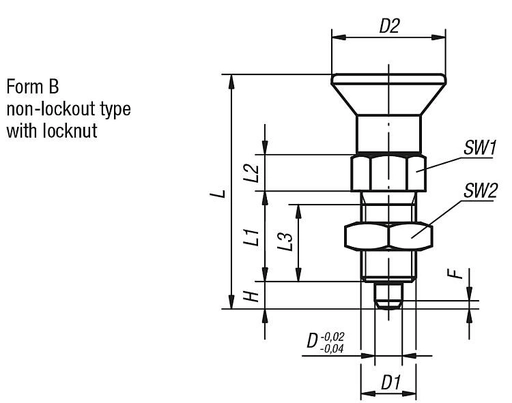

Component colourRed
D5
D1M10X1
D221
Fx30°1.3
L43.5
L117
L27
L315
Locknutwith locknut
LockoutNo
Spring force final pressure F2 approx. N12
Spring force initial pressure F1 approx. N5
Surface finish / bodyHardened
SW113
SW217
Travel S5
STP
TypeNon Lockout
Body MaterialSteel
Thread SizeM10
Pin Diameter5mm
Pin Length5mm
