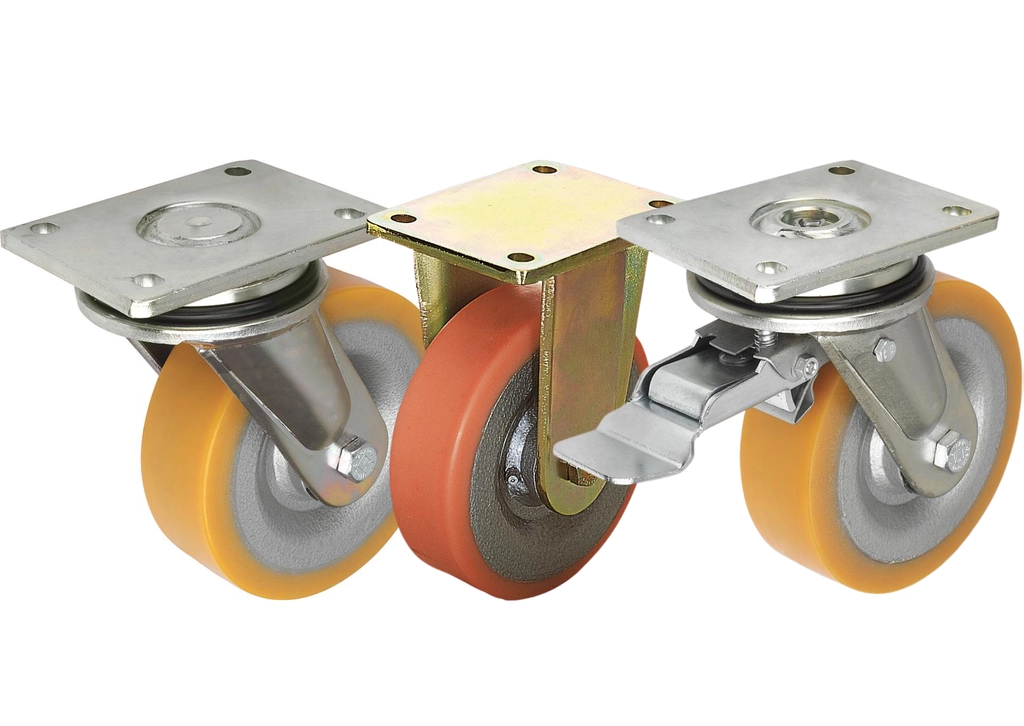

K1769- Heavy Duty Welded Steel Swivel & Fixed Castors With Extrathane® Tread

List view Grid view
K1769- Heavy Duty Welded Steel Swivel & Fixed Castors With Extrathane® Tread

Material:
Housing solid welded steel construction.
Wheels with welded steel body and Extrathane® tread.

Version:
The housing is a rugged welded steel construction.
Swivel castor housing with DIN 711 axial groove ball bearing and DIN 720 tapered roller bearing in the swivel head. Dust and splash-proof, with grease nipple. Precision ball bearings in the wheels.

Note:
Centre pin welded in, bolted and secured. Wheel axle bolted.

Wheels and Casters.

K1769- Heavy Duty Welded Steel Swivel & Fixed Castors With Extrathane® Tread

Quick Filters

Choose Vertical Base Type

Flat

Side Mount

Straight

Choose Horizontal Base Type

Flat

Side Mount

Straight

Choose Stroke Length

0-40mm

41-80mm

81mm and Over

Choose Type

Hook

Latch

Vertical Latch

Style

Cabinet Cooler Only

Cabinet Cooler For Continuous Operation

Cabinet Cooler With Thermostat Control

Style

Cabinet Cooler Only

Cabinet Cooler For Continuous Operation

Cabinet Cooler With Thermostat Control

Style

Cabinet Cooler Only

Cabinet Cooler For Continuous Operation

Cabinet Cooler With Thermostat Control

Style

Air Knife Only

Air Knife With Filter and Shim Set

Air Knife With Plumbing Kit Installed, Filter and Shim Set

Style

Air Knife Only

Air Knife With Filter and Shim Set

Style

Air Knife Only

Air Knife With Filter and Shim Set

Style

Line Vac Only

Line Vac With Filter and Bracket

Style

Line Vac Only

Line Vac With Filter

Style

Line Vac Only

Line Vac With Filter and Bracket

Style

Line Vac Only

Line Vac With Filter and Bracket

Style

Line Vac Only

Line Vac With Filter and Bracket

Style

Line Vac Only

Line Vac With Filter and Bracket

Style

Line Vac Only

Line Vac With Filter and Bracket

Style

Air Amplifier Only

Air Amplifier With Filter and Shim Set

Style

Air Amplifier Only

Air Amplifier With Filter

Item

Filter / Regulator

Air Amplifier Shim Set

Item

Filter / Regulator

Vortex Tube Generator

Vortex Tube Cold Silencer

Vortex Tube Hot Silencer

Style

Vortex Tube Only

Vortex Tube With Generator Kit, Muffler, Tubing And Filter

Clamp Type

Horizontal

Vertical

Latch

Vertical Latch

Clamp Type

Vertical

Press

Push-Pull

Clamp Type

Horizontal

Vertical

Hook

Latch

Vertical Latch

Push-Pull

Flip-Flop

Line drawing placeholder

Move drawing here

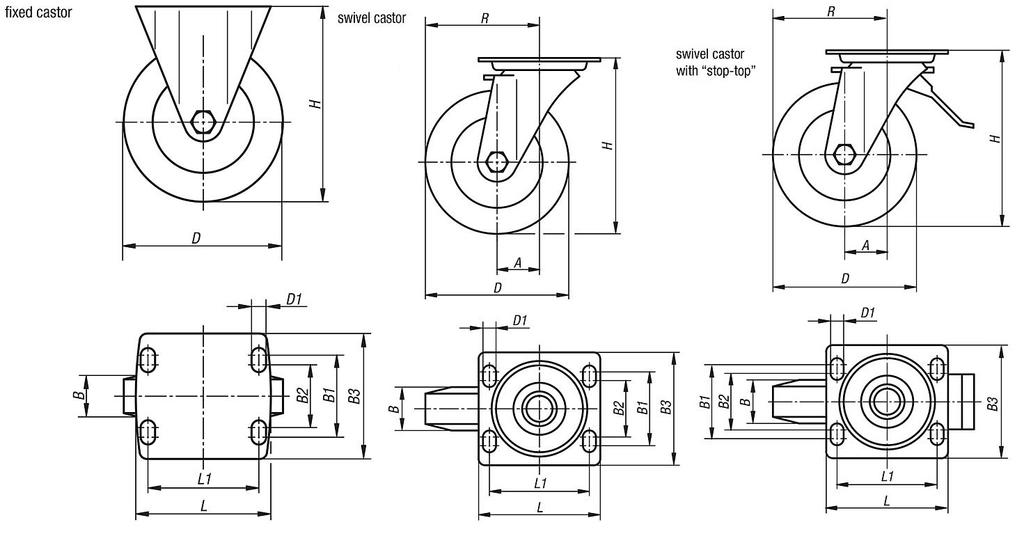

Load Kg A B B1 B2 B3 D D1 H L L1 R Version Price (Exc. Tax) Stock Qty basket

Filters

K1769.160501
View product
700 -- 50 80 75 110 160 11 205 140 105 -- Fixed Castor
£223.50
0
K1769.200501
View product
1000 -- 50 80 75 110 200 11 245 140 105 -- Fixed Castor
£245.06
0
K1769.250601
View product
1350 -- 60 105 - 140 250 14 305 175 140 -- Fixed Castor
£379.17
0
K1769.16050
View product
700 55 50 80 75 110 160 11 205 140 105 135 Swivel Castor
£339.09
0
K1769.20050
View product
1000 60 50 80 75 110 200 11 245 140 105 160 Swivel Castor
£359.12
0
K1769.25060
View product
1350 75 60 105 - 140 250 14 305 175 140 200 Swivel Castor
£505.59
0
K1769.160502
View product
700 55 50 80 75 110 160 11 205 140 105 135 Swivel Castor With Lock
£413.09
0
K1769.200502
View product
1000 60 50 80 75 110 200 11 245 140 105 160 Swivel Castor With Lock
£434.66
0
K1769.250602
View product
1350 75 60 105 - 140 250 14 305 175 140 200 Swivel Castor With Lock
£582.60
0

Showing products per page


£
£

Dispatch by 29/10/25

Item Code: K1769.160501

Fixed Castor. Without Lock. Diameter 160mm. Load 700Kg.

£223.50  Excl VAT £268.20  Inc VAT

Price breaks available

Text

Qty

Dispatch by 29/10/25

Item Code: K1769.200501

Fixed Castor. Without Lock. Diameter 200mm. Load 1000Kg.

£245.06  Excl VAT £294.07  Inc VAT

Price breaks available

Text

Qty

Dispatch by 29/10/25

Item Code: K1769.250601

Fixed Castor. Without Lock. Diameter 250mm. Load 1350Kg.

£379.17  Excl VAT £455.00  Inc VAT

Price breaks available

Text

Qty

Dispatch by 29/10/25

Item Code: K1769.16050

Swivel Castor. Without Lock. Diameter 160mm. Load 700Kg.

£339.09  Excl VAT £406.91  Inc VAT

Price breaks available

Text

Qty

Dispatch by 29/10/25

Item Code: K1769.20050

Swivel Castor. Without Lock. Diameter 200mm. Load 1000Kg.

£359.12  Excl VAT £430.94  Inc VAT

Price breaks available

Text

Qty

Dispatch by 29/10/25

Item Code: K1769.25060

Swivel Castor. Without Lock. Diameter 250mm. Load 1350Kg.

£505.59  Excl VAT £606.71  Inc VAT

Price breaks available

Text

Qty

Dispatch by 29/10/25

Item Code: K1769.160502

Swivel Castor. With Lock. Diameter 160mm. Load 700Kg.

£413.09  Excl VAT £495.71  Inc VAT

Price breaks available

Text

Qty

Dispatch by 29/10/25

Item Code: K1769.200502

Swivel Castor. With Lock. Diameter 200mm. Load 1000Kg.

£434.66  Excl VAT £521.59  Inc VAT

Price breaks available

Text

Qty

Dispatch by 29/10/25

Item Code: K1769.250602

Swivel Castor. With Lock. Diameter 250mm. Load 1350Kg.

£582.60  Excl VAT £699.12  Inc VAT

Price breaks available

Text

Qty
