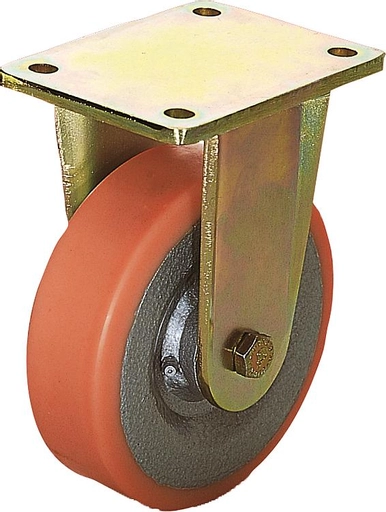

Fixed Castor. Without Lock. Diameter 250mm. Load 1350Kg.

Item Code: K1769.250601

Fixed Castor. Without Lock. Diameter 250mm. Load 1350Kg.

Item Code: K1769.250601

Fixed Castor. Without Lock. Diameter 250mm. Load 1350Kg.

Material:
Housing solid welded steel construction.
Wheels with welded steel body and Extrathane® tread.

Version:
The housing is a rugged welded steel construction.
Swivel castor housing with DIN 711 axial groove ball bearing and DIN 720 tapered roller bearing in the swivel head. Dust and splash-proof, with grease nipple. Precision ball bearings in the wheels.

Note:
Centre pin welded in, bolted and secured. Wheel axle bolted.

Quick Links

Dispatch by 07/08/25

Load Kg: 1350

B: 60

B1: 105

B2: -

B3: 140

D: 250

D1: 14

H: 305

L: 175

L1: 140

Version: Fixed Castor

£368.68 ea. Excl VAT £442.42 ea. Inc VAT

This product is currently out of stock. Your item will be shipped when it is back in stock.

Qty

Product Wishlist & Compare Placeholder

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify

modal placeholder

Quick Links

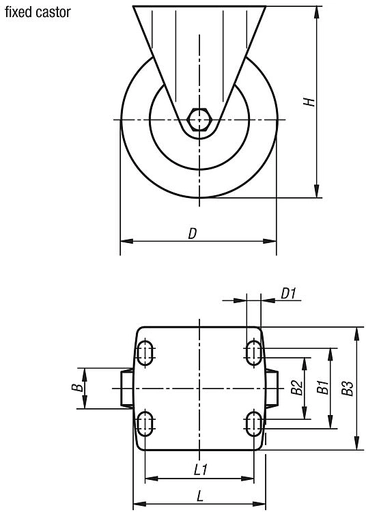

Product Dimensions

Load Kg	1350
B	60
B1	105
B2	-
B3	140
D	250
D1	14
H	305
L	175
L1	140
Version	Fixed Castor

CAD Download

Fixed Castor. Without Lock. Diameter 250mm. Load 1350Kg.

Fixed Castor. Without Lock. Diameter 250mm. Load 1350Kg.
