Back to K1769- Heavy Duty Welded Steel Swivel & Fixed Castors With Extrathane® Tread

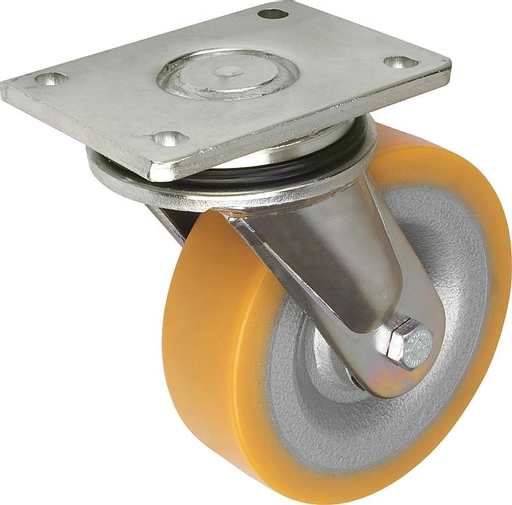

Swivel Caster. Without Lock. Diameter 250mm. Load 1350Kg.

Item Code: K1769.25060

Swivel Caster. Without Lock. Diameter 250mm. Load 1350Kg.

Item Code: K1769.25060

Swivel Caster. Without Lock. Diameter 250mm. Load 1350Kg.

Material:
Housing solid welded steel construction.
Wheels with welded steel body and Extrathane® tread.

Version:
The housing is a rugged welded steel construction.
Swivel castor housing with DIN 711 axial groove ball bearing and DIN 720 tapered roller bearing in the swivel head. Dust and splash-proof, with grease nipple. Precision ball bearings in the wheels.

Note:
Centre pin welded in, bolted and secured. Wheel axle bolted.

Quick Links

Dispatch by 13/07/25

Load Kg: 1350

A: 75

B: 60

B1: 105

B2: -

B3: 140

D: 250

D1: 14

H: 305

L: 175

L1: 140

R: 200

Version: Swivel Caster

£491.61 ea. Excl VAT £589.93 ea. Inc VAT

This product is currently out of stock. Your item will be shipped when it is back in stock.

Qty

Product Wishlist & Compare Placeholder

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify

modal placeholder

Quick Links

Description

Material:
Housing solid welded steel construction.
Wheels with welded steel body and Extrathane® tread.

Note:
Centre pin welded in, bolted and secured. Wheel axle bolted.

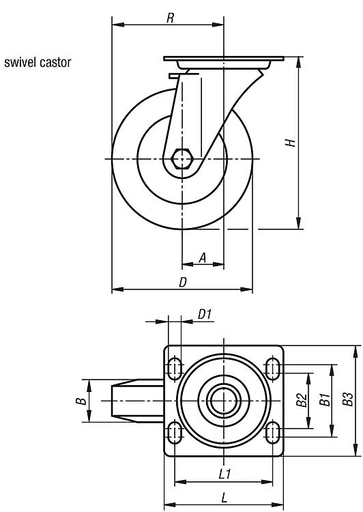

Product Dimensions

Load Kg	1350
A	75
B	60
B1	105
B2	-
B3	140
D	250
D1	14
H	305
L	175
L1	140
R	200
Version	Swivel Caster

Downloads

STP

Swivel Caster. Without Lock. Diameter 250mm. Load 1350Kg.

Swivel Caster. Without Lock. Diameter 250mm. Load 1350Kg.
