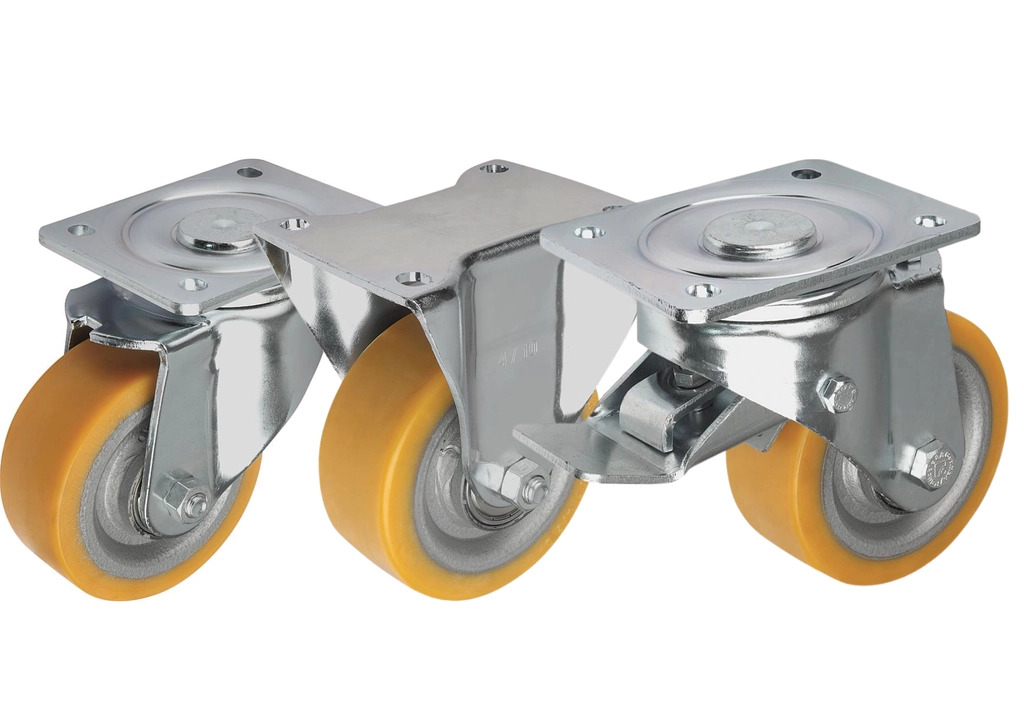

K1768- Heavy Duty Steel Plate Swivel & Fixed Castors With Extrathane® Tread

K1768- Heavy Duty Steel Plate Swivel & Fixed Castors With Extrathane® Tread

Material:
Housing, steel plate.
Wheel body die-cast aluminium with Extrathane® tread.

Version:
Housing, press-formed.
Swivel castor housing with strong fork and base plate, very robust centre pin bolted and secured. The swivel head is additionally reinforced with specially formed and hardened bearing shells.

Note:
These castors are particularly shock and impact proof. The treads resist abrasion and are elastic and low-noise. Wheel axle bolted.

Select your sizes

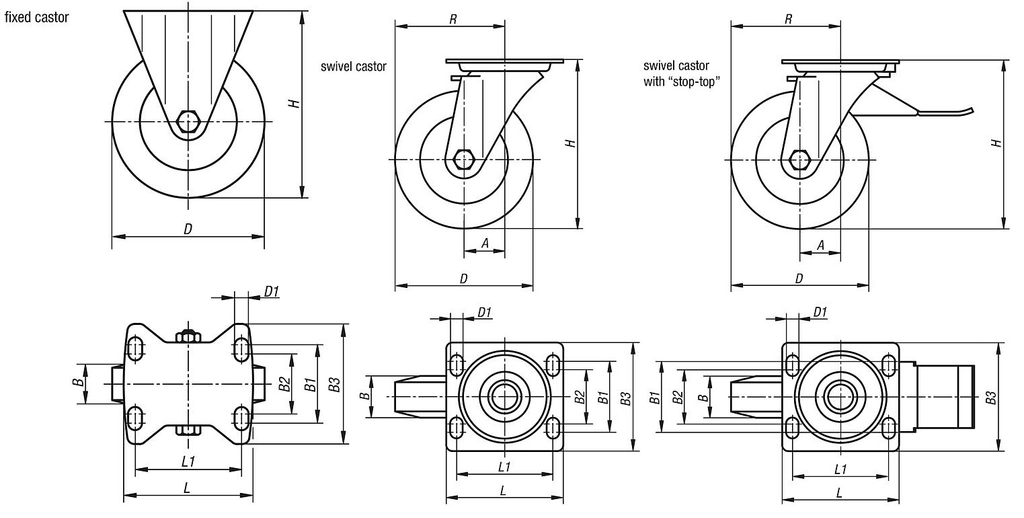

Line drawing placeholder

Move drawing here

	A	B	B1	B2	B3	D	D1	H	L	L1	Load Kg	R	Version	Price (Exc. Tax)	Stock
Filters
K1768.125501 View product	--	50	80	75	110	125	11	170	140	105	500	--	Fixed Castor	£165.77	0
K1768.160501 View product	--	50	80	75	110	160	11	202	140	105	700	--	Fixed Castor	£215.42	0
K1768.200501 View product	--	50	80	75	110	200	11	245	140	105	900	--	Fixed Castor	£240.38	0
K1768.12550 View product	55	50	80	75	110	125	11	170	140	105	500	117.5	Swivel Castor	£208.33	0
K1768.16050 View product	65	50	80	75	110	160	11	202	140	105	700	145	Swivel Castor	£265.30	0
K1768.20050 View product	70	50	80	75	110	200	11	245	140	105	900	170	Swivel Castor	£299.15	0
K1768.125502 View product	55	50	80	75	110	125	11	170	140	105	500	117.5	Swivel Castor With Lock	£249.26	0
K1768.160502 View product	65	50	80	75	110	160	11	202	140	105	700	145	Swivel Castor With Lock	£306.21	0
K1768.200502 View product	70	50	80	75	110	200	11	245	140	105	900	170	Swivel Castor With Lock	£338.27	0
