Back to K1768- Heavy Duty Steel Plate Swivel & Fixed Castors With Extrathane® Tread

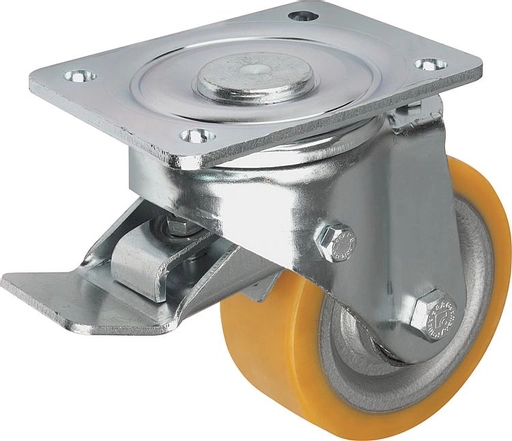

Swivel Caster. With Lock. Diameter 125mm. Load 500Kg.

Item Code: K1768.125502

Swivel Caster. With Lock. Diameter 125mm. Load 500Kg.

Item Code: K1768.125502

Swivel Caster. With Lock. Diameter 125mm. Load 500Kg.

Material:
Housing, steel plate.
Wheel body die-cast aluminium with Extrathane® tread.

Version:
Housing, press-formed.
Swivel castor housing with strong fork and base plate, very robust centre pin bolted and secured. The swivel head is additionally reinforced with specially formed and hardened bearing shells.

Note:
These castors are particularly shock and impact proof. The treads resist abrasion and are elastic and low-noise. Wheel axle bolted.

Quick Links

Dispatch by 13/07/25

Load Kg: 500

A: 55

B: 50

B1: 80

B2: 75

B3: 110

D: 125

D1: 11

H: 170

L: 140

L1: 105

R: 117,5

Version: Swivel Caster With Lock

£209.82 ea. Excl VAT £251.78 ea. Inc VAT

This product is currently out of stock. Your item will be shipped when it is back in stock.

Qty

Product Wishlist & Compare Placeholder

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify

modal placeholder

Quick Links

Description

Material:
Housing, steel plate.
Wheel body die-cast aluminium with Extrathane® tread.

Note:
These castors are particularly shock and impact proof. The treads resist abrasion and are elastic and low-noise. Wheel axle bolted.

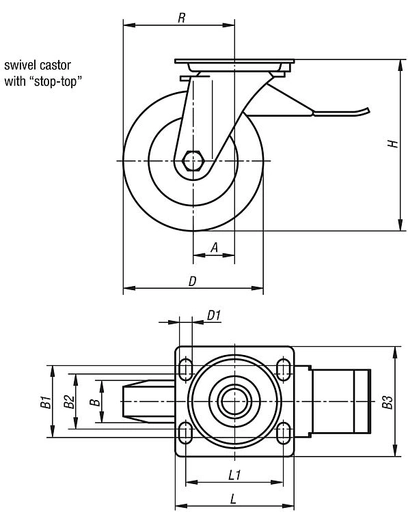

Product Dimensions

Load Kg	500
A	55
B	50
B1	80
B2	75
B3	110
D	125
D1	11
H	170
L	140
L1	105
R	117,5
Version	Swivel Caster With Lock
