Back to K1768- Heavy Duty Steel Plate Swivel & Fixed Castors With Extrathane® Tread

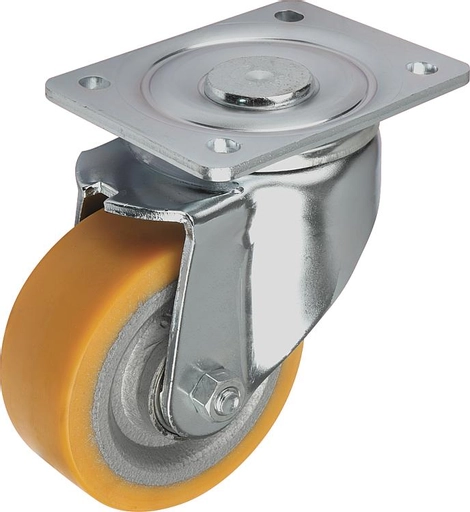

Swivel Castor. Without Lock. Diameter 160mm. Load 700Kg.

Item Code: K1768.16050

Swivel Castor. Without Lock. Diameter 160mm. Load 700Kg.

Item Code: K1768.16050

Swivel Castor. Without Lock. Diameter 160mm. Load 700Kg.

Material:
Housing, steel plate.
Wheel body die-cast aluminium with Extrathane® tread.

Version:
Housing, press-formed.
Swivel castor housing with strong fork and base plate, very robust centre pin bolted and secured. The swivel head is additionally reinforced with specially formed and hardened bearing shells.

Note:
These castors are particularly shock and impact proof. The treads resist abrasion and are elastic and low-noise. Wheel axle bolted.

Quick Links

Dispatch by 06/08/25

Load Kg: 700

A: 65

B: 50

B1: 80

B2: 75

B3: 110

D: 160

D1: 11

H: 202

L: 140

L1: 105

R: 145

Version: Swivel Castor

£223.31 ea. Excl VAT £267.97 ea. Inc VAT

This product is currently out of stock. Your item will be shipped when it is back in stock.

Qty

Product Wishlist & Compare Placeholder

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify

modal placeholder

Quick Links

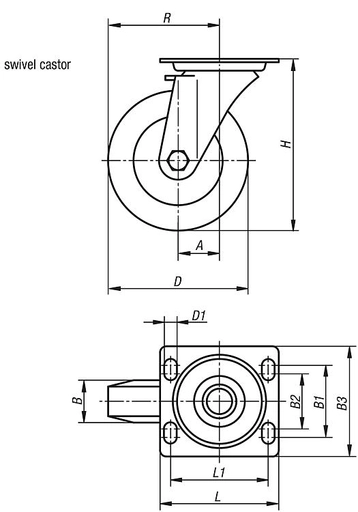

Product Dimensions

Load Kg	700
A	65
B	50
B1	80
B2	75
B3	110
D	160
D1	11
H	202
L	140
L1	105
R	145
Version	Swivel Castor

CAD Download

Swivel Castor. Without Lock. Diameter 160mm. Load 700Kg.

Swivel Castor. Without Lock. Diameter 160mm. Load 700Kg.
