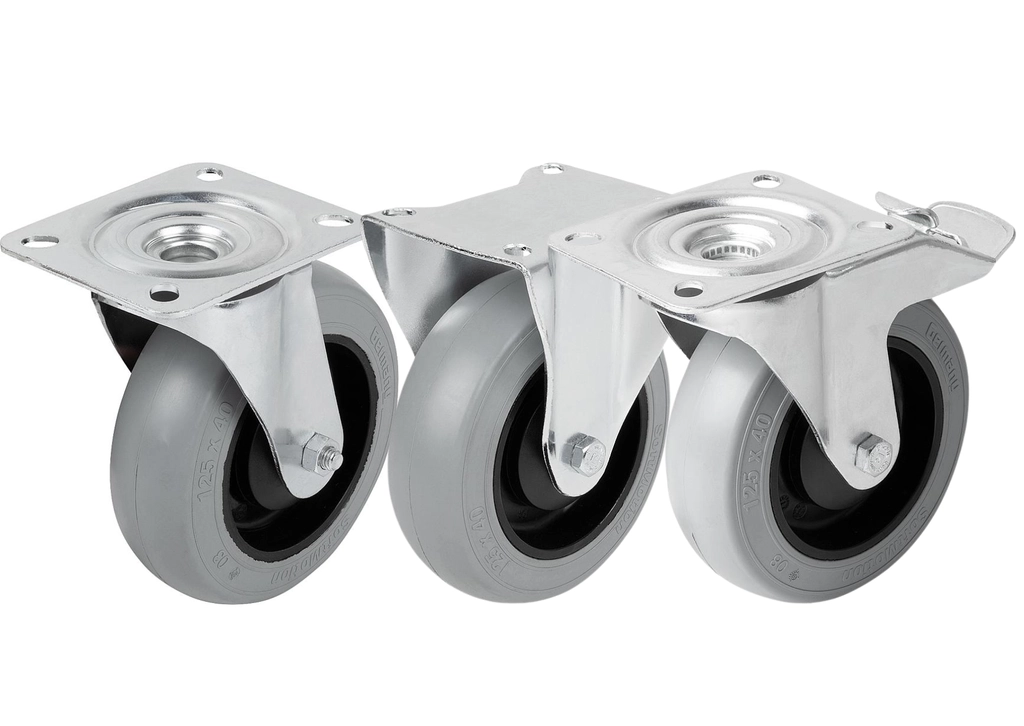

K1766 - Steel Plate Swivel and Fixed Castors With Soft Rubber Tyres

K1766 - Steel Plate Swivel and Fixed Castors With Soft Rubber Tyres

Material:
Housing sheet steel,
Wheels high quality elastic solid rubber.
Wheel rim high-quality unbreakable polyamide (wheel Ø 100 and 125 mm) or die-cast aluminium (wheel Ø from 150 mm).

Version:
Housing, press-formed.
Swivel housing, double-row ball bearings in a swivel head.
Ball bearing wheel axle bearings.

Note:
Wheel axle bolted.
Swivel and fixed castors with mounting plate.

Application:
Maximum travel comfort, excellent cushioning of the transported goods. The new soft rubber series brings noticeable noise reduction in all applications.

Temperature range:
-25 °C to +80 °C.

Select your sizes

Choose Vertical Base Type

Choose Horizontal Base Type

Choose Stroke Length

Choose Type

Style

Item

Style

Clamp Type

Line drawing placeholder

Move drawing here

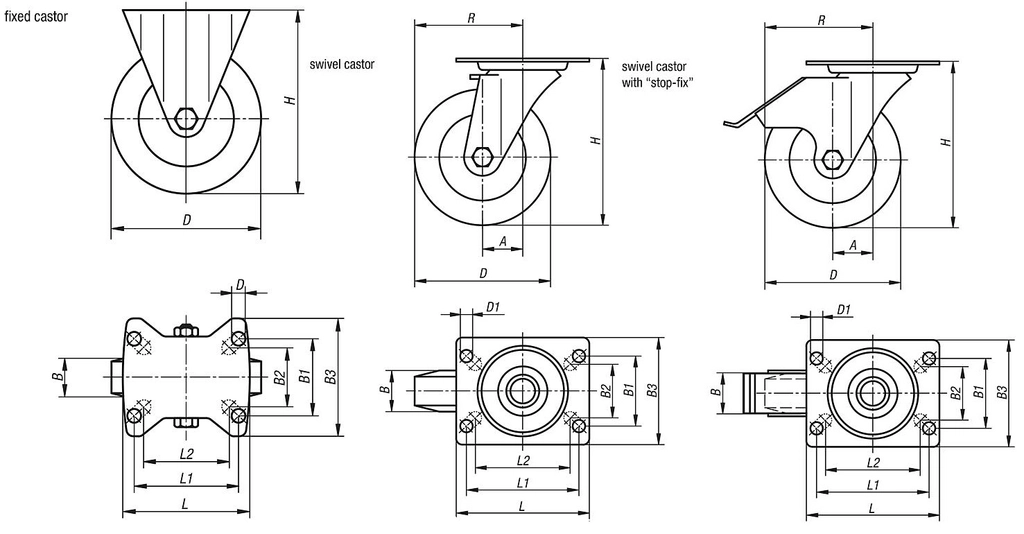

	Load Kg	A	B	B1	B2	B3	D	D1	H	L	L1	L2	R	Version	Price (Exc. Tax)	Stock
Filters
K1766.101000401 View product	150	--	40	60	55	85	100	9	125	100	80	76	--	Fixed Castor	£52.91	0
K1766.101250401 View product	150	--	40	60	55	85	125	9	150	100	80	76	--	Fixed Castor	£65.67	0
K1766.101500401 View product	280	--	40	80	75	110	150	11	190	140	105	--	--	Fixed Castor	£116.15	0
K1766.101600501 View product	300	--	50	80	75	110	160	11	195	140	105	--	--	Fixed Castor	£118.48	0
K1766.102000501 View product	300	--	50	80	75	110	200	11	235	140	105	--	--	Fixed Castor	£151.91	0
K1766.10100040 View product	150	36	40	60	55	85	100	9	125	100	80	76	86	Swivel Castor	£61.45	0
K1766.10125040 View product	150	40	40	60	55	85	125	9	150	100	80	76	102.5	Swivel Castor	£73.96	0
K1766.10150040 View product	280	54	40	80	75	110	150	11	190	140	105	--	129	Swivel Castor	£131.72	0
K1766.10160050 View product	300	54	50	80	75	110	160	11	195	140	105	--	134	Swivel Castor	£134.18	0
K1766.10200050 View product	300	54	50	80	75	110	200	11	235	140	105	--	154	Swivel Castor	£168.65	0
K1766.101000402 View product	150	36	40	60	55	85	100	9	125	100	80	76	86	Swivel Castor With Lock	£85.88	0
K1766.101250402 View product	150	40	40	60	55	85	125	9	150	100	80	76	102.5	Swivel Castor With Lock	£96.55	0
K1766.101500402 View product	280	54	50	80	75	110	150	11	190	140	105	--	129	Swivel Castor With Lock	£174.17	0
K1766.101600502 View product	300	54	50	80	75	110	160	11	195	140	105	--	134	Swivel Castor With Lock	£174.69	0
K1766.102000502 View product	300	54	50	80	75	110	200	11	235	140	105	--	154	Swivel Castor With Lock	£216.60	0

Showing products per page

Sort by

Dispatch by 28/10/25

Item Code: K1766.101000401

Fixed Castor. Without Lock. Diameter 100mm. Load 150Kg.

£52.91 Excl VAT £63.49 Inc VAT

Price breaks available

Text

Qty

Dispatch by 28/10/25

Item Code: K1766.101250401

Fixed Castor. Without Lock. Diameter 125mm. Load 150Kg.

£65.67 Excl VAT £78.80 Inc VAT

Price breaks available

Text

Qty

Dispatch by 28/10/25

Item Code: K1766.101500401

Fixed Castor. Without Lock. Diameter 150mm. Load 280Kg.

£116.15 Excl VAT £139.38 Inc VAT

Price breaks available

Text

Qty

Dispatch by 28/10/25

Item Code: K1766.101600501

Fixed Castor. Without Lock. Diameter 160mm. Load 300Kg.

£118.48 Excl VAT £142.18 Inc VAT

Price breaks available

Text

Qty

Dispatch by 28/10/25

Item Code: K1766.102000501

Fixed Castor. Without Lock. Diameter 200mm. Load 300Kg.

£151.91 Excl VAT £182.29 Inc VAT

Price breaks available

Text

Qty

Dispatch by 28/10/25

Item Code: K1766.10100040

Fixed Castor. Without Lock. Diameter 100mm. Load 150Kg.

£61.45 Excl VAT £73.74 Inc VAT

Price breaks available

Text

Qty

Dispatch by 28/10/25

Item Code: K1766.10125040

Fixed Castor. Without Lock. Diameter 125mm. Load 150Kg.

£73.96 Excl VAT £88.75 Inc VAT

Price breaks available

Text

Qty

Dispatch by 28/10/25

Item Code: K1766.10150040

Fixed Castor. Without Lock. Diameter 150mm. Load 280Kg.

£131.72 Excl VAT £158.06 Inc VAT

Price breaks available

Text

Qty

Dispatch by 28/10/25

Item Code: K1766.10160050

Fixed Castor. Without Lock. Diameter 160mm. Load 300Kg.

£134.18 Excl VAT £161.02 Inc VAT

Price breaks available

Text

Qty

Dispatch by 28/10/25

Item Code: K1766.10200050

Fixed Castor. Without Lock. Diameter 200mm. Load 300Kg.

£168.65 Excl VAT £202.38 Inc VAT

Price breaks available

Text

Qty

Dispatch by 28/10/25

Item Code: K1766.101000402

Fixed Castor. Without Lock. Diameter 100mm. Load 150Kg.

£85.88 Excl VAT £103.06 Inc VAT

Price breaks available

Text

Qty

Dispatch by 28/10/25

Item Code: K1766.101250402

Fixed Castor. Without Lock. Diameter 125mm. Load 150Kg.

£96.55 Excl VAT £115.86 Inc VAT

Price breaks available

Text

Qty

Dispatch by 28/10/25

Item Code: K1766.101500402

Fixed Castor. Without Lock. Diameter 150mm. Load 280Kg.

£174.17 Excl VAT £209.00 Inc VAT

Price breaks available

Text

Qty

Dispatch by 28/10/25

Item Code: K1766.101600502

Fixed Castor. Without Lock. Diameter 160mm. Load 300Kg.

£174.69 Excl VAT £209.63 Inc VAT

Price breaks available

Text

Qty

Dispatch by 28/10/25

Item Code: K1766.102000502

Fixed Castor. Without Lock. Diameter 200mm. Load 300Kg.

{
