Fixed Castor. Without Lock. Diameter 160mm. Load 300Kg.

Item Code: K1766.101600502

Fixed Castor. Without Lock. Diameter 160mm. Load 300Kg.

Item Code: K1766.101600502

Fixed Castor. Without Lock. Diameter 160mm. Load 300Kg.

Material:
Housing, steel plate.
Wheel tread, high quality polyurethane elastomere.
Wheel rims, die-cast aluminium.

Version:
Housing, press-formed.
Swivel housing, double-row ball bearings in a swivel head.
Ball bearing wheel axle bearings.

Note:
Wheel axle bolted.
Swivel and fixed castors with mounting plate.

Application:
Heavy loads can be easily transported using this load handling equipment. The roll and swivel resistance is reduced with this new wheel series designed for intralogistic heavy load applications.

Temperature Range:
-25 �C to +70 �C

Quick Links

Dispatch by 06/08/25

Load Kg: 300

A: 54

B: 50

B1: 80

B2: 75

B3: 110

D: 160

D1: 11

H: 195

L: 140

L1: 105

R: 134

Version: Swivel Castor With Lock

£169.86 ea. Excl VAT £203.83 ea. Inc VAT

This product is currently out of stock. Your item will be shipped when it is back in stock.

Qty

Product Wishlist & Compare Placeholder

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify

modal placeholder

Quick Links

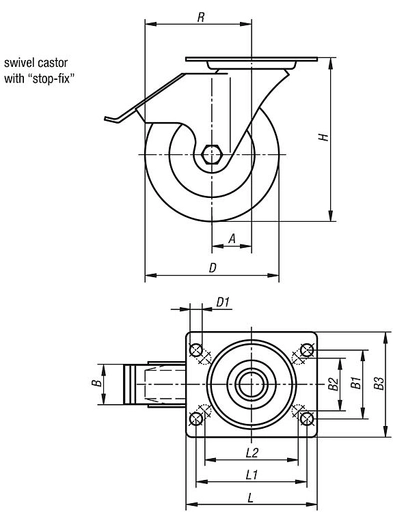

Product Dimensions

Load Kg	300
A	54
B	50
B1	80
B2	75
B3	110
D	160
D1	11
H	195
L	140
L1	105
R	134
Version	Swivel Castor With Lock

CAD Download

Fixed Castor. Without Lock. Diameter 160mm. Load 300Kg.

Fixed Castor. Without Lock. Diameter 160mm. Load 300Kg.
