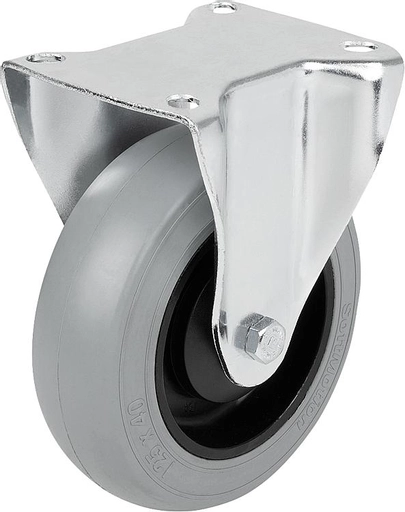

Fixed Caster. Without Lock. Diameter 200mm. Load 300Kg.

Item Code: K1766.102000501

Fixed Caster. Without Lock. Diameter 200mm. Load 300Kg.

Item Code: K1766.102000501

Fixed Caster. Without Lock. Diameter 200mm. Load 300Kg.

Material:
Housing, steel plate.
Wheel tread, high quality polyurethane elastomere.
Wheel rims, die-cast aluminium.

Version:
Housing, press-formed.
Swivel housing, double-row ball bearings in a swivel head.
Ball bearing wheel axle bearings.

Note:
Wheel axle bolted.
Swivel and fixed castors with mounting plate.

Application:
Heavy loads can be easily transported using this load handling equipment. The roll and swivel resistance is reduced with this new wheel series designed for intralogistic heavy load applications.

Temperature Range:
-25 �C to +70 �C

Quick Links

Dispatch by 13/07/25

Load Kg: 300

B: 50

B1: 80

B2: 75

B3: 110

D: 200

D1: 11

H: 235

L: 140

L1: 105

Version: Fixed Caster

£147.71 ea. Excl VAT £177.25 ea. Inc VAT

This product is currently out of stock. Your item will be shipped when it is back in stock.

Qty

Product Wishlist & Compare Placeholder

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify

modal placeholder

Quick Links

Description

Material:
Housing, steel plate.
Wheel tread, high quality polyurethane elastomere.
Wheel rims, die-cast aluminium.

Version:
Housing, press-formed.
Swivel housing, double-row ball bearings in a swivel head.
Ball bearing wheel axle bearings.

Note:
Wheel axle bolted.
Swivel and fixed castors with mounting plate.

Temperature Range:
-25 �C to +70 �C

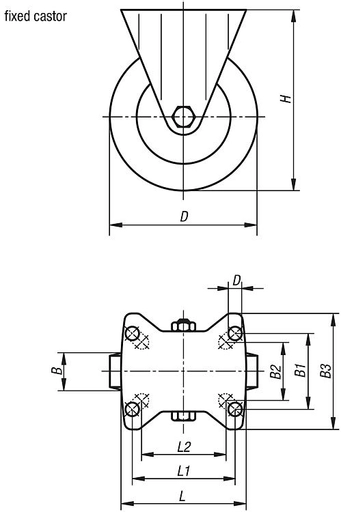

Product Dimensions

Load Kg	300
B	50
B1	80
B2	75
B3	110
D	200
D1	11
H	235
L	140
L1	105
Version	Fixed Caster

Downloads

STP

Fixed Caster. Without Lock. Diameter 200mm. Load 300Kg.

Fixed Caster. Without Lock. Diameter 200mm. Load 300Kg.
