K0630 - Indexing Plungers With Extended Pin Size M6-M24

K0630 - Indexing Plungers With Extended Pin Size M6-M24

List view Grid view

Product description:
Indexing plungers are used where any change in locking position due to lateral forces should be prevented. A new locking position can only be attained after the pin has been manually disengaged. Forms C or D should be used where the plunger remains disengaged for an extended period and the indexing pin prevented from springing back.

Material:
Steel version
Indexing pin hardened:
grade 5.8.

Stainless steel version
Indexing pin hardened:
Threaded sleeve 1.4305.
Indexing pin 1.4034.

Indexing pin not hardened:
Threaded sleeve 1.4305.
Indexing pin 1.4305.
Mushroom knob black-grey thermoplastic.

Version:
Steel version:
Threaded sleeve black oxidised.
Indexing pin hardened, ground and black oxidised.

Stainless steel version:
Threaded sleeve bright.
Indexing pin hardened and ground, bright.
Indexing pin not hardened and ground, bright.
Mushroom grip black grey

Accessory:
Spacer rings K0665.
Fastening sets for thin-walled parts K2146.

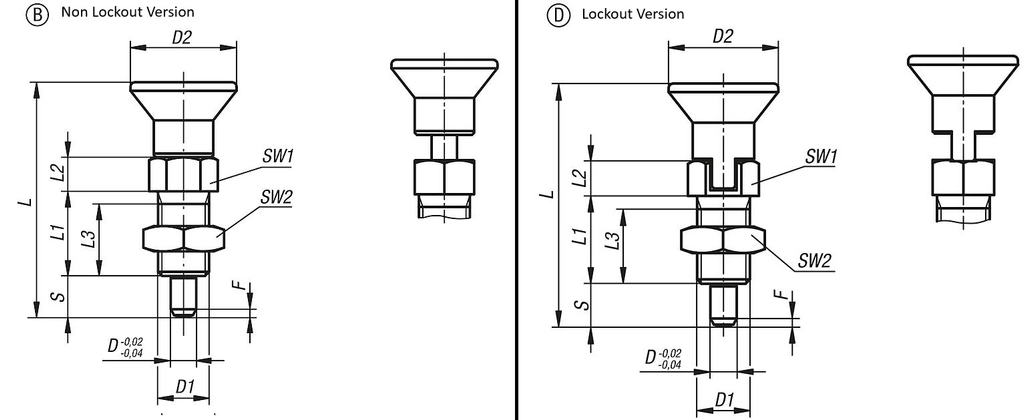

Drawing reference:
Form B: non-lockout type, with locknut
Form D: lockout type, with locknut

Indexing Plunger. M6 Thread Size. 1.5mm Thread Pitch. 4mm Pin Diameter. Without Locking Slot. Not Hardened. Stainless Steel.

Select your sizes

Choose Vertical Base Type

Choose Horizontal Base Type

Choose Stroke Length

Choose Type

Style

Item

Style

Clamp Type

Line drawing placeholder

Move drawing here

	D	D1	D2	Fx30°	L	L1	L2	L3	Lockout	Material	Pin	Spring force final pressure F2 approx. N	Spring force initial pressure F1 approx. N	SW1	SW2	Travel S	Price (Exc. Tax)	Stock
Filters
K0630.202903 View product	3	M6x0.75	14	0.8	33	12	5	10	No	Stainless Steel	Hardened	12	4.5	8	10	5	£16.58	0
K0630.202004 View product	4	M8X1	18	1	40.5	15	6	13	No	Stainless Steel	Hardened	15	6	10	13	6	£15.79	0
K0630.202105 View product	5	M10X1	21	1.3	46.5	17	7	15	No	Stainless Steel	Hardened	16	5	13	17	8	£15.06	0
K0630.202206 View product	6	M12X1.5	25	1.8	54.7	20	8	17	No	Stainless Steel	Hardened	18	6	14	19	9	£17.64	0
K0630.202308 View product	8	M16x1.5	33	2.3	72	26	10	23	No	Stainless Steel	Hardened	45	15	19	24	12	£23.57	0
K0630.202410 View product	10	M20x1.5	33	2.8	79	28	12	25	No	Stainless Steel	Hardened	43	15	22	30	15	£38.95	0
K0630.202412 View product	12	M20x1.5	33	2.8	84	28	14	25	No	Stainless Steel	Hardened	51	15	22	30	18	£42.86	0
K0630.202516 View product	16	M24x2	40	3.2	104	32	18	28	No	Stainless Steel	Hardened	50	20	27	36	24	£48.69	0
K0630.212004 View product	4	M8X1	18	1	40.5	15	6	13	No	Stainless Steel	Not Hardened	15	6	10	13	6	£15.79	0
K0630.204105 View product	5	M10X1	21	1.3	49.5	17	10	15	Yes	Stainless Steel	Hardened	16	5	13	17	8	£16.71	0
K0630.204206 View product	6	M12X1.5	25	1.8	57.7	20	11	17	Yes	Stainless Steel	Hardened	18	6	14	19	9	£19.73	0
K0630.204308 View product	8	M16x1.5	33	2.3	76	26	14	23	Yes	Stainless Steel	Hardened	45	15	19	24	12	£26.88	0
K0630.212903 View product	3	M6x0.75	14	0.8	33	12	5	10	No	Stainless Steel	Not Hardened	12	4.5	8	10	5	£16.58	0
K0630.212105 View product	5	M10X1	21	1.3	46.5	17	7	15	No	Stainless Steel	Not Hardened	16	5	13	17	8	£15.06	0
K0630.212206 View product	6	M12X1.5	25	1.8	54.7	20	8	17	No	Stainless Steel	Not Hardened	18	6	14	19	9	£17.64	25
K0630.212308 View product	8	M16x1.5	33	2.3	72	26	10	23	No	Stainless Steel	Not Hardened	45	15	19	24	12	£23.57	0
K0630.212410 View product	10	M20x1.5	33	2.8	79	28	12	25	No	Stainless Steel	Not Hardened	43	15	22	30	15	£38.95	0
K0630.212412 View product	12	M20x1.5	33	2.8	84	28	14	25	No	Stainless Steel	Not Hardened	51	15	22	30	18	£42.86	0
K0630.212516 View product	16	M24x2	40	3.2	104	32	18	28	No	Stainless Steel	Not Hardened	50	20	27	36	24	£48.69	0
K0630.22004 View product	4	M8X1	18	1	40.5	15	6	13	No	Steel	Hardened	15	6	10	13	6	£9.18	0
K0630.214105 View product	5	M10X1	21	1.3	49.5	17	10	15	Yes	Stainless Steel	Not Hardened	16	5	13	17	8	£16.71	0
K0630.214206 View product	6	M12X1.5	25	1.8	57.7	20	11	17	Yes	Stainless Steel	Not Hardened	18	6	14	19	9	£19.73	0
K0630.214308 View product	8	M16x1.5	33	2.3	76	26	14	23	Yes	Stainless Steel	Not Hardened	45	15	19	24	12	£26.88	0
K0630.22903 View product	3	M6x0.75	14	0.8	33	12	5	10	No	Steel	Hardened	12	4.5	8	10	5	£9.62	9
K0630.22105 View product	5	M10X1	21	1.3	46.5	17	7	15	No	Steel	Hardened	16	5	13	17	8	£8.74	0
K0630.22206 View product	6	M12X1.5	25	1.8	54.7	20	8	17	No	Steel	Hardened	18	6	14	19	9	£9.76	0
K0630.22308 View product	8	M16x1.5	33	2.3	72	26	10	23	No	Steel	Hardened	45	15	19	24	12	£12.74	0
K0630.22410 View product	10	M20x1.5	33	2.8	79	28	12	25	No	Steel	Hardened	43	15	22	30	15	£18.10	31
K0630.22412 View product	12	M20x1.5	33	2.8	84	28	14	25	No	Steel	Hardened	51	15	22	30	18	£19.90	11
K0630.22516 View product	16	M24x2	40	3.2	104	32	18	28	No	Steel	Hardened	50	20	27	36	24	£22.64	2
K0630.24105 View product	5	M10X1	21	1.3	49.5	17	10	15	Yes	Steel	Hardened	16	5	13	17	8	£11.02	3
K0630.24206 View product	6	M12X1.5	25	1.8	57.7	20	11	17	Yes	Steel	Hardened	18	6	14	19	9	£12.29	0
K0630.24308 View product	8	M16x1.5	33	2.3	76	26	14	23	Yes	Steel	Hardened	45	15	19	24	12	£14.87	51
