Item Code: K0630.202105

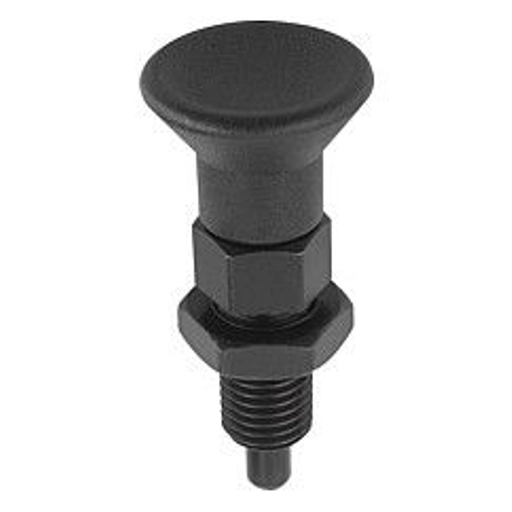

Indexing Plunger. M8 Thread Size. 1mm Thread Pitch. 5mm Pin Diameter. Without Locking Slot. Hardened. Stainless Steel.

Indexing Plunger. M8 Thread Size. 1mm Thread Pitch. 5mm Pin Diameter. Without Locking Slot. Hardened. Stainless Steel.

Item Code: K0630.202105

Indexing Plunger. M8 Thread Size. 1mm Thread Pitch. 5mm Pin Diameter. Without Locking Slot. Hardened. Stainless Steel.

Material:
- Steel version, locking pin hardened:
quality class 5.8.
- Stainless steel version, locking pin hardened:
threaded sleeve 1.4305.
Locking pin 1.4034.
- Stainless steel version, locking pin not hardened:
threaded sleeve 1.4305.
Locking pin 1.4305. Mushroom knob in anthracite grey thermoplastic. Surface finish:
- Steel version, locking pin hardened:
black oxide finish. Locking pin ground.
- Stainless steel version, locking pin hardened:
natural finish. Locking pin ground.
- Stainless steel version, locking pin not hardened:
natural finish.
Locking pin ground. Note:

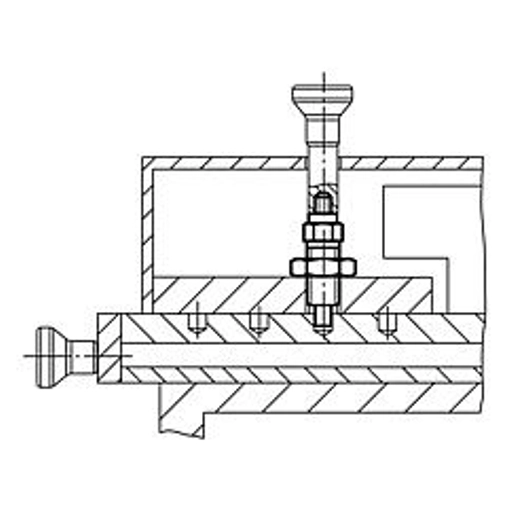

Locking bolts are used to prevent any change in locking position due to lateral forces. A new locking position can only be set after the bolt has been manually disengaged.

Quick Links

Dispatch by 30/07/25

5
M10X1
21
1.3
46.5
17
7
15
No
Stainless Steel
Hardened
16
5
13
17
8

£14.64  ea. Excl VAT £17.57  ea. Inc VAT

This product is currently out of stock. Your item will be shipped when it is back in stock.

Qty

Product Wishlist & Compare Placeholder

Qty Price per item Savings
15 + £12.00 18%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify



modal placeholder

Quick Links



Material:
- Steel version, locking pin hardened:
quality class 5.8.
- Stainless steel version, locking pin hardened:
threaded sleeve 1.4305.
Locking pin 1.4034.
- Stainless steel version, locking pin not hardened:
threaded sleeve 1.4305.
Locking pin 1.4305. Mushroom knob in anthracite grey thermoplastic. Surface finish:
- Steel version, locking pin hardened:
black oxide finish. Locking pin ground.
- Stainless steel version, locking pin hardened:
natural finish. Locking pin ground.
- Stainless steel version, locking pin not hardened:
natural finish.
Locking pin ground. Note:
Locking bolts are used to prevent any change in locking position due to lateral forces. A new locking position can only be set after the bolt has been manually disengaged.

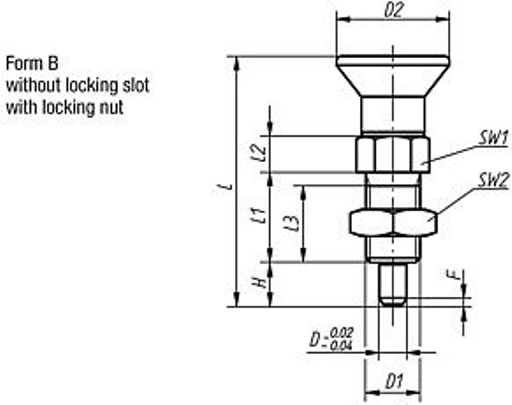

D5
D1M10X1
D221
Fx30°1.3
L46.5
L117
L27
L315
LockoutNo
MaterialStainless Steel
PinHardened
Spring force final pressure F2 approx. N16
Spring force initial pressure F1 approx. N5
SW113
SW217
Travel S8
STP
TypeNon Lockout
Body MaterialStainless Steel
Thread SizeM10
Pin Diameter5mm
Pin Length8mm
