Item Code: K0630.214206

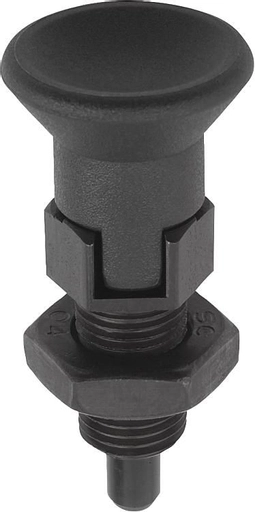

Indexing Plunger. M12 Thread Size. 1.5mm Thread Pitch. 6mm Pin Diameter. With Locking Slot. Not Hardened. Stainless Steel.

Indexing Plunger. M12 Thread Size. 1.5mm Thread Pitch. 6mm Pin Diameter. With Locking Slot. Not Hardened. Stainless Steel.

Item Code: K0630.214206

Indexing Plunger. M12 Thread Size. 1.5mm Thread Pitch. 6mm Pin Diameter. With Locking Slot. Not Hardened. Stainless Steel.

Material:
Steel version:
Indexing pin hardened:
grade 5.8.
Stainless steel version,
Indexing pin hardened
Threaded sleeve 1.4305
Indexing pin 1.4034
Indexing pin not hardened
Threaded sleeve 1.4305
Indexing pin 1.4305
Mushroom knob black grey thermoplastic
Version:
Steel version:
Indexing pin hardened, ground, black oxidised.
Stainless steel version:
Indexing pin hardened, ground and bright.
Indexing pin not hardened, ground and bright.
Note:
Indexing plungers are used to prevent any change in locking position due to lateral forces. A new locking position can only be set after the pin has been manually disengaged.

Quick Links

Dispatch by 31/07/25

6
M12X1.5
25
1.8
57.7
20
11
17
Yes
Stainless Steel
Not Hardened
18
6
14
19
9

£19.18  ea. Excl VAT £23.02  ea. Inc VAT

This product is currently out of stock. Your item will be shipped when it is back in stock.

Qty

Product Wishlist & Compare Placeholder

Qty Price per item Savings
15 + £15.73 18%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify



modal placeholder

Quick Links



Material:
Steel version:
Indexing pin hardened:
grade 5.8.
Stainless steel version,
Indexing pin hardened
Threaded sleeve 1.4305
Indexing pin 1.4034
Indexing pin not hardened
Threaded sleeve 1.4305
Indexing pin 1.4305
Mushroom knob black grey thermoplastic
Version:
Steel version:
Indexing pin hardened, ground, black oxidised.
Stainless steel version:
Indexing pin hardened, ground and bright.
Indexing pin not hardened, ground and bright.
Note:
Indexing plungers are used to prevent any change in locking position due to lateral forces. A new locking position can only be set after the pin has been manually disengaged.

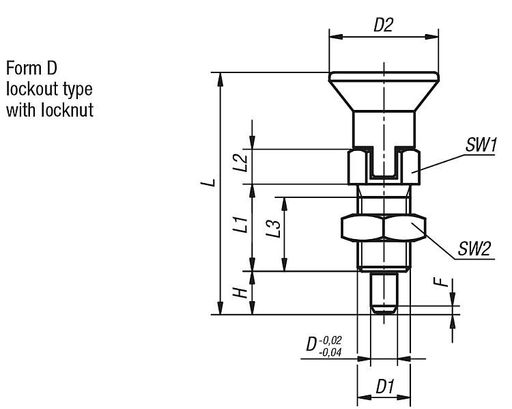

D6
D1M12X1.5
D225
Fx30°1.8
L57.7
L120
L211
L317
LockoutYes
MaterialStainless Steel
PinNot Hardened
Spring force final pressure F2 approx. N18
Spring force initial pressure F1 approx. N6
SW114
SW219
Travel S9
STP
TypeLockout
Body MaterialStainless Steel
Thread SizeM12
Pin Diameter6mm
Pin Length9mm
