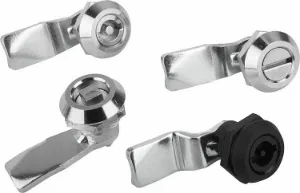

K0522 - Cabinet Latch Quarter Turn Version

List view Grid view
K0522 - Cabinet Latch Quarter Turn Version

Tounge Not Supplied Please Order Separately. Part Number K0523

Material:
Housing, actuator and nut, die-cast zinc or PA6 GFR 30 plastic.
Flat seal rubber.

Version:
Housing, actuator and nut chrome-plated or black.Note:Quarter-turn lock with spring-loaded tongue. Right or left deployment. The lock can be installed pre-assembled. The fastening nut is an earthing nut with teeth one side.

Vibration-proof (except plastic version), a catch prevents independent opening. Water and dust tight according to IP65.

Please order the desired tongue type separately. Every tongue can be combined with every housing.

*Dimension A results from the combination of the quarter turn lock and the tongue and is specified with the matching tongues.

Accessory:
Key K0535.
Tongue for steel quarter-turn lock K0523.

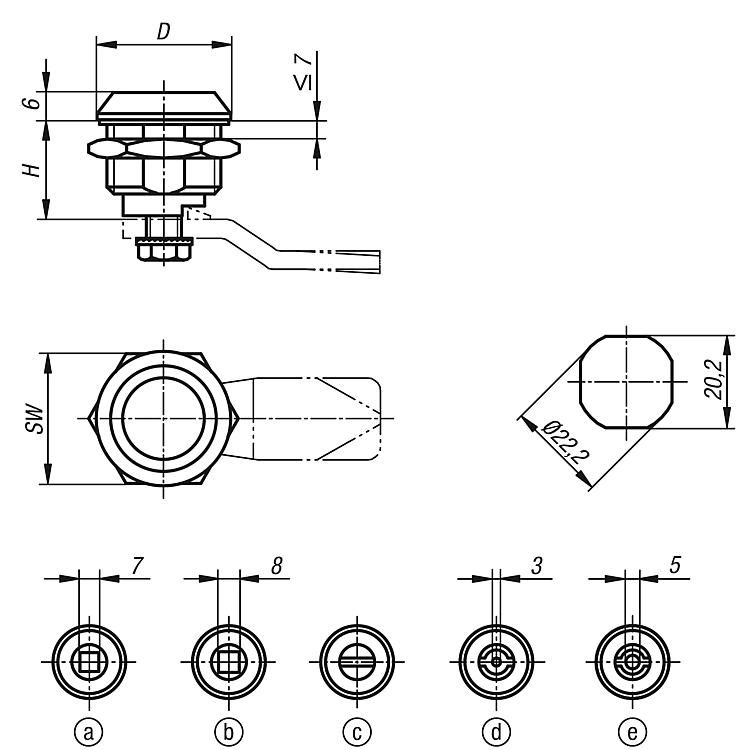

Drawing reference:
Actuation:
a) square 7 mm
b) square 8 mm
c) slit
d) double lug 3 mm
e) double lug 5 mm

Threaded Insert. Standard. M10 Internal Thread. M14x1.5 External Thread. Stainless Steel.

K0522 - Cabinet Latch Quarter Turn Version

Quick Filters

Choose Vertical Base Type

Flat

Side Mount

Straight

Choose Horizontal Base Type

Flat

Side Mount

Straight

Choose Stroke Length

0-40mm

41-80mm

81mm and Over

Choose Type

Hook

Latch

Vertical Latch

Style

Cabinet Cooler Only

Cabinet Cooler For Continuous Operation

Cabinet Cooler With Thermostat Control

Style

Cabinet Cooler Only

Cabinet Cooler For Continuous Operation

Cabinet Cooler With Thermostat Control

Style

Cabinet Cooler Only

Cabinet Cooler For Continuous Operation

Cabinet Cooler With Thermostat Control

Style

Air Knife Only

Air Knife With Filter and Shim Set

Air Knife With Plumbing Kit Installed, Filter and Shim Set

Style

Air Knife Only

Air Knife With Filter and Shim Set

Style

Air Knife Only

Air Knife With Filter and Shim Set

Style

Line Vac Only

Line Vac With Filter and Bracket

Style

Line Vac Only

Line Vac With Filter

Style

Line Vac Only

Line Vac With Filter and Bracket

Style

Line Vac Only

Line Vac With Filter and Bracket

Style

Line Vac Only

Line Vac With Filter and Bracket

Style

Line Vac Only

Line Vac With Filter and Bracket

Style

Line Vac Only

Line Vac With Filter and Bracket

Style

Air Amplifier Only

Air Amplifier With Filter and Shim Set

Style

Air Amplifier Only

Air Amplifier With Filter

Item

Filter / Regulator

Air Amplifier Shim Set

Item

Filter / Regulator

Vortex Tube Generator

Vortex Tube Cold Silencer

Vortex Tube Hot Silencer

Style

Vortex Tube Only

Vortex Tube With Generator Kit, Muffler, Tubing And Filter

Clamp Type

Horizontal

Vertical

Latch

Vertical Latch

Clamp Type

Vertical

Press

Push-Pull

Clamp Type

Horizontal

Vertical

Hook

Latch

Vertical Latch

Push-Pull

Flip-Flop

Line drawing placeholder

Move drawing here

Actuation D H Material S max. SW Price (Exc. Tax) Stock Qty basket

Filters

K0522.17181
View product
Square 7mm 30 18.5 Zinc 7 27
£3.28
0
K0522.18181
View product
Square 8mm 30 18.5 Zinc 7 27
£3.28
0
K0522.20181
View product
Slot 30 18.5 Zinc 7 27
£3.28
0
K0522.20185
View product
Slot 28 18.5 Plastic 7 27
£1.95
5
K0522.43181
View product
Double Lug 3mm 30 18.5 Zinc 7 27
£3.28
17
K0522.43185
View product
Double Lug 3mm 28 18.5 Plastic 7 27
£1.95
1
K0522.45181
View product
Double Lug 5mm 30 18.5 Zinc 7 27
£3.28
0
K0522.45185
View product
Double Lug 5mm 28 18.5 Plastic 7 27
£1.95
25
