Item Code: K0522.18181

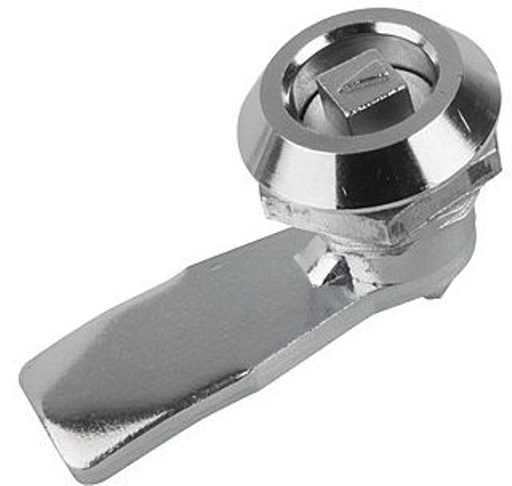

Quarter Turn Lock. 8mm Square Lock. 18.5mm Height. Zinc.

Item Code: K0522.18181

Quarter Turn Lock. 8mm Square Lock. 18.5mm Height. Zinc.

Tongue Not Supplied. Please Order Separately

Material, surface finish:
Housing, actuator and nut die cast zinc, chromium-plated, or PA6 plastic GFR 30, black.
Rubber flat packing.
Tongue steel, galvanized.

Note:
Compression latch with spring-supported tongue. Usable on the right or the left, with a 90° closing path. The Compression latch can be installed pre-assembled. The fastening nut is constructed as an earthing nut with claws on one side.

Vibratrion-proof (except plastic version); a catch prevents independent opening. Protected from water and dust in accordance with IP65.

Please order the desired version of the tongue separately. Every tongue can be combined with every housing.

Quick Links

Dispatch by 10/06/25

7
Zinc
30
18.5
27
Square 8mm

£3.19  ea. Excl VAT £3.83  ea. Inc VAT

This product is currently out of stock. Your item will be shipped when it is back in stock.

Qty

Product Wishlist & Compare Placeholder

Qty Price per item Savings
30 + £2.68 16%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify



modal placeholder

Quick Links



Tongue Not Supplied. Please Order Separately

Material, surface finish:
Housing, actuator and nut die cast zinc, chromium-plated, or PA6 plastic GFR 30, black.
Rubber flat packing.
Tongue steel, galvanized.

Note:
Compression latch with spring-supported tongue. Usable on the right or the left, with a 90° closing path. The Compression latch can be installed pre-assembled. The fastening nut is constructed as an earthing nut with claws on one side.

Vibratrion-proof (except plastic version); a catch prevents independent opening. Protected from water and dust in accordance with IP65.

Please order the desired version of the tongue separately. Every tongue can be combined with every housing.

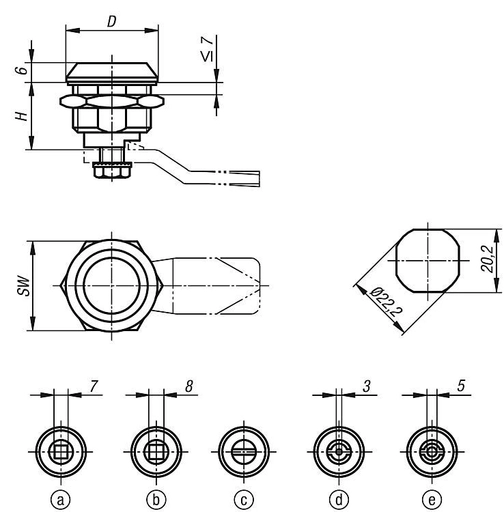

S max.7
MaterialZinc
D30
H18.5
SW27
ActuationSquare 8mm
STP
MaterialDie Cast Zinc
ConnectionSquare
Height18.5mm
Diameter30mm
