Item Code: K0522.20185

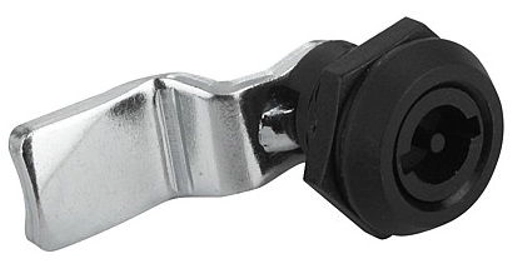

Quarter Turn Lock. Slot Lock. 18.5mm Height. Plastic.

Item Code: K0522.20185

Quarter Turn Lock. Slot Lock. 18.5mm Height. Plastic.

Tongue Not Supplied. Please Order Separately

Material, surface finish:
Housing, actuator and nut die cast zinc, chromium-plated, or PA6 plastic GFR 30, black. Rubber flat packing.
Tongue steel, galvanized. Note:
Compression latch with spring-supported tongue. Usable on the right or the left, with a 90° closing path. The Compression latch can be installed pre-assembled. The fastening nut is constructed as an earthing nut with claws on one side. Vibratrion-proof (except plastic version); a catch prevents independent opening. Protected from water and dust in accordance with IP65. Please order the desired version of the tongue separately. Every tongue can be combined with every housing. Accessory:
Key K0535

Quick Links

5 in stock

7
Plastic
28
18.5
27
Slot

£1.90  ea. Excl VAT £2.28  ea. Inc VAT

Qty

Product Wishlist & Compare Placeholder

Qty Price per item Savings
50 + £1.63 14%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify



modal placeholder

Quick Links



Tongue Not Supplied. Please Order Separately

Material, surface finish:
Housing, actuator and nut die cast zinc, chromium-plated, or PA6 plastic GFR 30, black. Rubber flat packing.
Tongue steel, galvanized. Note:
Compression latch with spring-supported tongue. Usable on the right or the left, with a 90° closing path. The Compression latch can be installed pre-assembled. The fastening nut is constructed as an earthing nut with claws on one side. Vibratrion-proof (except plastic version); a catch prevents independent opening. Protected from water and dust in accordance with IP65. Please order the desired version of the tongue separately. Every tongue can be combined with every housing. Accessory:
Key K0535
S max.7
MaterialPlastic
D28
H18.5
SW27
ActuationSlot
STP
MaterialPlastic
ConnectionSlot
Height18.5mm
Diameter28mm
