Tounge Not Supplied Please Order Separately. Part Number K0519.
Material:
Housing and actuator die-cast zinc.
Version:
Housing and actuator chrome-plated. Wing-handle version powder-coated.
Note:

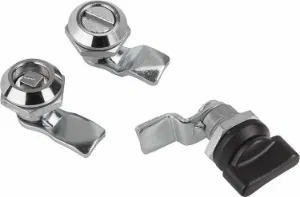

Small quarter turn lock with spring-loaded tongue. Right or left deployment. The lock can be installed pre-assembled. The fastening nut is an earthing nut with teeth one side. Please order the desired tongue type separately. Every tongue can be combined with every housing. *Dimension A results from the combination of the quarter turn lock and the tongue and is specified with the matching tongues.
Accessory:
Key K0535. Tongue for steel quarter-turn lock K0519.

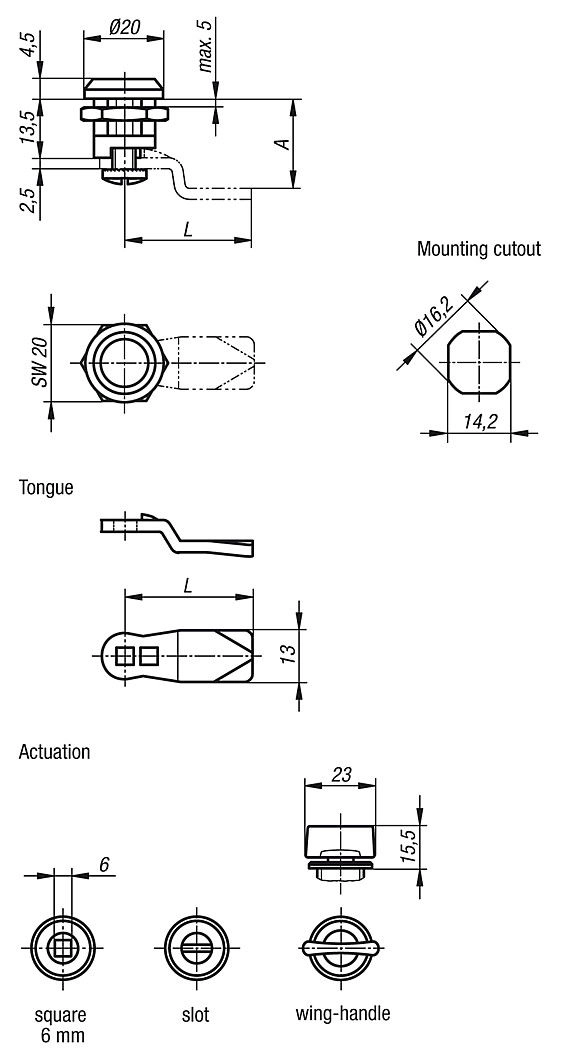

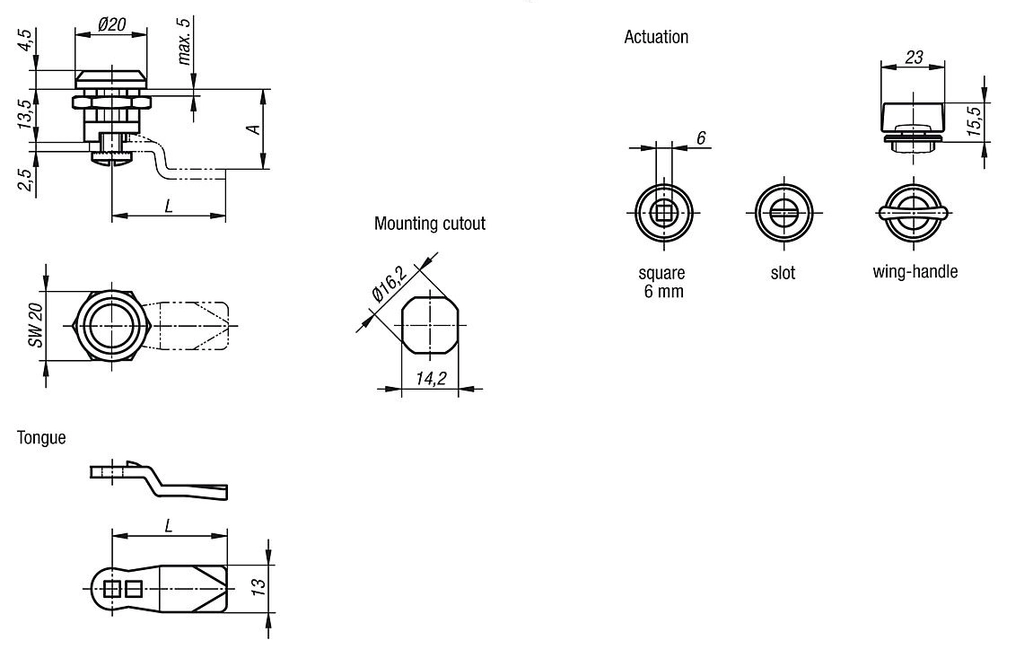

Drawing reference:
Actuation:
a) square 6 mm
b) slit
c) T-grip
Quick Filters
Choose Vertical Base Type
Flat
Side Mount
Straight
Choose Horizontal Base Type
Flat
Side Mount
Straight
Choose Stroke Length
0-40mm
41-80mm
81mm+
Choose Type
Hook
Latch
Vertical Latch
Style
Cabinet Cooler Only
Cabinet Cooler For Continuous Operation
Cabinet Cooler With Thermostat Control
Style
Cabinet Cooler Only
Cabinet Cooler For Continuous Operation
Cabinet Cooler With Thermostat Control
Style
Cabinet Cooler Only
Cabinet Cooler For Continuous Operation
Cabinet Cooler With Thermostat Control
Style
Air Knife Only
Air Knife With Filter and Shim Set
Air Knife With Plumbing Kit Installed, Filter and Shim Set
Style
Air Knife Only
Air Knife With Filter and Shim Set
Style
Air Knife Only
Air Knife With Filter and Shim Set
Style
Line Vac Only
Line Vac With Filter and Bracket
Style
Line Vac Only
Line Vac With Filter
Style
Line Vac Only
Line Vac With Filter and Bracket
Style
Line Vac Only
Line Vac With Filter and Bracket
Style
Line Vac Only
Line Vac With Filter and Bracket
Style
Line Vac Only
Line Vac With Filter and Bracket
Style
Line Vac Only
Line Vac With Filter and Bracket
Style
Air Amplifier Only
Air Amplifier With Filter and Shim Set
Style
Air Amplifier Only
Air Amplifier With Filter
Item
Filter / Regulator
Air Amplifier Shim Set
Item
Filter / Regulator
Vortex Tube Generator
Vortex Tube Cold Silencer
Vortex Tube Hot Silencer
Style
Vortex Tube Only
Vortex Tube With Generator Kit, Muffler, Tubing And Filter
A |
Actuation |
H |
Item |
L |
S max. |
SW |
Price |
Price |
Compare |
Qty |
Basket |
|
---|---|---|---|---|---|---|---|---|---|---|---|---|
FILTERS |
Basket |
|||||||||||
K0518.16131 View productQuarter Turn Lock. 6mm Square Lock. 13.5mm Height. Zinc. |
- | Square: 6mm | 13.5 | Quarter Turn Lock | - | 5 | 20 | £2.82 £3.38 |
0 Dispatched 15/09/25 |
A |
Actuation |
H |
Item |
L |
S max. |
SW |
Price |
Price |
Compare |
Qty |
Basket |
|
---|---|---|---|---|---|---|---|---|---|---|---|---|
FILTERS |
Basket |
|||||||||||
K0518.20131 View productQuarter Turn Lock. Slot Lock. 13.5mm Height. Zinc. |
- | Slot | 13.5 | Quarter Turn Lock | - | 5 | 20 | £2.82 £3.38 |
76 50+ in stock |
A |
Actuation |
H |
Item |
L |
S max. |
SW |
Price |
Price |
Compare |
Qty |
Basket |
|
---|---|---|---|---|---|---|---|---|---|---|---|---|
FILTERS |
Basket |
|||||||||||
K0518.30132 View productQuarter Turn Lock. Wing Grip. 13.5mm Height. Zinc. |
- | Wing Grip | 13.5 | Quarter Turn Lock | - | 5 | 20 | £2.98 £3.58 |
0 Dispatched 15/09/25 |
A |
Actuation |
H |
Item |
L |
S max. |
SW |
Price |
Price |
Compare |
Qty |
Basket |
|
---|---|---|---|---|---|---|---|---|---|---|---|---|
FILTERS |
Basket |
|||||||||||
K0519.125X075 View productTounge. 25mm Length. Fits 7.5mm Door. Steel. |
7,5 | - | - | Tounge | 25 | - | - | £0.50 £0.60 |
18 18 in stock |
A |
Actuation |
H |
Item |
L |
S max. |
SW |
Price |
Price |
Compare |
Qty |
Basket |
|
---|---|---|---|---|---|---|---|---|---|---|---|---|
FILTERS |
Basket |
|||||||||||
K0519.125X135 View productTounge. 25mm Length. Fits 13.5mm Door. Steel. |
13,5 | - | - | Tounge | 25 | - | - | £0.50 £0.60 |
17 17 in stock |
A |
Actuation |
H |
Item |
L |
S max. |
SW |
Price |
Price |
Compare |
Qty |
Basket |
|
---|---|---|---|---|---|---|---|---|---|---|---|---|
FILTERS |
Basket |
|||||||||||
K0519.125X195 View productTounge. 25mm Length. Fits 19.5mm Door. Steel. |
19,5 | - | - | Tounge | 25 | - | - | £0.50 £0.60 |
0 Dispatched 15/09/25 |
Showing products per page
Dispatch by 15/09/25
Item Code: K0518.16131
Quarter Turn Lock. 6mm Square Lock. 13.5mm Height. Zinc.
£2.82 Excl VAT £3.38 Inc VAT
Price breaks available
Text
50+ in stock
Item Code: K0518.20131
Quarter Turn Lock. Slot Lock. 13.5mm Height. Zinc.
£2.82 Excl VAT £3.38 Inc VAT
Price breaks available
Text
Dispatch by 15/09/25
Item Code: K0518.30132
Quarter Turn Lock. Wing Grip. 13.5mm Height. Zinc.
£2.98 Excl VAT £3.58 Inc VAT
Price breaks available
Text
18 in stock
Item Code: K0519.125X075
Tounge. 25mm Length. Fits 7.5mm Door. Steel.
£0.50 Excl VAT £0.60 Inc VAT
Price breaks available
Text
17 in stock
Item Code: K0519.125X135
Tounge. 25mm Length. Fits 13.5mm Door. Steel.
£0.50 Excl VAT £0.60 Inc VAT
Price breaks available
Text
Dispatch by 15/09/25
Item Code: K0519.125X195
Tounge. 25mm Length. Fits 19.5mm Door. Steel.
£0.50 Excl VAT £0.60 Inc VAT
Price breaks available
Text
