Item Code: K0518.20131

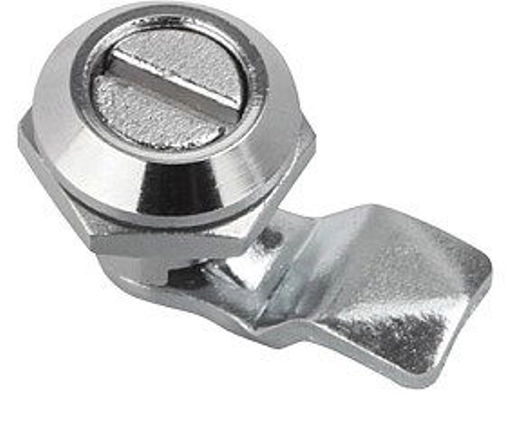

Quarter Turn Lock. Slot Lock. 13.5mm Height. Zinc.

Item Code: K0518.20131

Quarter Turn Lock. Slot Lock. 13.5mm Height. Zinc.

Tongue Not Supplied. Please Order Separately

Material, surface finish:
Housing and actuator die cast zinc, chromium-plated,
powder-coated black for wing-knob version.
Tongue steel, galvanized.

Note:
Small compression latch with spring-supported tongue. Usable on the right or the left.with a 90° closing path. The compression latch can be installed pre-assembled. The fastening nut is constructed as an earthing nut with claws on one side.

Please order the desired version of the tongue separately. Every tongue can be combined with every housing.

Quick Links

50+ in stock

5
13.5
20
Slot

£2.74  ea. Excl VAT £3.29  ea. Inc VAT

Qty

Product Wishlist & Compare Placeholder

Qty Price per item Savings
50 + £2.36 14%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify



modal placeholder

Quick Links



Tongue Not Supplied. Please Order Separately

Material, surface finish:
Housing and actuator die cast zinc, chromium-plated,
powder-coated black for wing-knob version.
Tongue steel, galvanized.

Note:
Small compression latch with spring-supported tongue. Usable on the right or the left.with a 90° closing path. The compression latch can be installed pre-assembled. The fastening nut is constructed as an earthing nut with claws on one side.

Please order the desired version of the tongue separately. Every tongue can be combined with every housing.

S max.5
H13.5
SW20
ActuationSlot
STP
MaterialDie Cast Zinc
ConnectionSlot
Height13.5mm
Diameter20mm
