Item Code: K0518.16131

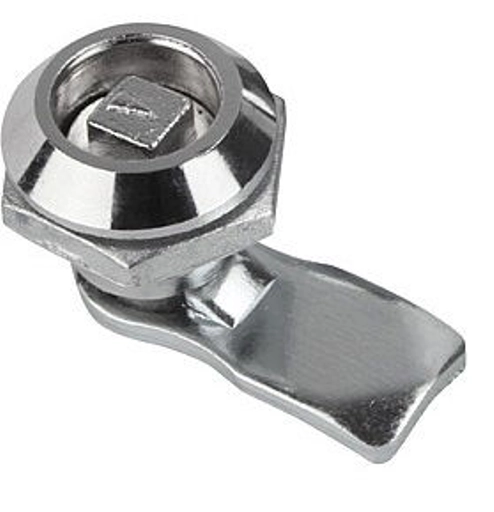

Quarter Turn Lock. 6mm Square Lock. 13.5mm Height. Zinc.

Item Code: K0518.16131

Quarter Turn Lock. 6mm Square Lock. 13.5mm Height. Zinc.

Tongue Not Supplied. Please Order Separately

Material, surface finish:
Housing and actuator die cast zinc, chromium-plated,
powder-coated black for wing-knob version.
Tongue steel, galvanized.

Note:

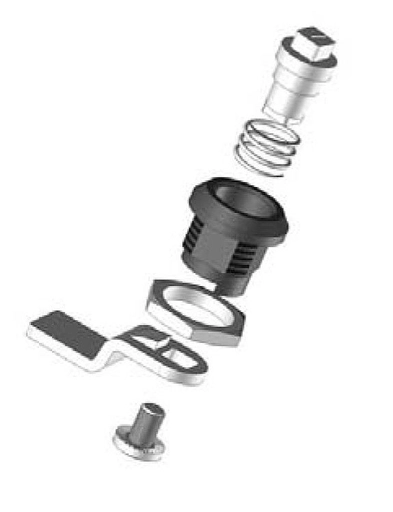

Small compression latch with spring-supported tongue. Usable on the right or the left.with a 90° closing path. The compression latch can be installed pre-assembled. The fastening nut is constructed as an earthing nut with claws on one side.

Please order the desired version of the tongue separately. Every tongue can be combined with every housing.

Quick Links

Dispatch by 10/06/25

5
13.5
20
Square: 6mm

£2.74  ea. Excl VAT £3.29  ea. Inc VAT

This product is currently out of stock. Your item will be shipped when it is back in stock.

Qty

Product Wishlist & Compare Placeholder

Qty Price per item Savings
50 + £2.36 14%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify



modal placeholder

Quick Links



Tongue Not Supplied. Please Order Separately

Material, surface finish:
Housing and actuator die cast zinc, chromium-plated,
powder-coated black for wing-knob version.
Tongue steel, galvanized.

Note:
Small compression latch with spring-supported tongue. Usable on the right or the left.with a 90° closing path. The compression latch can be installed pre-assembled. The fastening nut is constructed as an earthing nut with claws on one side.

Please order the desired version of the tongue separately. Every tongue can be combined with every housing.

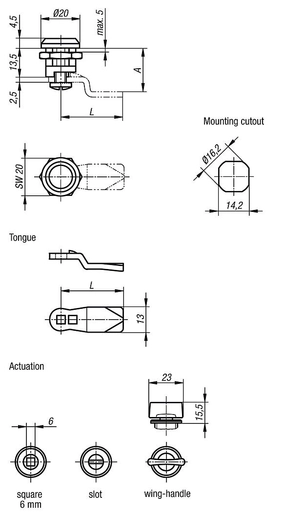

S max.5
H13.5
SW20
ActuationSquare: 6mm
STP
MaterialDie Cast Zinc
ConnectionSquare
Height13.5mm
Diameter20mm
