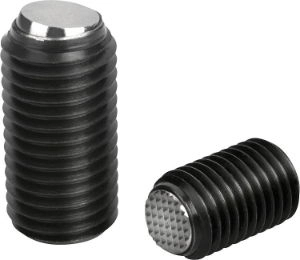

K0383 - Ball-End Thrust Screws Without Head With Flattened Ball & Rotation Lock

K0383 - Ball-End Thrust Screws Without Head With Flattened Ball & Rotation Lock

List view Grid view

Select your sizes

Choose Vertical Base Type

Choose Horizontal Base Type

Choose Stroke Length

Choose Type

Style

Item

Style

Clamp Type

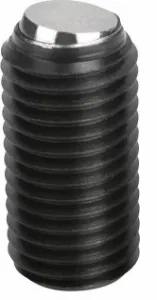

K0383 Ball-End Thrust Screws Without Head With Flattened Ball & Rotation Lock Form BV

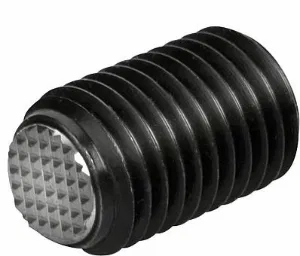

K0383 Ball-End Thrust Screws Without Head With Flattened Ball & Rotation Lock Form FV

Line drawing placeholder

Move drawing here

	D	D1	DK	Form	L	Load rating max. kN (static load only)	SW	Price (Exc. Tax)	Stock
Filters
K0383.60816 View product	M8	4,1	5,5	FV	16,3	9	4	£21.70	0
K0383.50612 View product	M6	3	4	BV	12,1	6	3	£10.36	0
K0383.60820 View product	M8	4,1	5,5	FV	20,3	9	4	£21.70	0
K0383.50616 View product	M6	3	4	BV	16,1	6	3	£10.45	0
K0383.50620 View product	M6	3	4	BV	20,1	6	3	£10.62	0
K0383.60825 View product	M8	4,1	5,5	FV	25,3	9	4	£21.79	0
K0383.50625 View product	M6	3	4	BV	25,1	6	3	£10.74	0
K0383.60830 View product	M8	4,1	5,5	FV	30,3	9	4	£21.89	0
K0383.50816 View product	M8	4,1	5,5	BV	16,3	9	4	£11.84	0
K0383.61020 View product	M10	5,6	7	FV	20,3	12	5	£27.48	0
K0383.50820 View product	M8	4,1	5,5	BV	20,3	9	4	£12.49	12
K0383.61025 View product	M10	5,6	7	FV	25,3	12	5	£28.69	0
K0383.50825 View product	M8	4,1	5,5	BV	25,3	9	4	£12.49	0
K0383.61035 View product	M10	5,6	7	FV	35,3	12	5	£28.94	0
K0383.50830 View product	M8	4,1	5,5	BV	30,3	9	4	£12.55	7
K0383.61040 View product	M10	5,6	7	FV	40,2	12	5	£29.43	0
K0383.51020 View product	M10	5,6	7	BV	20,3	12	5	£13.19	0
K0383.61220 View product	M12	7	8,5	FV	20,2	18	6	£29.88	0
K0383.51025 View product	M10	5,6	7	BV	25,3	12	5	£13.71	0
K0383.61230 View product	M12	7	8,5	FV	30,2	18	6	£31.35	0
K0383.51035 View product	M10	5,6	7	BV	35,3	12	5	£13.84	0
K0383.61240 View product	M12	7	8,5	FV	40,2	18	6	£31.59	0
K0383.51040 View product	M10	5,6	7	BV	40,2	12	5	£14.05	0
K0383.61250 View product	M12	7	8,5	FV	50	18	6	£32.16	0
K0383.51220 View product	M12	7	8,5	BV	20,2	18	6	£15.36	0
K0383.61635 View product	M16	10,7	12	FV	35	36	8	£36.06	0
K0383.51230 View product	M12	7	8,5	BV	30,2	18	6	£16.24	0
K0383.61650 View product	M16	10,7	12	FV	50	36	8	£36.48	0
K0383.51240 View product	M12	7	8,5	BV	40,2	18	6	£16.35	0
K0383.62030 View product	M20	13,5	15	FV	30	60	10	£42.39	0
K0383.51250 View product	M12	7	8,5	BV	50	18	6	£16.62	0
K0383.62040 View product	M20	13,5	15	FV	40	60	10	£43.27	0
K0383.51635 View product	M16	10,7	12	BV	35	36	8	£20.63	0
K0383.62050 View product	M20	13,5	15	FV	50	60	10	£43.56	0
K0383.51650 View product	M16	10,7	12	BV	50	36	8	£21.13	0
K0383.62060 View product	M20	13,5	15	FV	60	60	10	£44.38	0
K0383.52030 View product	M20	13,5	15	BV	30	60	10	£30.37	0
K0383.62435 View product	M24	15,8	18	FV	35	80	12	£50.66	0
K0383.52040 View product	M20	13,5	15	BV	40	60	10	£30.47	0
K0383.62450 View product	M24	15,8	18	FV	50	80	12	£52.02	0
K0383.52050 View product	M20	13,5	15	BV	50	60	10	£30.97	0
K0383.62480 View product	M24	15,8	18	FV	80	80	12	£55.09	0
K0383.52060 View product	M20	13,5	15	BV	60	60	10	£31.06	0
K0383.52435 View product	M24	15,8	18	BV	35	80	12	£39.52	0
K0383.52450 View product	M24	15,8	18	BV	50	80	12	£40.33	0
K0383.52480 View product	M24	15,8	18	BV	80	80	12	£42.78	0
