Item Code: K0383.50616

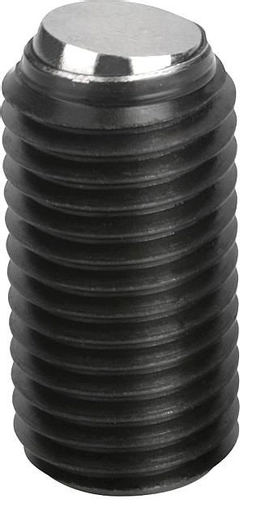

Ball End Thrust Screw. Without Head. With Rotation Lock. Form BV. M6 Thread. 16.1mm Long.

Item Code: K0383.50616

Ball End Thrust Screw. Without Head. With Rotation Lock. Form BV. M6 Thread. 16.1mm Long.

Material:
Screw, high-carbon steel, grade 10.9
Ball, ball-bearing steel.
Version:
Screw black.
Ball hardened, bright.
Note:
Surfaces which are not flat and parallel can be firmly clamped or supported with a flattened ball, the movable ball can adapt itself up to 9°.
Longer versions have been designed especially to be glued in. This enables mechanical connecting elements with male thread to be made cost-effectively for small and medium-sized series.

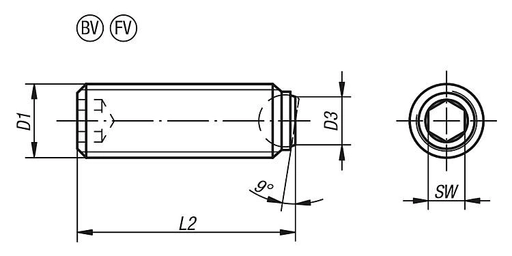

Drawing reference:
Form BV: flattened ball non-rotating

Quick Links

Dispatch by 05/07/25

M6
3
4
BV
16,1
6
3

£10.16  ea. Excl VAT £12.19  ea. Inc VAT

This product is currently out of stock. Your item will be shipped when it is back in stock.

Qty

Product Wishlist & Compare Placeholder

Qty Price per item Savings
25 + £8.33 18%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify



modal placeholder

Quick Links



Material:
Screw, high-carbon steel, grade 10.9
Ball, ball-bearing steel.
Version:
Screw black.
Ball hardened, bright.
Note:
Surfaces which are not flat and parallel can be firmly clamped or supported with a flattened ball, the movable ball can adapt itself up to 9°.
Longer versions have been designed especially to be glued in. This enables mechanical connecting elements with male thread to be made cost-effectively for small and medium-sized series.
Drawing reference:
Form BV: flattened ball non-rotating
DM6
D13
DK4
FormBV
L16,1
Load rating max. kN (static load only)6
SW3
STP
Thread Size / Body DiameterM6
Length16.1mm
Body MaterialSteel
Ball / Head MaterialSteel
Head TypeFlat
