Item Code: K0383.60820

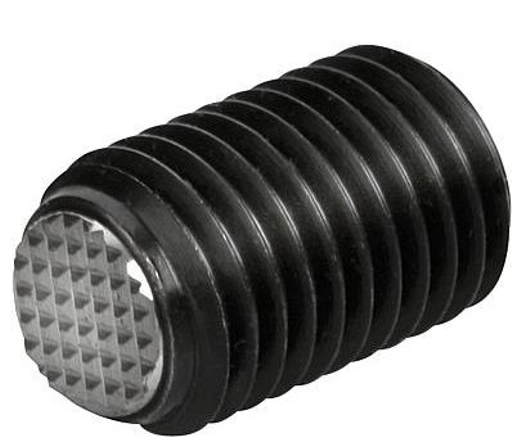

Ball End Thrust Screw. Without Head. With Rotation Lock. Form FV. M8 Thread. 20.3mm Long.

Item Code: K0383.60820

Ball End Thrust Screw. Without Head. With Rotation Lock. Form FV. M8 Thread. 20.3mm Long.

Material:
Screw, high-carbon steel, grade 10.9
Ball, ball-bearing steel.
Version:
Screw black.
Ball hardened, bright.
Note:
Surfaces which are not flat and parallel can be firmly clamped or supported with a flattened ball, the movable ball can adapt itself up to 9°.
Longer versions have been designed especially to be glued in. This enables mechanical connecting elements with male thread to be made cost-effectively for small and medium-sized series.
Drawing reference:
Form FV: flattened ball diamond grip non-rotating

Quick Links

Dispatch by 05/07/25

M8
4,1
5,5
FV
20,3
9
4

£21.10  ea. Excl VAT £25.32  ea. Inc VAT

This product is currently out of stock. Your item will be shipped when it is back in stock.

Qty

Product Wishlist & Compare Placeholder

Qty Price per item Savings
15 + £17.30 18%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify



modal placeholder

Quick Links



Material:
Screw, high-carbon steel, grade 10.9
Ball, ball-bearing steel.
Version:
Screw black.
Ball hardened, bright.
Note:
Surfaces which are not flat and parallel can be firmly clamped or supported with a flattened ball, the movable ball can adapt itself up to 9°.
Longer versions have been designed especially to be glued in. This enables mechanical connecting elements with male thread to be made cost-effectively for small and medium-sized series.
Drawing reference:
Form FV: flattened ball diamond grip non-rotating
DM8
D14,1
DK5,5
FormFV
L20,3
Load rating max. kN (static load only)9
SW4
STP
Thread Size / Body DiameterM8
Length20.3mm
Body MaterialSteel
Ball / Head MaterialSteel
Head TypeFlat Serrated
