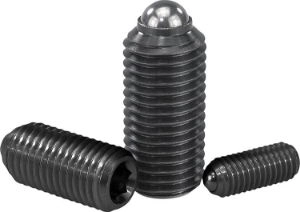

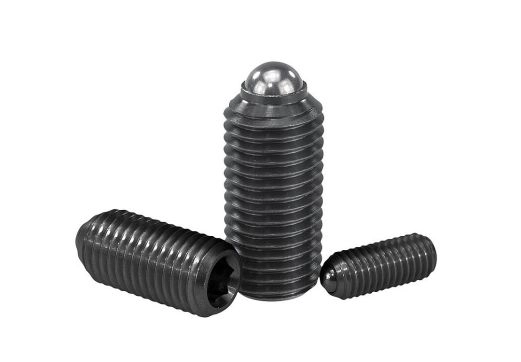

K0315 - Spring Plungers With Hexagon Socket And Ball In Steel

K0315 - Spring Plungers With Hexagon Socket And Ball In Steel

List view Grid view

Material:
Sleeve steel grade 5.8.
Ball steel.
Spring grade D steel wire.

Version:
Black oxidised. Ball hardened.

Spring Plunger. Thread M4. Length 16mm. Ball Diameter 2.5mm. Spring Force 4N. Steel.

Select your sizes

Choose Vertical Base Type

Choose Horizontal Base Type

Choose Stroke Length

Choose Type

Style

Item

Style

Clamp Type

Line drawing placeholder

Move drawing here

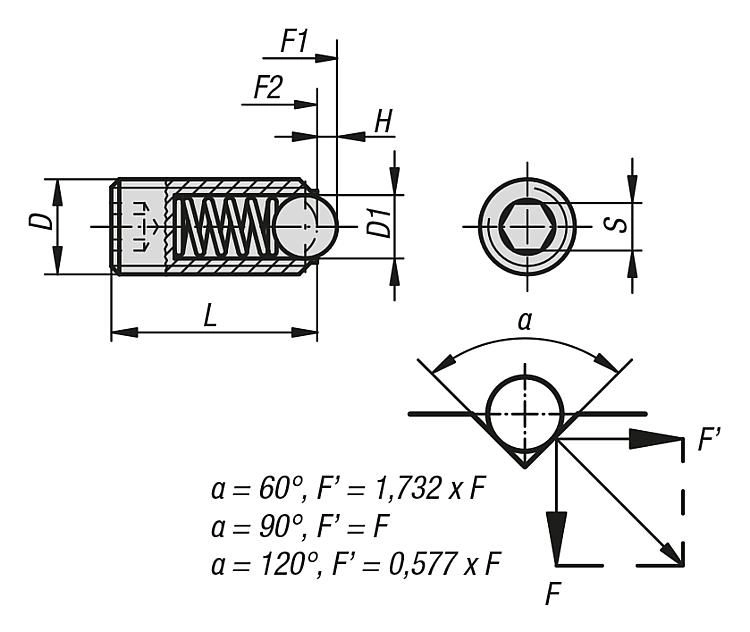

	D	D1	H	L	S	Price (Exc. Tax)	Stock
Filters
K0315.03 View product	M3	1,5	0,4	9	1,5	£2.05	80
K0315.203 View product	M3	1,5	0,4	9	1,5	£2.20	19
K0315.04 View product	M4	2,5	0,8	10	2	£1.56	364
K0315.204 View product	M4	2,5	0,8	10	2	£1.67	4
K0315.404 View product	M4	2,5	0,8	16	2	£2.07	74
K0315.05 View product	M5	3	0,9	14	2,5	£1.56	29
K0315.205 View product	M5	3	0,9	14	2,5	£1.67	7
K0315.405 View product	M5	3	0,9	20	2,5	£2.07	10
K0315.06 View product	M6	3,5	1	15	3	£1.56	63
K0315.206 View product	M6	3,5	1	15	3	£1.67	33
K0315.406 View product	M6	3,5	1	25	3	£2.07	19
K0315.08 View product	M8	5	1,5	18	4	£2.01	9
K0315.208 View product	M8	5	1,5	18	4	£2.15	25
K0315.408 View product	M8	5	1,5	30	4	£2.55	0
K0315.10 View product	M10	6	2	23	5	£2.20	5
K0315.210 View product	M10	6	2	23	5	£2.42	28
K0315.410 View product	M10	6	2	35	5	£2.84	44
K0315.12 View product	M12	8	2,5	26	6	£2.89	14
K0315.212 View product	M12	8	2,5	26	6	£3.26	6
K0315.412 View product	M12	8	2,5	40	6	£3.79	5
K0315.16 View product	M16	10	3,5	33	8	£3.91	8
K0315.216 View product	M16	10	3,5	33	8	£4.28	0
K0315.416 View product	M16	10	3,5	45	8	£4.98	24
K0315.20 View product	M20	12	4,5	43	10	£5.18	13
K0315.220 View product	M20	12	4,5	43	10	£5.69	10
K0315.224 View product	M24	15	5,5	48	12	£9.95	10
K0315.24 View product	M24	15	5,5	48	12	£9.01	17

Showing products per page

{
    "id": "787",
    "layout_id": "",
    "parent_id": "782",
    "name": "K0315 - Spring Plungers With Hexagon Socket And Ball In Steel",
    "slug": "k0315-spring-plungers-with-hexagon-socket-and-ball-in-steel",
    "meta_title": "K0315 - Spring Plungers With Hexagon Socket And Ball In Steel",
    "meta_description": "",
    "long_description": "",
    "short_description": "<div id=\"category-description-short-1\">\r\n<p style=\"text-align: left;\"><strong>Material:<\/strong><br \/>\r\nSleeve steel grade 5.8.<br \/>\r\nBall steel.<br \/>\r\nSpring grade D steel wire.<\/p>\r\n\r\n<p style=\"text-align: left;\"><strong>Version:<\/strong><br \/>\r\nBlack oxidised. Ball hardened.<\/p>\r\n\r\n<div class=\"category-desc-drawings\" style=\"display: flex; justify-content: center; flex-wrap: wrap; gap: 20px; margin-top: 20px;\"><img alt=\"Spring Plunger. Thread M4. Length 16mm. Ball Diameter 2.5mm. Spring Force 4N. Steel.\" src=\"https:\/\/images.shopcdn.co.uk\/ef\/91\/ef91e56b849c5ef34d55c4331754b380\/750x632\/webp\/resize?quality=100&compression=100\" \/><\/div>\r\n<\/div>",
    "active": "1",
    "visible": "1",
    "show_products": "1",
    "order_num": "252",
    "default_sortby": "best_match",
    "deleted": "0",
    "created": "2025-03-14 11:16:06",
    "updated": "2025-06-18 11:17:42",
    "images": [
        {
            "url": "https:\/\/images.shopcdn.co.uk\/76\/3a\/763a95749956ef5e75d72992888de733\/1024x1024\/webp\/fit?quality=100&amp;compression=100",
            "contain_url": "https:\/\/images.shopcdn.co.uk\/76\/3a\/763a95749956ef5e75d72992888de733\/256x256\/webp\/fit?quality=100&amp;compression=100",
            "crop_url": "https:\/\/images.shopcdn.co.uk\/76\/3a\/763a95749956ef5e75d72992888de733\/256x256\/webp\/fit?quality=100&amp;compression=100",
            "original_url": "https:\/\/images.shopcdn.co.uk\/76\/3a\/763a95749956ef5e75d72992888de733\/521x362\/webp\/resize?quality=100&amp;compression=100"
        }
    ],
    "is_parent_category": false,
    "is_product_group": false,
    "parent_category_title": "Spring Plungers",
    "parent_category_url": "spring-plungers",
    "path": "Standard Parts > Spring Plungers > K0315 - Spring Plungers With Hexagon Socket And Ball In Steel",
    "path_list": [
        "Standard Parts",
        "Spring Plungers",
        "K0315 - Spring Plungers With Hexagon Socket And Ball In Steel"
    ],
    "selectedTags": [],
    "availableProducts": {
        "key": "available",
        "doc_count": 27,
        "stockLevel": {
            "untracked": 27,
            "in_stock": 0
        }
    },
    "unavailableProducts": {
        "key": "unavailable",
        "doc_count": 0
    },
    "product_attributes": [
        "D",
        "D1",
        "H",
        "L",
        "S"
    ]
}

K0315 - Spring Plungers With Hexagon Socket And Ball In Steel

£2.05

£2.20

£1.56

£1.67

£2.07

£1.56

£1.67

£2.07

£1.56

£1.67

£2.07

£2.01

£2.15

£2.55

£2.20

£2.42

£2.84

£2.89

£3.26

£3.79

£3.91

£4.28

£4.98

£5.18

£5.69

£9.95

£9.01

Spring Plunger. M3 Thread. 9mm Long. 1.5mm Ball Diameter. 1.5N Spring Force. Steel.

Spring Plunger. Thread M3. Length 9mm. Ball Diameter 1.5mm. Spring Force 5N. Steel.

Spring Plunger. Thread M4. Length 10mm. Ball Diameter 2.5mm. Spring Force 4N. Steel.

Spring Plunger. Thread M4. Length 10mm. Ball Diameter 2.5mm. Spring Force 12N. Steel.

Spring Plunger. Thread M4. Length 16mm. Ball Diameter 2.5mm. Spring Force 4N. Steel.

Spring Plunger. Thread M5. Length 14mm. Ball Diameter 3mm. Spring Force 6N. Steel.

Spring Plunger. Thread M5. Length 14mm. Ball Diameter 3mm. Spring Force 19N. Steel.

Spring Plunger. Thread M5. Length 20mm. Ball Diameter 3mm. Spring Force 6N. Steel.

Spring Plunger. Thread M6. Length 15mm. Ball Diameter 3.5mm. Spring Force 9N. Steel.

Spring Plunger. Thread M6. Length 15mm. Ball Diameter 3.5mm. Spring Force 28N. Steel.

Spring Plunger. Thread M6. Length 25mm. Ball Diameter 3.5mm. Spring Force 9N. Steel.

Spring Plunger. Thread M8. Length 18mm. Ball Diameter 5mm. Spring Force 15N. Steel.

Spring Plunger. Thread M8. Length 18mm. Ball Diameter 5mm. Spring Force 47N. Steel.

Spring Plunger. Thread M8. Length 30mm. Ball Diameter 5mm. Spring Force 15N. Steel.

Spring Plunger. Thread M10. Length 23mm. Ball Diameter 6mm. Spring Force 20N. Steel.

Spring Plunger. Thread M10. Length 23mm. Ball Diameter 6mm. Spring Force 66N. Steel.

Spring Plunger. Thread M10. Length 35mm. Ball Diameter 6mm. Spring Force 20N. Steel.

Spring Plunger. Thread M12. Length 26mm. Ball Diameter 8mm. Spring Force 30N. Steel.

Spring Plunger. Thread M12. Length 26mm. Ball Diameter 8mm. Spring Force 66N. Steel.

Spring Plunger. Thread M12. Length 40mm. Ball Diameter 8mm. Spring Force 30N. Steel.

Spring Plunger. Thread M16. Length 33mm. Ball Diameter 10mm. Spring Force 65N. Steel.

Spring Plunger. Thread M16. Length 33mm. Ball Diameter 10mm. Spring Force 90N. Steel.

Spring Plunger. Thread M16. Length 45mm. Ball Diameter 10mm. Spring Force 65N. Steel.

Spring Plunger. Thread M20. Length 43mm. Ball Diameter 12mm. Spring Force 80N. Steel.

Spring Plunger. Thread M20. Length 43mm. Ball Diameter 12mm. Spring Force 115N. Steel.

Spring Plunger. Thread M24. Length 48mm. Ball Diameter 15mm. Spring Force 130N. Steel.

Spring Plunger. Thread M24. Length 48mm. Ball Diameter 15mm. Spring Force 90N. Steel.
