Spring Plunger. Thread M6. Length 15mm. Ball Diameter 3.5mm. Spring Force 28N. Steel.

Item Code: K0315.206

Spring Plunger. Thread M6. Length 15mm. Ball Diameter 3.5mm. Spring Force 28N. Steel.

Item Code: K0315.206

Material:
Sleeve in steel quality class 5.8.
Ball in steel.
Spring in spring steel D. Surface finish:
Black oxide finish.
Ball hardened.

Quick Links

33 in stock

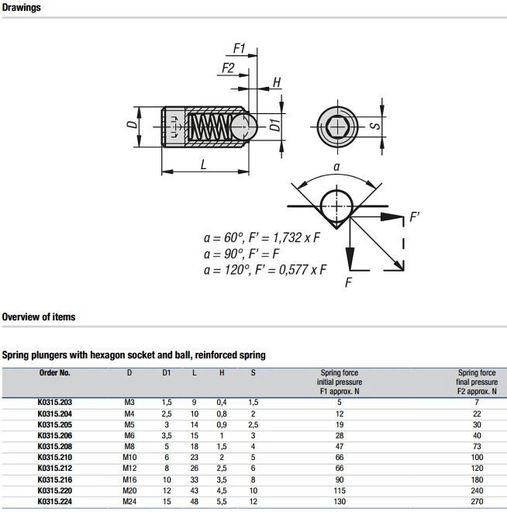

D: M6

L: 15

D1: 3,5

H: 1

S: 3

Spring force initial pressure F1 approx. N: 28

Spring force final pressure F2 approx. N: 40

£1.62 ea. Excl VAT £1.94 ea. Inc VAT

Qty

Product Wishlist & Compare Placeholder

Qty	Price per item	Savings
50 +	£1.39	14%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify

modal placeholder

Quick Links

Material:
Sleeve in steel quality class 5.8.
Ball in steel.
Spring in spring steel D. Surface finish:
Black oxide finish.
Ball hardened.

D	M6
L	15
D1	3,5
H	1
S	3
Spring force initial pressure F1 approx. N	28
Spring force final pressure F2 approx. N	40
