Back to K0315 - Spring Plungers With Hexagon Socket And Ball In Steel

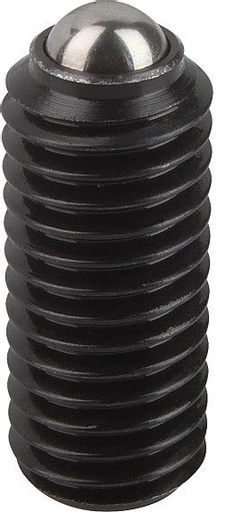

Spring Plunger. M3 Thread. 9mm Long. 1.5mm Ball Diameter. 1.5N Spring Force. Steel.

Item Code: K0315.03

Spring Plunger. M3 Thread. 9mm Long. 1.5mm Ball Diameter. 1.5N Spring Force. Steel.

Item Code: K0315.03

Material:
Sleeve in steel quality class 5.8.
Ball in steel.
Spring in spring steel D. Surface finish:
Black oxide finish.
Ball hardened.

Quick Links

50+ in stock

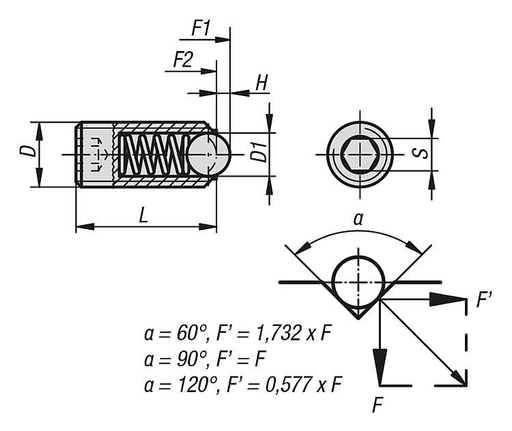

D: M3

L: 9

D1: 1,5

H: 0,4

S: 1,5

Spring force initial pressure F1 approx. N: 1,5

Spring force final pressure F2 approx. N: 3

£1.99 ea. Excl VAT £2.39 ea. Inc VAT

Qty

Product Wishlist & Compare Placeholder

Qty	Price per item	Savings
50 +	£1.71	14%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify

modal placeholder

Quick Links

Material:
Sleeve in steel quality class 5.8.
Ball in steel.
Spring in spring steel D. Surface finish:
Black oxide finish.
Ball hardened.

D	M3
L	9
D1	1,5
H	0,4
S	1,5
Spring force initial pressure F1 approx. N	1,5
Spring force final pressure F2 approx. N	3
