Item Code: K0238.11811

Recessed Handle. Plug in. Aluminium.118mm Wide. 90mm High. Black.

Item Code: K0238.11811

Recessed Handle. Plug in. Aluminium.118mm Wide. 90mm High. Black.

Material:
Tray handle in aluminium profile, end caps polyamide;
form A: mounting by rubber insert
Version:
Handle glass-bead blasted, satin finish and anodised black or natural colour.
Rubber profile black.
Fastening screws electro zinc-plated.
Note:
The Tray Handles form A can be used without screw mounting with sheet strengths of 1-2.5 mm. Two rubber inserts ensure absolutely firm mounting.
Two cross-slots offset by 90° for M4 screws allow earth/ground connection and can serve as a mounting aid for additional add-on parts.

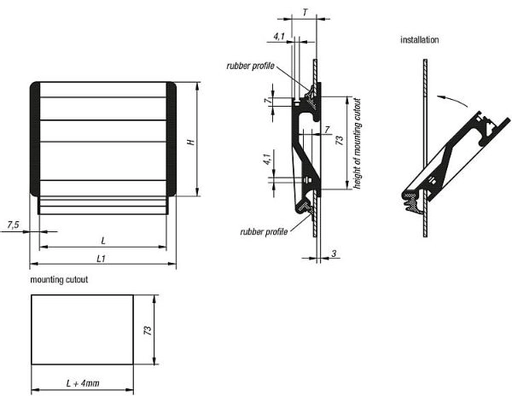

Assembly:
After fitting the lower rubber profile, press the two side caps onto the handle. Next press the handle over the lower edge of the mounting cutout at a 45° angle and then push it up against the housing panel.
Now, depending on which type is being used, push the 2nd rubber profile into the upper groove or fix in place with 2 countersunk screws.

Quick Links

Dispatch by 29/06/25

A
90
118
133
500
122 x 73
19.5

£16.20  ea. Excl VAT £19.44  ea. Inc VAT

This product is currently out of stock. Your item will be shipped when it is back in stock.

Qty

Product Wishlist & Compare Placeholder

Qty Price per item Savings
15 + £14.90 8%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify



modal placeholder

Quick Links



Material:
Tray handle in aluminium profile, end caps polyamide;
form A: mounting by rubber insert
Version:
Handle glass-bead blasted, satin finish and anodised black or natural colour.
Rubber profile black.
Fastening screws electro zinc-plated.
Note:
The Tray Handles form A can be used without screw mounting with sheet strengths of 1-2.5 mm. Two rubber inserts ensure absolutely firm mounting.
Two cross-slots offset by 90° for M4 screws allow earth/ground connection and can serve as a mounting aid for additional add-on parts.
Assembly:
After fitting the lower rubber profile, press the two side caps onto the handle. Next press the handle over the lower edge of the mounting cutout at a 45° angle and then push it up against the housing panel.
Now, depending on which type is being used, push the 2nd rubber profile into the upper groove or fix in place with 2 countersunk screws.
ColourBlack
FormA
H90
L118
L1133
Load capacity N500
Mounting cutout122 x 73
T19.5
STP
