5. K0238 - Pull Handles Recessed Form A

Line drawing placeholder

{
    "id": "309",
    "layout_id": "",
    "parent_id": "301",
    "name": "K0238 - Pull Handles Recessed Form A",
    "slug": "pull-handles-recessed-form-a",
    "meta_title": "Pull Handles Recessed Form A",
    "meta_description": "",
    "long_description": "",

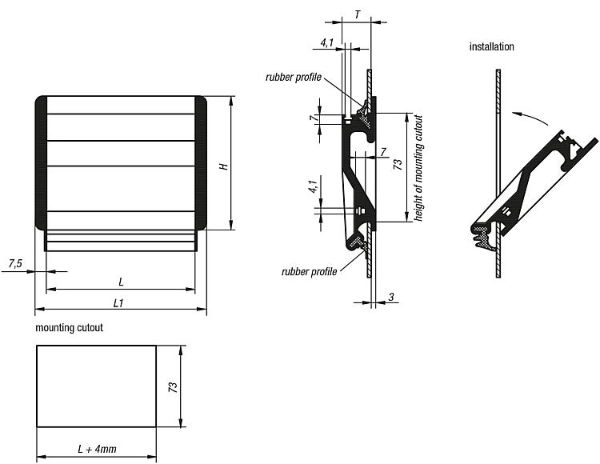

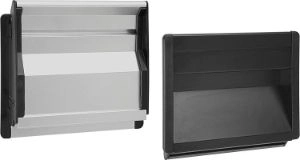

    "short_description": "<div id=\"category-description-short-1\">\r\n<div style=\"text-align: left;\">\r\n<p><strong>Material:<\/strong><br \/>\r\nTray handle in aluminium profile, end caps polyamide;<br \/>\r\nform A: mounting by rubber insert<\/p>\r\n\r\n<p><strong>Version:<\/strong><br \/>\r\nHandle glass-bead blasted, satin finish and anodised black or natural colour.<br \/>\r\nRubber profile black.<br \/>\r\nFastening screws electro zinc-plated.<\/p>\r\n\r\n<p><strong>Note:<\/strong><br \/>\r\nThe Tray Handles form A can be used without screw mounting with sheet strengths of 1-2.5 mm. Two rubber inserts ensure absolutely firm mounting.<br \/>\r\n<br \/>\r\nTwo cross-slots offset by 90&deg; for M4 screws allow earth\/ground connection and can serve as a mounting aid for additional add-on parts.<\/p>\r\n\r\n<p><strong>Assembly:<\/strong><br \/>\r\nAfter fitting the lower rubber profile, press the two side caps onto the handle. Next press the handle over the lower edge of the mounting cutout at a 45&deg; angle and then push it up against the housing panel.<br \/>\r\nNow, depending on which type is being used, push the 2nd rubber profile into the upper groove or fix in place with 2 countersunk screws.<\/p>\r\n<\/div>\r\n\r\n<div class=\"category-desc-drawings\" style=\"display: flex; justify-content: center; flex-wrap: wrap; gap: 20px; margin-top: 20px;\"><img src=\"https:\/\/images.shopcdn.co.uk\/07\/e2\/07e284439a82e280b30dcae94850743a\/1024x1024\/webp\/fit?quality=100&compression=100&t=1753193684\" \/><\/div>\r\n<\/div>",
    "active": "1",
    "visible": "1",
    "show_products": "1",
    "order_num": "581",
    "default_sortby": "best_match",
    "deleted": "0",
    "created": "2025-03-14 11:12:57",
    "updated": "2025-07-22 14:16:28",
    "images": [
        {
            "url": "https:\/\/images.shopcdn.co.uk\/40\/2e\/402e4e69405e524d6b33774d1d4d5524\/1024x1024\/webp\/fit?quality=100&amp;compression=100",
            "contain_url": "https:\/\/images.shopcdn.co.uk\/40\/2e\/402e4e69405e524d6b33774d1d4d5524\/256x256\/webp\/fit?quality=100&amp;compression=100",
            "crop_url": "https:\/\/images.shopcdn.co.uk\/40\/2e\/402e4e69405e524d6b33774d1d4d5524\/256x256\/webp\/fit?quality=100&amp;compression=100",
            "original_url": "https:\/\/images.shopcdn.co.uk\/40\/2e\/402e4e69405e524d6b33774d1d4d5524\/300x160\/webp\/resize?quality=100&amp;compression=100"
        }
    ],
    "is_parent_category": false,
    "is_product_group": false,
    "parent_category_title": "K0238 - Recessed Handles 19\" Technology",
    "parent_category_url": "k0238-recessed-handles-19-technology",
    "path": "Standard Parts > Handles > K0238 - Recessed Handles 19&quot; Technology > K0238 - Pull Handles Recessed Form A",
    "path_list": [
        "Standard Parts",
        "Handles",
        "K0238 - Recessed Handles 19&quot; Technology",
        "K0238 - Pull Handles Recessed Form A"
    ],
    "selectedTags": [],
    "availableProducts": {
        "key": "available",
        "doc_count": 6,
        "stockLevel": {
            "untracked": 6,
            "in_stock": 0
        }
    },
    "unavailableProducts": {
        "key": "unavailable",
        "doc_count": 0
    },
    "product_attributes": [
        "Colour",
        "Form",
        "H",
        "L",
        "L1",
        "Load capacity N",
        "Mounting cutout",
        "T"
    ]
}
