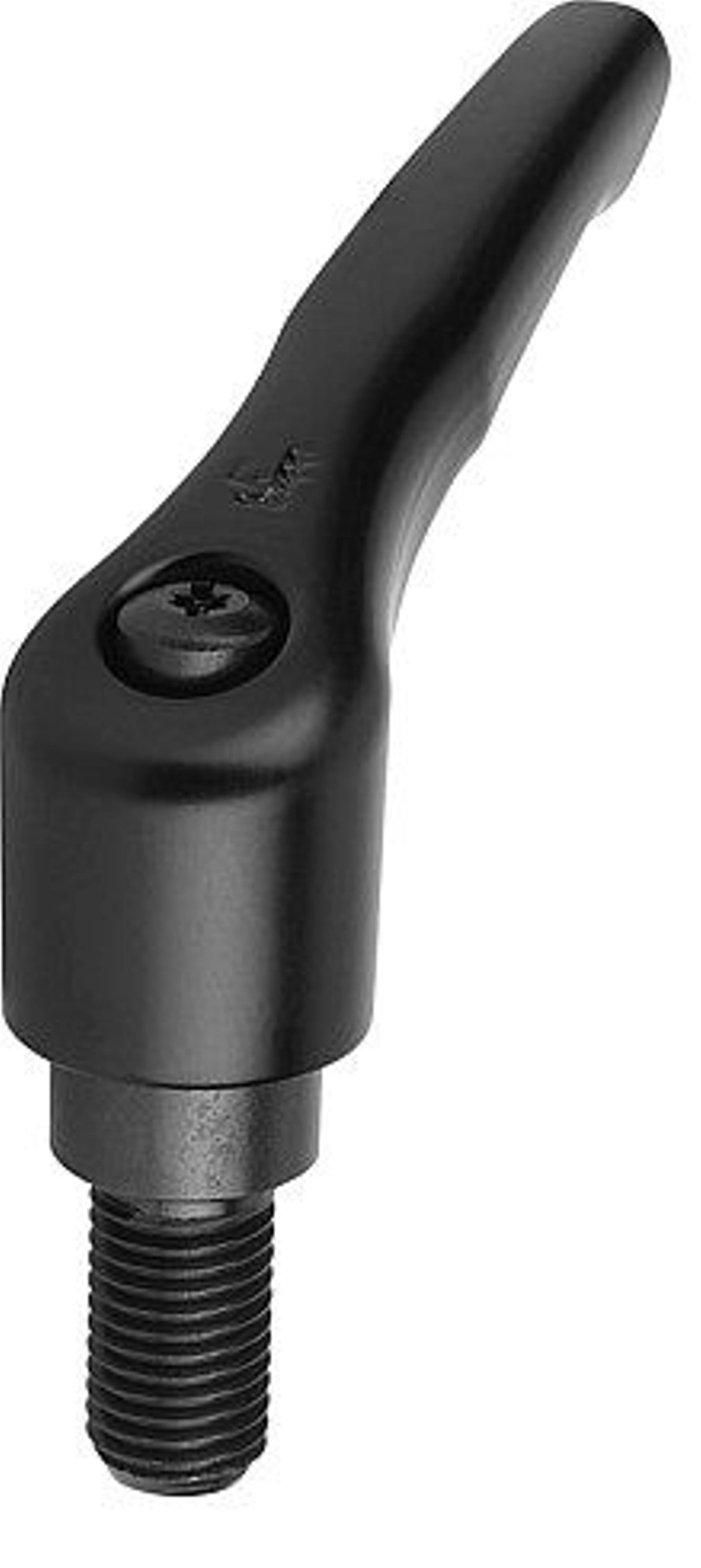

Cam Lever. 96mm Handle Length. M8x50mm Stainless Steel Thread. Electropolished.

Item Code: K2121.2512008X50

Cam Lever. 96mm Handle Length. M8x50mm Stainless Steel Thread. Electropolished.

Item Code: K2121.2512008X50

Cam Lever. 96mm Handle Length. M8x50mm Stainless Steel Thread. Electropolished.

Product description:
These cam levers have a technically optimised plastic thrust washer.
The thrust washer is made of a special high-performance plastic that guarantees very good wear and creep resistance.

Material:
Handle stainless steel 1.4308.
Thrust washer high performance carbon-fibre reinforced thermoplastic.
Hinge pin and stud stainless steel 1.4305.

Version:
Handle electropolished or abrasive blasted.
Thrust washer, black.
Hinge pin and stud bright.

Note:
Plastics are subject to creeping under load (retardation).

Accessory:
For slightly curved contact faces, a stainless steel washer K2130 can also be ordered.
This washer can be mounted between the thrust washer and the contact face.

Quick Links

Dispatch by 15/09/25

Hand Force FH (N): 350

A: 96

A1: 108

B: 33,3

B1: 24

Clamping force F (kN): 8

D: M8

D1: 25

D2: 11

H: 18,3

H1: 28,8

L: 1,5

Male/Female: Male

Surface Body finish: Electropolished

Travel S: 50

£27.48 ea. Excl VAT £32.98 ea. Inc VAT

This product is currently out of stock. Your item will be shipped when it is back in stock.

Qty

Product Wishlist & Compare Placeholder

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify

modal placeholder

Quick Links

Product Dimensions

Hand Force FH (N)	350
A	96
A1	108
B	33,3
B1	24
Clamping force F (kN)	8
D	M8
D1	25
D2	11
H	18,3
H1	28,8
L	1,5
Male/Female	Male
Surface Body finish	Electropolished
Travel S	50

CAD Download

Cam Lever. 96mm Handle Length. M8x50mm Stainless Steel Thread. Electropolished.

Cam Lever. 96mm Handle Length. M8x50mm Stainless Steel Thread. Electropolished.
