K2121 - Cam Levers With Stainless Steel Handles & Stainless Steel Threads M3-M10

K2121 - Cam Levers With Stainless Steel Handles & Stainless Steel Threads M3-M10

List view Grid view

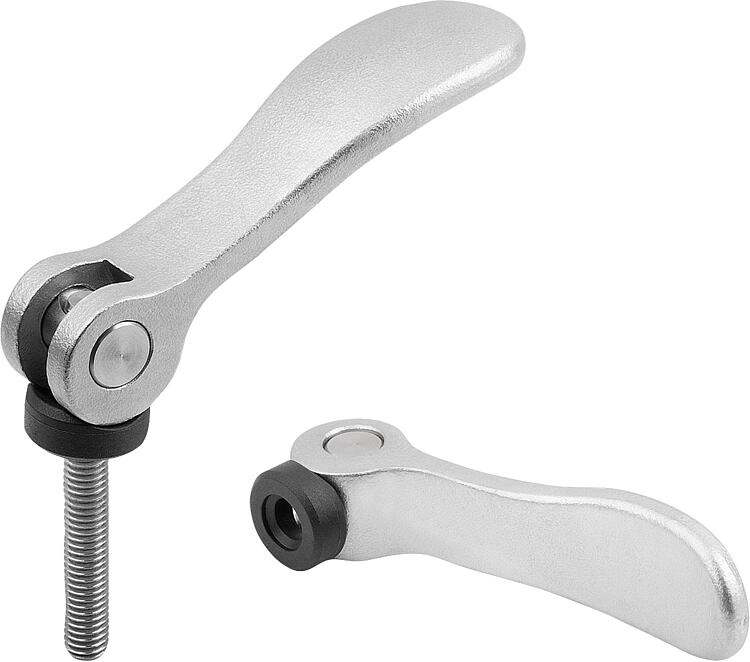

Product description:
These cam levers have a technically optimised plastic thrust washer.
The thrust washer is made of a special high-performance plastic that guarantees very good wear and creep resistance.

Material:
Handle stainless steel 1.4308.
Thrust washer high performance carbon-fibre reinforced thermoplastic.
Hinge pin and stud stainless steel 1.4305.

Version:
Handle electropolished or abrasive blasted.
Thrust washer, black.
Hinge pin and stud bright.

Note:
Plastics are subject to creeping under load (retardation).

Accessory:
For slightly curved contact faces, a stainless steel washer K2130 can also be ordered.
This washer can be mounted between the thrust washer and the contact face.

Star Grip With Safety Cable. M10 Steel Thread. 40mm Grip Diameter. Grey Cap.

Select your sizes

Choose Vertical Base Type

Choose Horizontal Base Type

Choose Stroke Length

Choose Type

Style

Item

Style

Clamp Type

Line drawing placeholder

Move drawing here

	Hand Force FH (N)	A	A1	B	B1	Clamping force F (kN)	D	D1	D2	H	H1	L	Male/Female	Surface Body finish	Travel S	Price (Exc. Tax)	Stock
Filters
K2121.7512003 View product	50	22	27,5	13,8	11,5	0,5	M3	10,7	6	9	13,5	--	Female	Electropolished	1	£15.18	0
K2121.8512003 View product	45	28	33,5	14,4	11,5	0,6	M3	10,7	6	9	13,5	--	Female	Electropolished	1	£15.18	0
K2121.9512003 View product	90	36,2	41,7	14,4	11,5	1,5	M3	10,7	6	9	13,5	--	Female	Electropolished	1	£15.18	0
K2121.7512303 View product	50	22	27,5	13,8	11,5	0,5	M3	10,7	6	9	13,5	--	Female	Blasted	1	£12.49	0
K2121.8512004 View product	45	28	33,5	14,4	11,5	0,6	M4	10,7	6	9	13,5	--	Female	Electropolished	1	£15.18	0
K2121.8512303 View product	45	28	33,5	14,4	11,5	0,6	M3	10,7	6	9	13,5	--	Female	Blasted	1	£12.49	0
K2121.9512303 View product	90	36,2	41,7	14,4	11,5	1,5	M3	10,7	6	9	13,5	--	Female	Blasted	1	£12.49	0
K2121.9512004 View product	90	36,2	41,7	14,4	11,5	1,5	M4	10,7	6	9	13,5	--	Female	Electropolished	1	£15.18	0
K2121.7512003X10 View product	50	22	27,5	13,8	11,5	0,5	M3	10,7	6	9	13,5	1	Male	Electropolished	10	£15.69	0
K2121.7512003X15 View product	50	22	27,5	13,8	11,5	0,5	M3	10,7	6	9	13,5	1	Male	Electropolished	15	£15.69	0
K2121.9512304X10 View product	90	36,2	41,7	14,4	11,5	1,5	M4	10,7	6	9	13,5	1	Male	Blasted	10	£12.87	0
K2121.0512004 View product	100	52,3	59,1	18	13	2,5	M4	13,8	8	11,4	17,2	--	Female	Electropolished	1	£16.14	0
K2121.7512003X30 View product	50	22	27,5	13,8	11,5	0,5	M3	10,7	6	9	13,5	1	Male	Electropolished	30	£15.69	0
K2121.9512304X15 View product	90	36,2	41,7	14,4	11,5	1,5	M4	10,7	6	9	13,5	1	Male	Blasted	15	£12.87	0
K2121.8512003X10 View product	45	28	33,5	14,4	11,5	0,6	M3	10,7	6	9	13,5	1	Male	Electropolished	10	£15.69	0
K2121.9512304X30 View product	90	36,2	41,7	14,4	11,5	1,5	M4	10,7	6	9	13,5	1	Male	Blasted	30	£12.87	0
K2121.7512304 View product	50	22	27,5	13,8	11,5	0,5	M4	10,7	6	9	13,5	--	Female	Blasted	1	£12.49	0
K2121.8512003X15 View product	45	28	33,5	14,4	11,5	0,6	M3	10,7	6	9	13,5	1	Male	Electropolished	15	£15.69	0
K2121.1512305X50 View product	120	70,4	79,2	21,5	15	4	M5	16	9	14,7	22,2	1,2	Male	Blasted	50	£16.72	0
K2121.0512304X15 View product	100	52,3	59,1	18	13	2,5	M4	13,8	8	11,4	17,2	1	Male	Blasted	15	£13.69	0
K2121.8512003X30 View product	45	28	33,5	14,4	11,5	0,6	M3	10,7	6	9	13,5	1	Male	Electropolished	30	£15.69	0
K2121.0512304X20 View product	100	52,3	59,1	18	13	2,5	M4	13,8	8	11,4	17,2	1	Male	Blasted	20	£13.69	0
K2121.1512006 View product	120	70,4	79,2	21,5	15	4	M6	16	9	14,7	22,2	--	Female	Electropolished	1,2	£18.97	0
K2121.9512003X10 View product	90	36,2	41,7	14,4	11,5	1,5	M3	10,7	6	9	13,5	1	Male	Electropolished	10	£15.69	0
K2121.8512304 View product	45	28	33,5	14,4	11,5	0,6	M4	10,7	6	9	13,5	--	Female	Blasted	1	£12.49	0
K2121.0512304X30 View product	100	52,3	59,1	18	13	2,5	M4	13,8	8	11,4	17,2	1	Male	Blasted	30	£13.69	0
K2121.1512306 View product	120	70,4	79,2	21,5	15	4	M6	16	9	14,7	22,2	--	Female	Blasted	1,2	£17.10	0
K2121.0512005 View product	100	52,3	59,1	18	13	2,5	M5	13,8	8	11,4	17,2	--	Female	Electropolished	1	£16.14	0
K2121.9512003X15 View product	90	36,2	41,7	14,4	11,5	1,5	M3	10,7	6	9	13,5	1	Male	Electropolished	15	£15.69	6
K2121.1512006X20 View product	120	70,4	79,2	21,5	15	4	M6	16	9	14,7	22,2	1,2	Male	Electropolished	20	£19.62	0
K2121.1512005 View product	120	70,4	79,2	21,5	15	4	M5	16	9	14,7	22,2	--	Female	Electropolished	1,2	£18.97	0
K2121.9512304 View product	90	36,2	41,7	14,4	11,5	1,5	M4	10,7	6	9	13,5	--	Female	Blasted	1	£12.49	0
K2121.9512003X30 View product	90	36,2	41,7	14,4	11,5	1,5	M3	10,7	6	9	13,5	1	Male	Electropolished	30	£15.69	0
K2121.1512006X30 View product	120	70,4	79,2	21,5	15	4	M6	16	9	14,7	22,2	1,2	Male	Electropolished	30	£19.62	0
K2121.0512305 View product	100	52,3	59,1	18	13	2,5	M5	13,8	8	11,4	17,2	--	Female	Blasted	1	£13.27	0
K2121.7512303X10 View product	50	22	27,5	13,8	11,5	0,5	M3	10,7	6	9	13,5	1	Male	Blasted	10	£12.87	0
K2121.1512006X40 View product	120	70,4	79,2	21,5	15	4	M6	16	9	14,7	22,2	1,2	Male	Electropolished	40	£20.36	0
K2121.1512305 View product	120	70,4	79,2	21,5	15	4	M5	16	9	14,7	22,2	--	Female	Blasted	1,2	£15.61	0
K2121.7512303X15 View product	50	22	27,5	13,8	11,5	0,5	M3	10,7	6	9	13,5	1	Male	Blasted	15	£12.87	0
K2121.0512304 View product	100	52,3	59,1	18	13	2,5	M4	13,8	8	11,4	17,2	--	Female	Blasted	1	£13.27	0
K2121.0512005X20 View product	100	52,3	59,1	18	13	2,5	M5	13,8	8	11,4	17,2	1	Male	Electropolished	20	£16.67	0
K2121.1512006X50 View product	120	70,4	79,2	21,5	15	4	M6	16	9	14,7	22,2	1,2	Male	Electropolished	50	£20.36	0
K2121.7512303X30 View product	50	22	27,5	13,8	11,5	0,5	M3	10,7	6	9	13,5	1	Male	Blasted	30	£12.87	0
K2121.0512005X30 View product	100	52,3	59,1	18	13	2,5	M5	13,8	8	11,4	17,2	1	Male	Electropolished	30	£16.67	0
K2121.2512310X25 View product	350	96	108	33,3	24	8	M10	25	11	18,3	28,8	1,5	Male	Blasted	25	£21.89	0
K2121.8512303X10 View product	45	28	33,5	14,4	11,5	0,6	M3	10,7	6	9	13,5	1	Male	Blasted	10	£12.87	0
K2121.1512306X20 View product	120	70,4	79,2	21,5	15	4	M6	16	9	14,7	22,2	1,2	Male	Blasted	20	£16.11	0
K2121.7512004X10 View product	50	22	27,5	13,8	11,5	0,5	M4	10,7	6	9	13,5	1	Male	Electropolished	10	£15.69	0
