Back to K1788 - Heavy Duty Steel Plate Swivel & Fixed Castors With Polyurethane Elastomer Tread

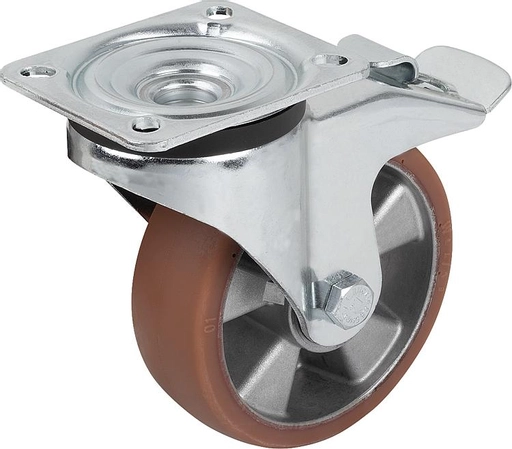

Swivel Caster. With Lock. Diameter 100mm. Load 350Kg.

Item Code: K1788.1010004023

Swivel Caster. With Lock. Diameter 100mm. Load 350Kg.

Item Code: K1788.1010004023

Swivel Caster. With Lock. Diameter 100mm. Load 350Kg.

Material:
Housing, steel plate.
Wheel tread, high quality polyurethane elastomere.
Wheel rims, die-cast aluminium.

Version:
Housing, press-formed.
Swivel housing, double-row ball bearings in a swivel head.
Ball bearing wheel axle bearings.

Note:
Wheel axle bolted.
Swivel and fixed castors with mounting plate.

Application:
Heavy loads can be easily transported using this load handling equipment. The roll and swivel resistance is reduced with this new wheel series designed for intralogistic heavy load applications.

Temperature Range:
-25 �C to +70 �C.

Quick Links

Dispatch by 13/07/25

Load Kg_1: 350

A: 45

B: 40

B1: 80

B2: 75

B3: 110

D: 100

D1: 11

H: 130

L: 140

L1: 105

Version: Swivel Caster With Lock

£118.65 ea. Excl VAT £142.38 ea. Inc VAT

This product is currently out of stock. Your item will be shipped when it is back in stock.

Qty

Product Wishlist & Compare Placeholder

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify

modal placeholder

Quick Links

Description

Material:
Housing, steel plate.
Wheel tread, high quality polyurethane elastomere.
Wheel rims, die-cast aluminium.

Version:
Housing, press-formed.
Swivel housing, double-row ball bearings in a swivel head.
Ball bearing wheel axle bearings.

Note:
Wheel axle bolted.
Swivel and fixed castors with mounting plate.

Temperature Range:
-25 �C to +70 �C.

Product Dimensions

Load Kg_1	350
A	45
B	40
B1	80
B2	75
B3	110
D	100
D1	11
H	130
L	140
L1	105
Version	Swivel Caster With Lock

Downloads

STP

Swivel Caster. With Lock. Diameter 100mm. Load 350Kg.

Swivel Caster. With Lock. Diameter 100mm. Load 350Kg.
