K1788 - Heavy Duty Steel Plate Swivel & Fixed Castors With Polyurethane Elastomer Tread

List view Grid view

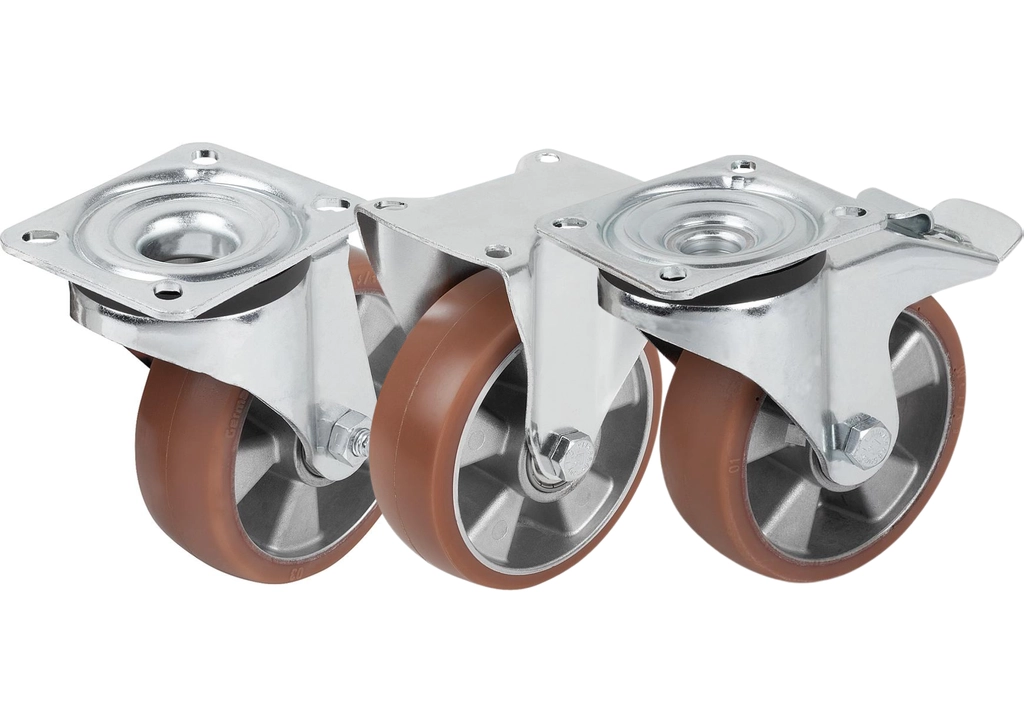

K1788 - Heavy Duty Steel Plate Swivel & Fixed Castors With Polyurethane Elastomer Tread

Material:
Housing, steel plate.
Wheel tread, high quality polyurethane elastomere.
Wheel rims, die-cast aluminium.

Version:
Housing, press-formed.
Swivel housing, double-row ball bearings in a swivel head.
Ball bearing wheel axle bearings.

Note:
Wheel axle bolted.
Swivel and fixed castors with mounting plate.

Application:
Heavy loads can be easily transported using this load handling equipment. The roll and swivel resistance is reduced with this new wheel series designed for intralogistic heavy load applications.

Temperature Range:
-25 °C to +70 °C.

Wheels and Casters.

K1788 - Heavy Duty Steel Plate Swivel & Fixed Castors With Polyurethane Elastomer Tread

Quick Filters

Choose Vertical Base Type

Flat

Side Mount

Straight

Choose Horizontal Base Type

Flat

Side Mount

Straight

Choose Stroke Length

0-40mm

41-80mm

81mm and Over

Choose Type

Hook

Latch

Vertical Latch

Style

Cabinet Cooler Only

Cabinet Cooler For Continuous Operation

Cabinet Cooler With Thermostat Control

Style

Cabinet Cooler Only

Cabinet Cooler For Continuous Operation

Cabinet Cooler With Thermostat Control

Style

Cabinet Cooler Only

Cabinet Cooler For Continuous Operation

Cabinet Cooler With Thermostat Control

Style

Air Knife Only

Air Knife With Filter and Shim Set

Air Knife With Plumbing Kit Installed, Filter and Shim Set

Style

Air Knife Only

Air Knife With Filter and Shim Set

Style

Air Knife Only

Air Knife With Filter and Shim Set

Style

Line Vac Only

Line Vac With Filter and Bracket

Style

Line Vac Only

Line Vac With Filter

Style

Line Vac Only

Line Vac With Filter and Bracket

Style

Line Vac Only

Line Vac With Filter and Bracket

Style

Line Vac Only

Line Vac With Filter and Bracket

Style

Line Vac Only

Line Vac With Filter and Bracket

Style

Line Vac Only

Line Vac With Filter and Bracket

Style

Air Amplifier Only

Air Amplifier With Filter and Shim Set

Style

Air Amplifier Only

Air Amplifier With Filter

Item

Filter / Regulator

Air Amplifier Shim Set

Item

Filter / Regulator

Vortex Tube Generator

Vortex Tube Cold Silencer

Vortex Tube Hot Silencer

Style

Vortex Tube Only

Vortex Tube With Generator Kit, Muffler, Tubing And Filter

Clamp Type

Horizontal

Vertical

Latch

Vertical Latch

Clamp Type

Vertical

Press

Push-Pull

Clamp Type

Horizontal

Vertical

Hook

Latch

Vertical Latch

Push-Pull

Flip-Flop

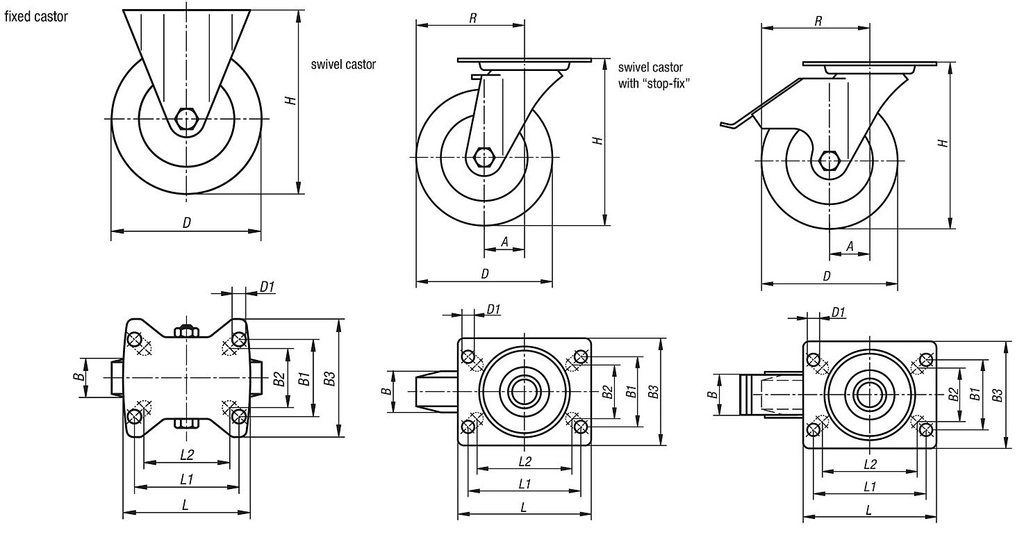

Line drawing placeholder

Move drawing here

Load Kg_1 A B B1 B2 B3 D D1 H L L1 L2 Version Price (Exc. Tax) Stock Qty basket

Filters

K1788.1010004011
View product
350 -- 40 60 55 85 100 9 130 100 80 76 Fixed Castor
£109.09
0
K1788.1010004013
View product
350 -- 40 80 75 110 100 11 130 140 105 -- Fixed Castor
£114.12
0
K1788.1012504011
View product
350 -- 40 60 55 85 125 9 155 100 80 76 Fixed Castor
£122.12
0
K1788.1012504013
View product
350 -- 40 80 75 110 125 11 155 140 105 -- Fixed Castor
£128.47
0
K1788.101500501
View product
500 -- 50 80 75 110 150 11 197 140 105 -- Fixed Castor
£172.96
0
K1788.101600501
View product
550 -- 50 80 75 110 160 11 202 140 105 -- Fixed Castor
£196.10
0
K1788.102000501
View product
600 -- 50 80 75 110 200 11 245 140 105 -- Fixed Castor
£237.43
0
K1788.101000401
View product
350 45 40 60 55 85 100 9 130 100 80 76 Swivel Castor
£119.41
0
K1788.101000403
View product
350 45 40 80 75 110 100 11 130 140 105 -- Swivel Castor
£122.03
0
K1788.101250401
View product
350 48 40 60 55 85 125 9 155 100 80 76 Swivel Castor
£133.63
0
K1788.101250403
View product
350 48 40 80 75 110 125 11 155 140 105 -- Swivel Castor
£137.00
0
K1788.10150050
View product
500 63 50 80 75 110 150 11 197 140 105 -- Swivel Castor
£208.64
0
K1788.10160050
View product
550 63 50 80 75 110 160 11 202 140 105 -- Swivel Castor
£231.84
0
K1788.10200050
View product
600 65 50 80 75 110 200 11 245 140 105 -- Swivel Castor
£271.65
0
K1788.1010004021
View product
350 45 40 60 55 85 100 9 130 100 80 76 Swivel Castor With Lock
£119.41
0
K1788.1010004023
View product
350 45 40 80 75 110 100 11 130 140 105 -- Swivel Castor With Lock
£122.03
0
K1788.1012504021
View product
350 48 40 60 55 85 125 9 155 100 80 76 Swivel Castor With Lock
£133.63
0
K1788.1012504023
View product
350 48 40 80 75 110 125 11 155 140 105 -- Swivel Castor With Lock
£137.00
0
K1788.101500502
View product
500 63 50 80 75 110 150 11 197 140 105 -- Swivel Castor With Lock
£208.64
0
K1788.101600502
View product
550 63 50 80 75 110 160 11 202 140 105 -- Swivel Castor With Lock
£231.84
0
K1788.102000502
View product
600 65 50 80 75 110 200 11 245 140 105 -- Swivel Castor With Lock
£271.65
0

Showing products per page


£
£

Dispatch by 29/10/25

Item Code: K1788.1010004011

Fixed Castor. Without Lock. Diameter 100mm. Load 350Kg.

£109.09  Excl VAT £130.91  Inc VAT

Price breaks available

Text

Qty

Dispatch by 29/10/25

Item Code: K1788.1010004013

Fixed Castor. Without Lock. Diameter 100mm. Load 350Kg.

£114.12  Excl VAT £136.94  Inc VAT

Price breaks available

Text

Qty

Dispatch by 29/10/25

Item Code: K1788.1012504011

Fixed Castor. Without Lock. Diameter 125mm. Load 350Kg.

£122.12  Excl VAT £146.54  Inc VAT

Price breaks available

Text

Qty

Dispatch by 29/10/25

Item Code: K1788.1012504013

Fixed Castor. Without Lock. Diameter 125mm. Load 350Kg.

£128.47  Excl VAT £154.16  Inc VAT

Price breaks available

Text

Qty

Dispatch by 29/10/25

Item Code: K1788.101500501

Fixed Castor. Without Lock. Diameter 150mm. Load 500Kg.

£172.96  Excl VAT £207.55  Inc VAT

Price breaks available

Text

Qty

Dispatch by 29/10/25

Item Code: K1788.101600501

Fixed Castor. Without Lock. Diameter 160mm. Load 550Kg.

£196.10  Excl VAT £235.32  Inc VAT

Price breaks available

Text

Qty

Dispatch by 29/10/25

Item Code: K1788.102000501

Fixed Castor. Without Lock. Diameter 200mm. Load 600Kg.

£237.43  Excl VAT £284.92  Inc VAT

Price breaks available

Text

Qty

Dispatch by 29/10/25

Item Code: K1788.101000401

Swivel Castor. Without Lock. Diameter 100mm. Load 350Kg.

£119.41  Excl VAT £143.29  Inc VAT

Price breaks available

Text

Qty

Dispatch by 29/10/25

Item Code: K1788.101000403

Swivel Castor. Without Lock. Diameter 100mm. Load 350Kg.

£122.03  Excl VAT £146.44  Inc VAT

Price breaks available

Text

Qty

Dispatch by 29/10/25

Item Code: K1788.101250401

Swivel Castor. Without Lock. Diameter 125mm. Load 350Kg.

£133.63  Excl VAT £160.36  Inc VAT

Price breaks available

Text

Qty

Dispatch by 29/10/25

Item Code: K1788.101250403

Swivel Castor. Without Lock. Diameter 125mm. Load 350Kg.

£137.00  Excl VAT £164.40  Inc VAT

Price breaks available

Text

Qty

Dispatch by 29/10/25

Item Code: K1788.10150050

Swivel Castor. Without Lock. Diameter 150mm. Load 500Kg.

£208.64  Excl VAT £250.37  Inc VAT

Price breaks available

Text

Qty

Dispatch by 29/10/25

Item Code: K1788.10160050

Swivel Castor. Without Lock. Diameter 160mm. Load 550Kg.

£231.84  Excl VAT £278.21  Inc VAT

Price breaks available

Text

Qty

Dispatch by 29/10/25

Item Code: K1788.10200050

Swivel Castor. Without Lock. Diameter 200mm. Load 600Kg.

£271.65  Excl VAT £325.98  Inc VAT

Price breaks available

Text

Qty

Dispatch by 29/10/25

Item Code: K1788.1010004021

Swivel Castor. With Lock. Diameter 100mm. Load 350Kg.

£119.41  Excl VAT £143.29  Inc VAT

Price breaks available

Text

Qty

Dispatch by 29/10/25

Item Code: K1788.1010004023

Swivel Castor. With Lock. Diameter 100mm. Load 350Kg.

£122.03  Excl VAT £146.44  Inc VAT

Price breaks available

Text

Qty

Dispatch by 29/10/25

Item Code: K1788.1012504021

Swivel Castor. With Lock. Diameter 125mm. Load 350Kg.

£133.63  Excl VAT £160.36  Inc VAT

Price breaks available

Text

Qty

Dispatch by 29/10/25

Item Code: K1788.1012504023

Swivel Castor. With Lock. Diameter 125mm. Load 350Kg.

£137.00  Excl VAT £164.40  Inc VAT

Price breaks available

Text

Qty

Dispatch by 29/10/25

Item Code: K1788.101500502

Swivel Castor. With Lock. Diameter 150mm. Load 500Kg.

£208.64  Excl VAT £250.37  Inc VAT

Price breaks available

Text

Qty

Dispatch by 29/10/25

Item Code: K1788.101600502

Swivel Castor. With Lock. Diameter 160mm. Load 550Kg.

£231.84  Excl VAT £278.21  Inc VAT

Price breaks available

Text

Qty

Dispatch by 29/10/25

Item Code: K1788.102000502

Swivel Castor. With Lock. Diameter 200mm. Load 600Kg.

£271.65  Excl VAT £325.98  Inc VAT

Price breaks available

Text

Qty

Showing products per page

Fixed Castor. Without Lock. Diameter 100mm. Load 350Kg.

Dispatch by 29/10/25

Item Code: K1788.1010004011

£109.09  Excl VAT £130.91  Inc VAT

Price breaks available

Text

Qty

Fixed Castor. Without Lock. Diameter 100mm. Load 350Kg.

Dispatch by 29/10/25

Item Code: K1788.1010004013

£114.12  Excl VAT £136.94  Inc VAT

Price breaks available

Text

Qty

Fixed Castor. Without Lock. Diameter 125mm. Load 350Kg.

Dispatch by 29/10/25

Item Code: K1788.1012504011

£122.12  Excl VAT £146.54  Inc VAT

Price breaks available

Text

Qty

Fixed Castor. Without Lock. Diameter 125mm. Load 350Kg.

Dispatch by 29/10/25

Item Code: K1788.1012504013

£128.47  Excl VAT £154.16  Inc VAT

Price breaks available

Text

Qty

Fixed Castor. Without Lock. Diameter 150mm. Load 500Kg.

Dispatch by 29/10/25

Item Code: K1788.101500501

£172.96  Excl VAT £207.55  Inc VAT

Price breaks available

Text

Qty

Fixed Castor. Without Lock. Diameter 160mm. Load 550Kg.

Dispatch by 29/10/25

Item Code: K1788.101600501

£196.10  Excl VAT £235.32  Inc VAT

Price breaks available

Text

Qty

Fixed Castor. Without Lock. Diameter 200mm. Load 600Kg.

Dispatch by 29/10/25

Item Code: K1788.102000501

£237.43  Excl VAT £284.92  Inc VAT

Price breaks available

Text

Qty

Swivel Castor. Without Lock. Diameter 100mm. Load 350Kg.

Dispatch by 29/10/25

Item Code: K1788.101000401

£119.41  Excl VAT £143.29  Inc VAT

Price breaks available

Text

Qty

Swivel Castor. Without Lock. Diameter 100mm. Load 350Kg.

Dispatch by 29/10/25

Item Code: K1788.101000403

£122.03  Excl VAT £146.44  Inc VAT

Price breaks available

Text

Qty

Swivel Castor. Without Lock. Diameter 125mm. Load 350Kg.

Dispatch by 29/10/25

Item Code: K1788.101250401

£133.63  Excl VAT £160.36  Inc VAT

Price breaks available

Text

Qty

Swivel Castor. Without Lock. Diameter 125mm. Load 350Kg.

Dispatch by 29/10/25

Item Code: K1788.101250403

£137.00  Excl VAT £164.40  Inc VAT

Price breaks available

Text

Qty

Swivel Castor. Without Lock. Diameter 150mm. Load 500Kg.

Dispatch by 29/10/25

Item Code: K1788.10150050

£208.64  Excl VAT £250.37  Inc VAT

Price breaks available

Text

Qty

Swivel Castor. Without Lock. Diameter 160mm. Load 550Kg.

Dispatch by 29/10/25

Item Code: K1788.10160050

£231.84  Excl VAT £278.21  Inc VAT

Price breaks available

Text

Qty

Swivel Castor. Without Lock. Diameter 200mm. Load 600Kg.

Dispatch by 29/10/25

Item Code: K1788.10200050

£271.65  Excl VAT £325.98  Inc VAT

Price breaks available

Text

Qty

Swivel Castor. With Lock. Diameter 100mm. Load 350Kg.

Dispatch by 29/10/25

Item Code: K1788.1010004021

£119.41  Excl VAT £143.29  Inc VAT

Price breaks available

Text

Qty

Swivel Castor. With Lock. Diameter 100mm. Load 350Kg.

Dispatch by 29/10/25

Item Code: K1788.1010004023

£122.03  Excl VAT £146.44  Inc VAT

Price breaks available

Text

Qty

Swivel Castor. With Lock. Diameter 125mm. Load 350Kg.

Dispatch by 29/10/25

Item Code: K1788.1012504021

£133.63  Excl VAT £160.36  Inc VAT

Price breaks available

Text

Qty

Swivel Castor. With Lock. Diameter 125mm. Load 350Kg.

Dispatch by 29/10/25

Item Code: K1788.1012504023

£137.00  Excl VAT £164.40  Inc VAT

Price breaks available

Text

Qty

Swivel Castor. With Lock. Diameter 150mm. Load 500Kg.

Dispatch by 29/10/25

Item Code: K1788.101500502

£208.64  Excl VAT £250.37  Inc VAT

Price breaks available

Text

Qty

Swivel Castor. With Lock. Diameter 160mm. Load 550Kg.

Dispatch by 29/10/25

Item Code: K1788.101600502

£231.84  Excl VAT £278.21  Inc VAT

Price breaks available

Text

Qty

Swivel Castor. With Lock. Diameter 200mm. Load 600Kg.

Dispatch by 29/10/25

Item Code: K1788.102000502

£271.65  Excl VAT £325.98  Inc VAT

Price breaks available

Text

Qty

Showing products per page

{
    "id": "1197",
    "layout_id": "",
    "parent_id": "1187",
    "name": "K1788 - Heavy Duty Steel Plate Swivel & Fixed Castors With Polyurethane Elastomer Tread",
    "slug": "k1788-heavy-duty-steel-plate-swivel-fixed-castors-with-polyurethane-elastomer-tread",
    "meta_title": "K1788 - Heavy Duty Steel Plate Swivel & Fixed Castors With Polyurethane Elastomer Tread",
    "meta_description": "",
    "long_description": "",
    "short_description": "<p><strong>Material:<\/strong><br \/>\r\nHousing, steel plate.<br \/>\r\nWheel tread, high quality polyurethane elastomere.<br \/>\r\nWheel rims, die-cast aluminium.<\/p>\r\n\r\n<p><strong>Version: <\/strong><br \/>\r\nHousing, press-formed.<br \/>\r\nSwivel housing, double-row ball bearings in a swivel head.<br \/>\r\nBall bearing wheel axle bearings.<\/p>\r\n\r\n<p><strong>Note:<\/strong><br \/>\r\nWheel axle bolted.<br \/>\r\nSwivel and fixed castors with mounting plate.<\/p>\r\n\r\n<p><strong>Application:<\/strong><br \/>\r\nHeavy loads can be easily transported using this load handling equipment. The roll and swivel resistance is reduced with this new wheel series designed for intralogistic heavy load applications.<\/p>\r\n\r\n<p><strong>Temperature Range:<\/strong><br \/>\r\n-25 &deg;C to +70 &deg;C.<\/p>\r\n\r\n<div class=\"category-desc-drawings\" style=\"display: flex; justify-content: center; flex-wrap: wrap; gap: 20px; margin-top: 20px;\"><img alt=\"Wheels and Casters.\" src=\"https:\/\/images.shopcdn.co.uk\/82\/5c\/825c26ad8ee1cc529fb089fc02bcb16c\/1024x1024\/webp\/fit?quality=100&compression=100&t=1750760928\" \/><\/div>",
    "active": "1",
    "visible": "1",
    "show_products": "1",
    "order_num": "57",
    "default_sortby": "default",
    "deleted": "0",
    "created": "2025-06-25 09:27:15",
    "updated": "2025-06-25 09:38:34",
    "images": [
        {
            "url": "https:\/\/images.shopcdn.co.uk\/80\/a4\/80a46411b1552b6af21b3e109edf693a\/1024x1024\/webp\/fit?quality=100&amp;compression=100",
            "contain_url": "https:\/\/images.shopcdn.co.uk\/80\/a4\/80a46411b1552b6af21b3e109edf693a\/256x256\/webp\/fit?quality=100&amp;compression=100",
            "crop_url": "https:\/\/images.shopcdn.co.uk\/80\/a4\/80a46411b1552b6af21b3e109edf693a\/256x256\/webp\/fit?quality=100&amp;compression=100",
            "original_url": "https:\/\/images.shopcdn.co.uk\/80\/a4\/80a46411b1552b6af21b3e109edf693a\/1748x1240\/webp\/resize?quality=100&amp;compression=100"
        }
    ],
    "is_parent_category": false,
    "is_product_group": false,
    "parent_category_title": "Wheels & Castors",
    "parent_category_url": "wheels-casters",
    "path": "Standard Parts > Wheels &amp; Castors > K1788 - Heavy Duty Steel Plate Swivel &amp; Fixed Castors With Polyurethane Elastomer Tread",
    "path_list": [
        "Standard Parts",
        "Wheels &amp; Castors",
        "K1788 - Heavy Duty Steel Plate Swivel &amp; Fixed Castors With Polyurethane Elastomer Tread"
    ],
    "selectedTags": [],
    "availableProducts": {
        "key": "available",
        "doc_count": 21,
        "stockLevel": {
            "untracked": 21,
            "in_stock": 0
        }
    },
    "unavailableProducts": {
        "key": "unavailable",
        "doc_count": 0
    },
    "product_attributes": [
        "Load Kg_1",
        "A",
        "B",
        "B1",
        "B2",
        "B3",
        "D",
        "D1",
        "H",
        "L",
        "L1",
        "L2",
        "Version"
    ]
}
