Item Code: K1492.04X10

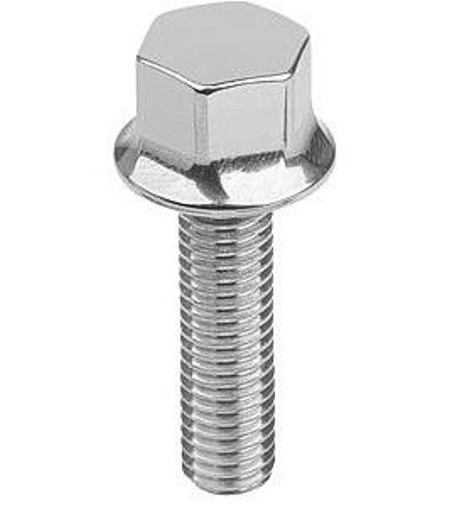

Hygienic Hex Head Bolt. M4x10mm. 316 Stainless Steel.

Item Code: K1492.04X10

Hygienic Hex Head Bolt. M4x10mm. 316 Stainless Steel.

Product description:
A cavity-free seal can only be assured in combination with the Hygienic USIT® seal and shim washer. The polished screws have a surface finish of Ra < 0.8 µm.
Internal transition areas with a minimum radius of 3 mm are also provided, preventing dirt particles from adhering to the components and ensuring easy cleaning.

Hexagon head bolts with collar for Hygienic USIT® seal and shim washers are ideal for fastening in sterile areas and also conform to EHEDG regulations, something that is confirmed with the relevant certificate.

Material:
Stainless steel 1.4404.

Version:
Polished.

Note:
The EHEDG certificate is only valid when a specifically matched Hygienic USIT® seal and shim washer K1491 is used.

Suggested Accessories:
Hygienic USIT® seal and shim washer K1491.
Hexagon cap nut with collar K1493.
Sockets with plastic inserts K1361.
Ring/open-end spanner with protective caps K1362.

Quick Links

Dispatch by 09/06/25

A
M4
10
10,8
7
4
0,45
6,9

£3.19  ea. Excl VAT £3.83  ea. Inc VAT

This product is currently out of stock. Your item will be shipped when it is back in stock.

Qty

Product Wishlist & Compare Placeholder

Qty Price per item Savings
30 + £2.93 8%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify



modal placeholder

Quick Links



Product description:
A cavity-free seal can only be assured in combination with the Hygienic USIT® seal and shim washer. The polished screws have a surface finish of Ra < 0.8 µm.
Internal transition areas with a minimum radius of 3 mm are also provided, preventing dirt particles from adhering to the components and ensuring easy cleaning.

Hexagon head bolts with collar for Hygienic USIT® seal and shim washers are ideal for fastening in sterile areas and also conform to EHEDG regulations, something that is confirmed with the relevant certificate.

Material:
Stainless steel 1.4404.

Version:
Polished.

Note:
The EHEDG certificate is only valid when a specifically matched Hygienic USIT® seal and shim washer K1491 is used.

Suggested Accessories:
Hygienic USIT® seal and shim washer K1491.
Hexagon cap nut with collar K1493.
Sockets with plastic inserts K1361.
Ring/open-end spanner with protective caps K1362.

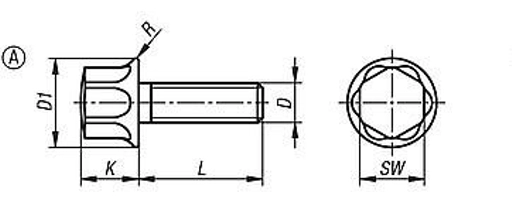

FormA
DM4
L10
D110,8
SW7
D24
R0,45
K6,9
Thread SizeM4
Length10mm
MaterialStainless Steel
